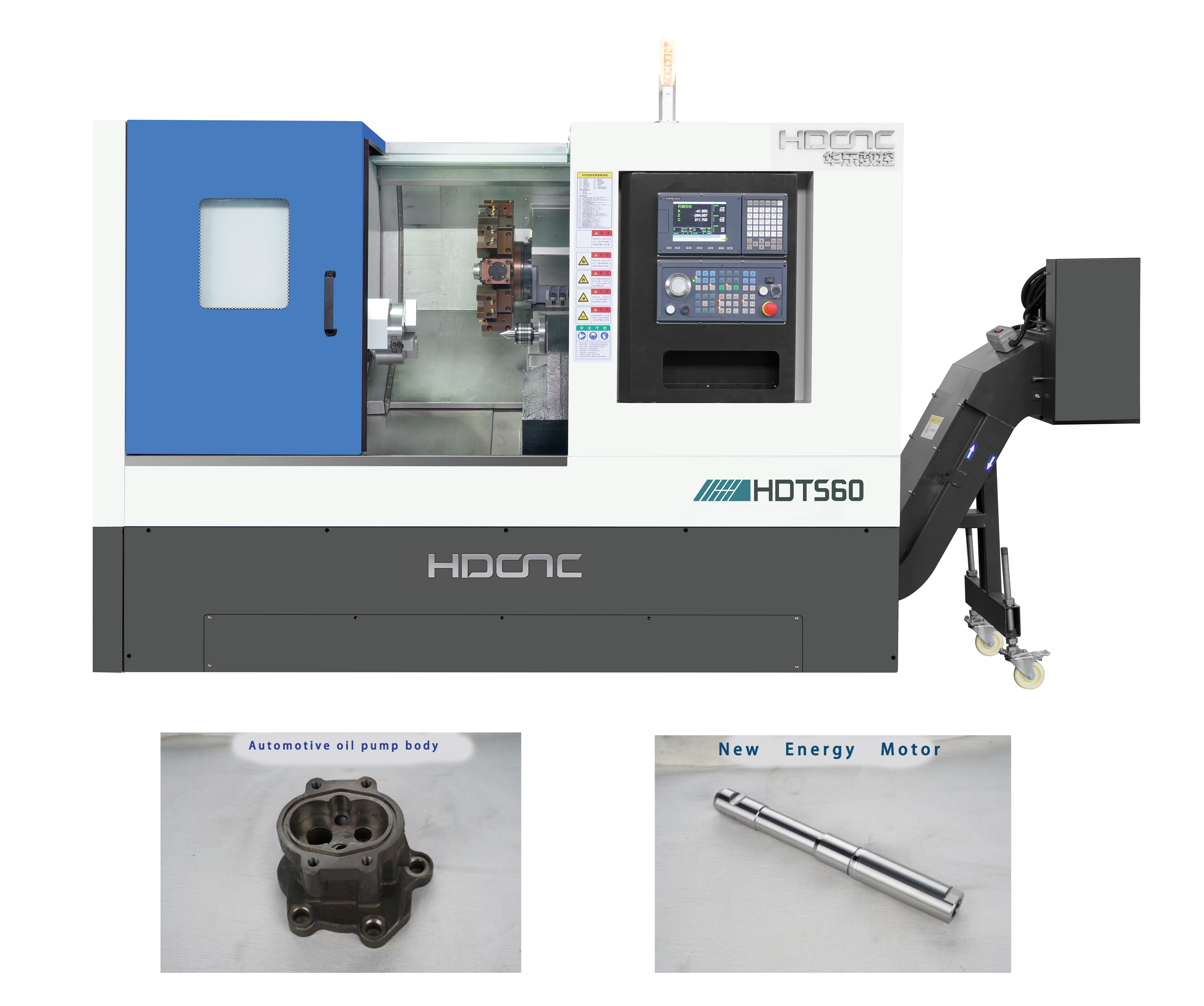

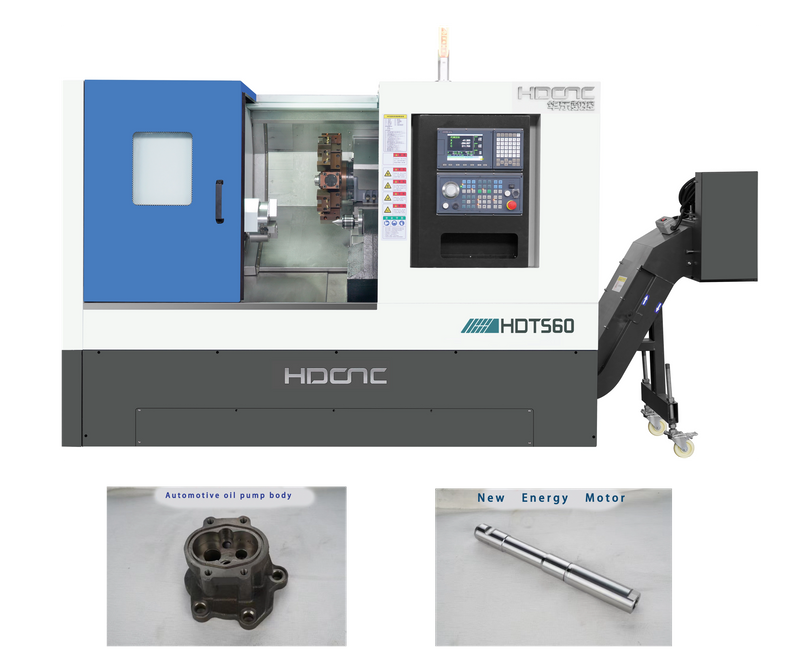

HDT Series Fully Functional Precision CNC Lathe

Structural features:

High speed, high precision, and high efficiency

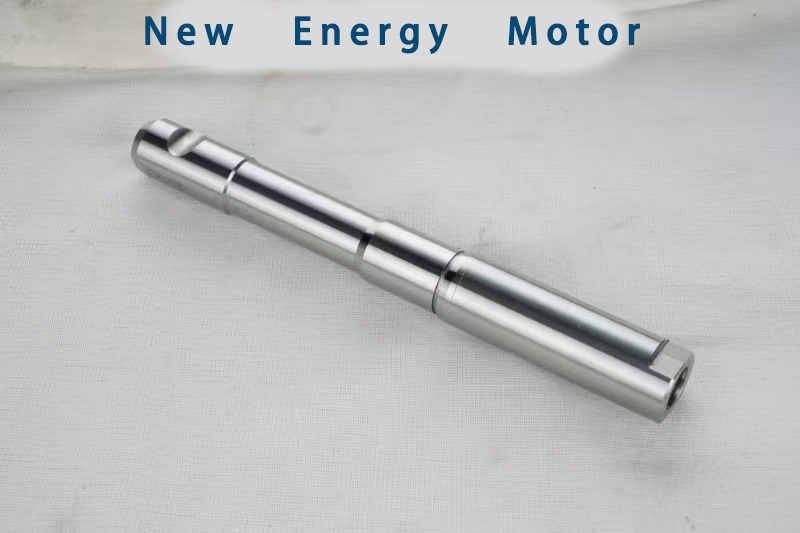

The HDT series fully functional CNC horizontal lathe is designed based on European and American technology, combined with our company's years of experience in designing horizontal CNC lathes, and in response to market and development needs. This machine tool can process shaft and disc parts, turn threads, arcs, cones, and the inner and outer surfaces of rotating bodies, and efficiently, massively, and accurately process rotating body parts.

Performance characteristics：

High speed and efficiency

The feed axis of this series of machine tools can move at a fast speed of up to 25M/min, and can be equipped with either an 8-station or a 12 station servo turret to improve tool changing speed and achieve higher production efficiency.

high-precision

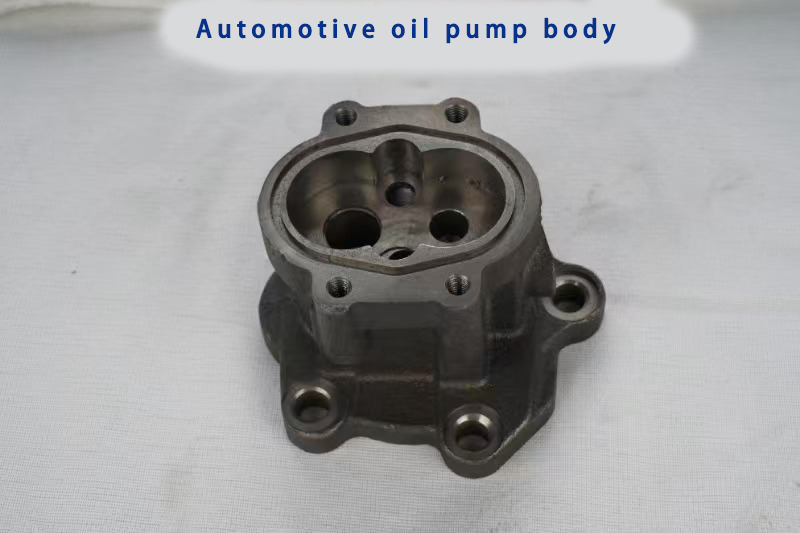

This series of machine tools can achieve an outer circle accuracy of IT6-IT7 levels. As a universal machine tool, it is particularly suitable for efficient, large-scale, and high-precision machining of rotating parts in industries such as automobiles, machine tools, and construction machinery.

Machine tool accuracy maintains high stability

This series of machine tools adopts a 30 ° angled integral bed, and the bed material is HT300. Cast using resin sand technology, with a reasonable layout of internal reinforcement. The guide rail adopts imported linear roller guide rail, which improves feed accuracy, reduces friction resistance, has good rigidity, resists vibration, and has high deformation ability, allowing users to achieve high machining accuracy.

The whole machine has strong rigidity and can be subjected to strong turning

This series of machine tools uses a single spindle spindle box and an integral spindle unit. The machine tool spindle is equipped with a high torque servo motor drive.
