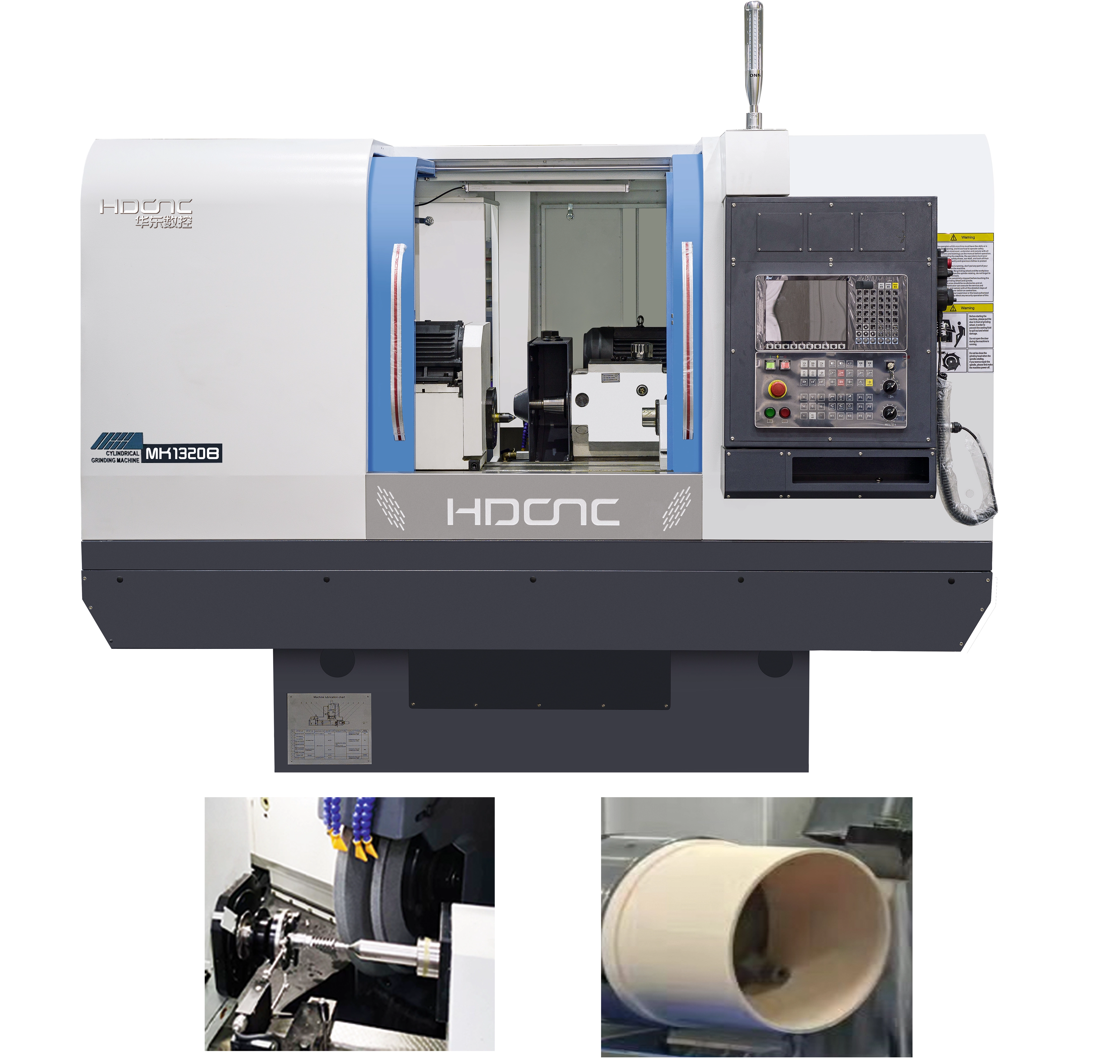

Description | Unit | MK(S)1320B |
General Capacity | ||
Max.length grinding(O.D) | mm | 500/750 |
Center height | mm | 135 |
Dia.grinding(O.D) | mm | 8-200 |
Max. weight of workpiece | kg | 50 |
Workhead | ||
Center taper | MT | 4 |
Spindle speed(stepless) | r/min | 26-260(60-600) |
Wheelhead | ||
Max. dimension of wheel(O.D*W*I.D) | mm | 400*50*203 |
Wheel peripheral velocity | m/s | 35(50) |
Min.set unit | mm | 0.0001 |
Worktable | ||
| Max. swiveling angle of table | ° | 5(500) 3(750) |
° | 9 | |
Tailstock | ||
Center taper | MT | 4 |
Quill manually travel | mm | 30 |
Electric system | ||
CNC system | Standard :HNC808DG Optionals:Siemens Fanuc 0I | |
Wheelhead motor power | Kw | 4(11) |
Workhead motor power | Kw | 1.1 |
Machining Accuracy | ||
Roundness | μm | 2(1.5） |
Cylindricity | μm | 5 |
Roughness | μm | Ra 0.2 |
Machine | ||
Weight | kg | MK（S）1320Bx500：3000/5500 MK（S）1320Bx750：:3500/6000 |
Package dimension(L*W*H) | cm | 285*200*228 340*200*228 |
Description | Unit | MK（S）1332*1000 /1500 | |
General Capacity | |||
Max.length grinding(O.D) | mm | 1000/1500 | |
Center height | mm | 180 | |
Dia.grinding(O.D) | mm | 8-320 | |
Max. weight of workpiece | kg | 150 | |
Workhead | |||
Center taper | MT | 5 | |
Spindle speed(stepless) | r/min | 19-190（35-350） | |
Wheelhead | |||
Max. dimension of wheel(O.D*W*I.D) | mm | 600*75*305（600*100*203） | |
Wheel peripheral velocity | m/s | 35（50） | |
Min.set unit | mm | 0.0001 | |
Worktable | |||
Max. swiveling angle of table | CW | ° | 3 |
CCW | ° | 7(1000) 6(1500) | |
Tailstock | |||
Center taper | MT | 4 | |
Quill manually travel | mm | 30 | |
Electric system | |||
CNC system | Standard :HNC808DG Optionals:Siemens Fanuc 0I | ||
Wheelhead motor power | Kw | 11 | |
Workhead motor power | Kw | 1.5 | |
Machining Accuracy | |||
Roundness | μm | 2.5 | |
Cylindricity | μm | 8 | |
Roughness | μm | Ra 0.2 | |
Machine | |||
Weight | kg | 4000(1000) 4800(1500) | |
Package dimension(L*W*H) | cm | 425*225*228(1000) 545*225*228(1500) | |
Description | Unit | MKE1432*1000 /1500 |
| General Capacity | mm | |
| Distance between center | mm | 1000/1500 |
| Center height | mm | 180 |
| Dia.ground | mm | 8-320 |
| Max. weight of workpiece | kg | 150 |
| Workhead | ||
| center taper | 4 | |
| spindle speed (stepless) | rpm | 26-260 |
| Wheelhead | ||
| Max. dimension of wheel(OD*W*ID) | mm | 400*50*203 |
| Wheel peripheral velocity | m/s | 35 |
| Min set unit | mm | 0.0001 |
| Worktable | ||
| Max.swiveling angle of table(CW) | degree | 3 |
| Max.swiveling angle of table(CCW) | degree | 7（1000）6（1500） |
| Tailstock | ||
| Center taper | 4 | |
| Quill travel | mm | 30 |
| Electrical system | ||
| Wheelhead motor power | KW | 5.5 |
| Workhead motor power | KW | 1.5 |
| Machining accuracy | ||
| Roundness | μm | 3 |
| Cylindricity | μm | 8 |
| Roughness | μm | Ra0.32 |
| Gross weight | KG | 3800（1000）4000（1500） |
| Packing dimension | cm | 326*190*205（1000） 426*190*205（1500） |
Description | Unit | MKE1350 | |
General Capacity | |||
Max.length grinding(O.D) | mm | 1500/2000/3000/4000 | |
Center height | mm | 270 | |
Dia.grinding(O.D) | mm | 25-500 | |
Max. weight of workpiece | kg | 1000 | |
Workhead | |||
Center taper | MT | 6 | |
Spindle speed(stepless) | r/min | 10-100 | |
Wheelhead | |||
Max. dimension of wheel(O.D*W*I.D) | mm | 750*75*305 | |
Wheel peripheral velocity | m/s | 35 | |
Min.set unit | mm | 0.0001 | |
Worktable | |||
Max. swiveling angle of table | CW | ° | 3(1500) 2(2000/3000) 1(4000) |
CCW | ° | 6(1500) 5(2000) 3(3000) 2(4000) | |
Tailstock | |||
Center taper | MT | 6 | |
Quill manually travel | mm | 70 | |
Electric system | |||
CNC system | Standard :HNC808DG Optionals:Siemens Fanuc 0I | ||
Wheelhead motor power | Kw | 15 | |
Workhead motor power | Kw | 4 | |
Machining Accuracy | |||
Roundness | μm | 2.5(1500) 3(2000/3000/4000) | |
Cylindricity | μm | 8(1500/2000/3000) 12(4000) | |
Roughness | μm | Ra 0.3 | |
Machine | |||
Weight | t | 10(1500) 11(2000) 13(3000) 17(4000) | |
Package dimension(L*W*H) | cm | 543*225*210(1500) 583*225*210(2000) 796*225*210(3000) 996*225*210(4000) | |

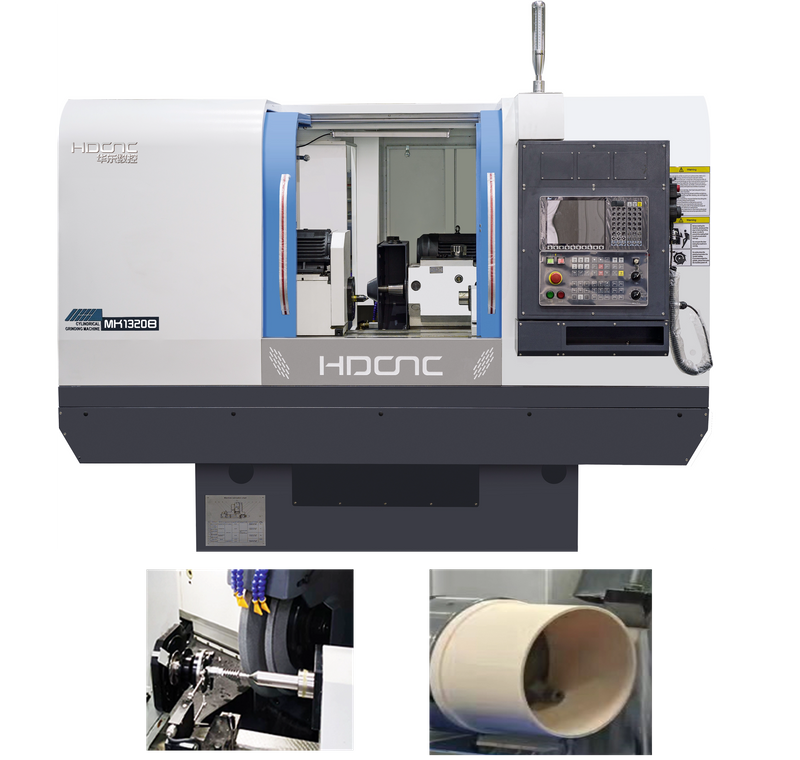

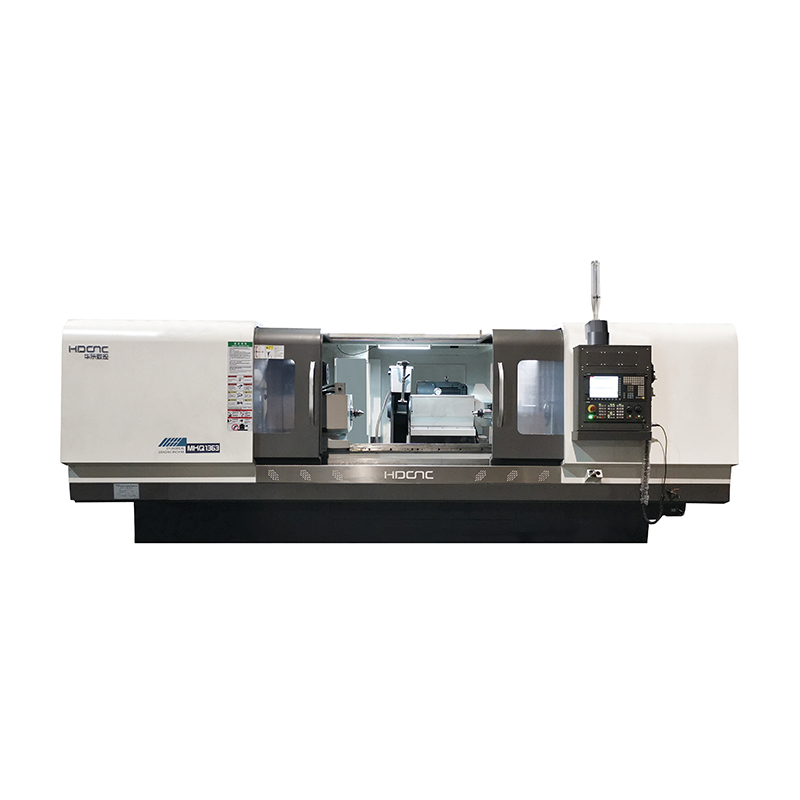

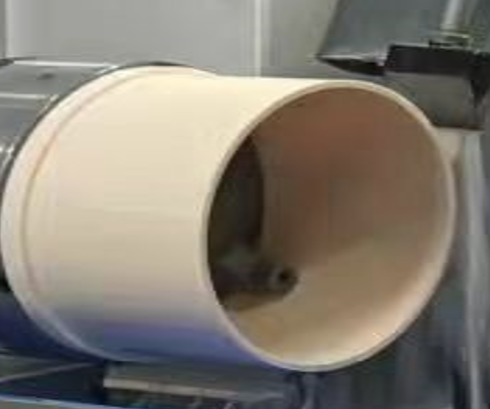

2 axis linkage CNC cylindrical grinder,standard with HNC808D system, Siemens or Fanuc as optional.
High strength and low stress of HT300 pearlitic cast iron material, with high rigidity and precision stability
Machine tool control system with friendly interface and perfect equipment fault alarm and diagnosis function
table travels on one V,one flat guideway
Stepless workhead help choose suitable speed
Hydraulically driven longitudinal traversal
machine table swivels for easy taper grinding
Advanced Hydrostatic Lubrication System
hydraulically controlled tailstock as optional
MKS model is with high linear speed wheelhead which can help improve the processing efficiency.
