| Quantity: | |
|---|---|
Auto parts
Machine manufacturer

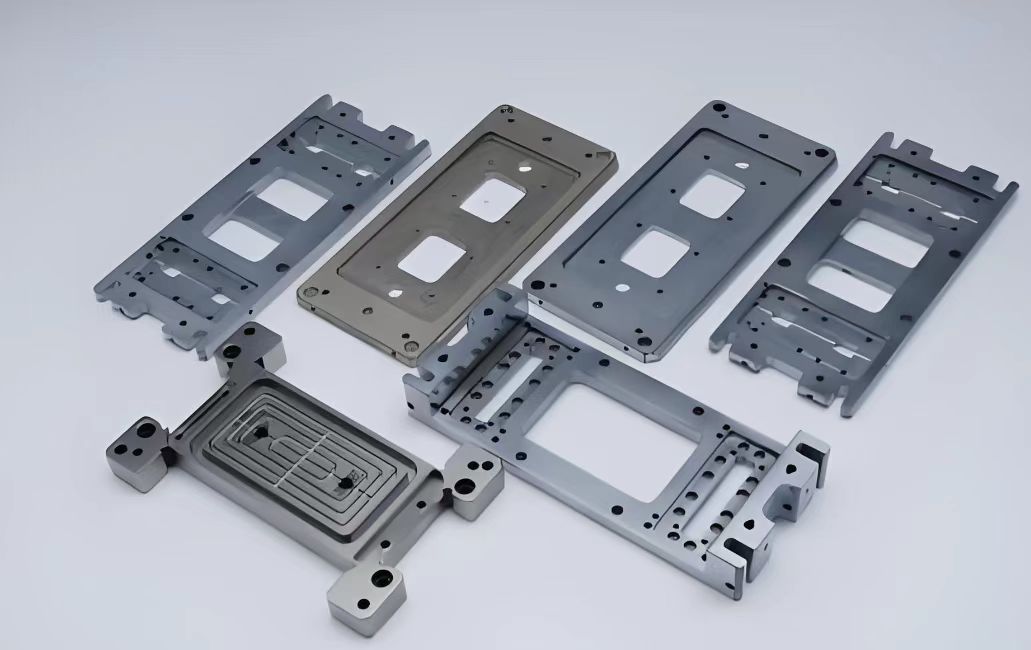

Mould
| Cooltant system | Hydraulic station | Lubrication system | Working light | Leveling wedges |
| Foundation screw | Wheel flange | Wheel balance arbor | Tool and tool box | magnetic chuck, |
| standard wheel. | PLC controller | Touched screen | Operation manual | foundation screw |
dust collection device | paper filter | magetic separator | wheel balance stand | Y Z axis DRO |
| Description | Unit | SG2050AHR SG2050AHD | SGA2550AHR SGA2550AHD | SGA3063AHR SGA3063AHD |
Table size(L*W) | mm | 200*460 | 250*500 | 635*305 |
Distance from spindle center to worktable | mm | 450 | 450 | 580 |
Max. loading of table(including magentic chuck) | 120 | 180 | 270 | |
Magnetic chuck size | mm | 200*460 | 250*500 | 300*600 |
Wheel size(OD*Width*ID) | mm | 200*20*31.75 | 200*20*31.75 | 350*40*127 |
Spindle speed(stepless) | r/min | 2850 | 2850 | 1450 |
Worktable speed | m/min | 7-23 | 7-23 | 7-23 |
Vertical auto feed | mm/stoke | 0.005/0.01/0.02/0.03/0.04/0.05 | ||
Vertical feed rapid speed (motor) | mm/min | 460 | ||
Transverse feed handwheel per division | mm | 0.02 | ||
Transverse auto feed | mm/min | 0.1-8 | ||
Transverse rapid feed | mm/min | 990 | ||
Spindle motor | KW | 1.5 | 2.2 | 5.5 |
Hydraulic motor | KW | 0.75 | 2.2 | |
Cooltant motor | KW | 0.04 | 0.125 | |
Elevating servo motor | KW | 0.25(AHR) 0.5(AHD) | ||
Transverse feed motor | KW | 0.04 | ||
Total rated power | KW | 3 | 3.7 | 9 |
Surface roughness | μm | Ra0.63 | ||
Description | Unit | SGA30100AHR SGA30100AHD | SGA4080AHR SGA4080AHD | SGA40100AHR SGA40100AHD |
Table size(L*W) | mm | 305*1050 | 406*813 | 406*1020 |
Distance from spindle center to worktable | mm | 580 | ||
Max. loading of table(including magentic chuck) | 400 | 500 | 600 | |
Magnetic chuck size | mm | 300*1000 | 400*800 | 400*1000 |
Wheel size(OD*Width*ID) | mm | 350*40*127 | 350*40*127 | 350*40*127 |
Spindle speed(stepless) | r/min | 1450 | 1450 | 1450 |
Worktable speed | m/min | 7-23 | 7-23 | 7-23 |
Vertical auto feed | mm/stoke | 0.005/0.01/0.02/0.03/0.04/0.05 | ||
Vertical feed rapid speed (motor) | mm/min | 460 | ||
Transverse feed handwheel per division | mm | 0.02 | ||
Transverse auto feed | mm/min | 0.1-8 | ||
Transverse rapid feed | mm/min | 990 | ||
Spindle motor | KW | 5.5 | 5.5 | 5.5 |
Hydraulic motor | KW | 2.2 | ||
Cooltant motor | KW | 0.125 | ||
Elevating servo motor | KW | 0.25(AHR) 0.5(AHD) | ||
Transverse feed motor | KW | 0.04 | ||
Total rated power | KW | 9 | ||
Surface roughness | μm | Ra0.63 | ||

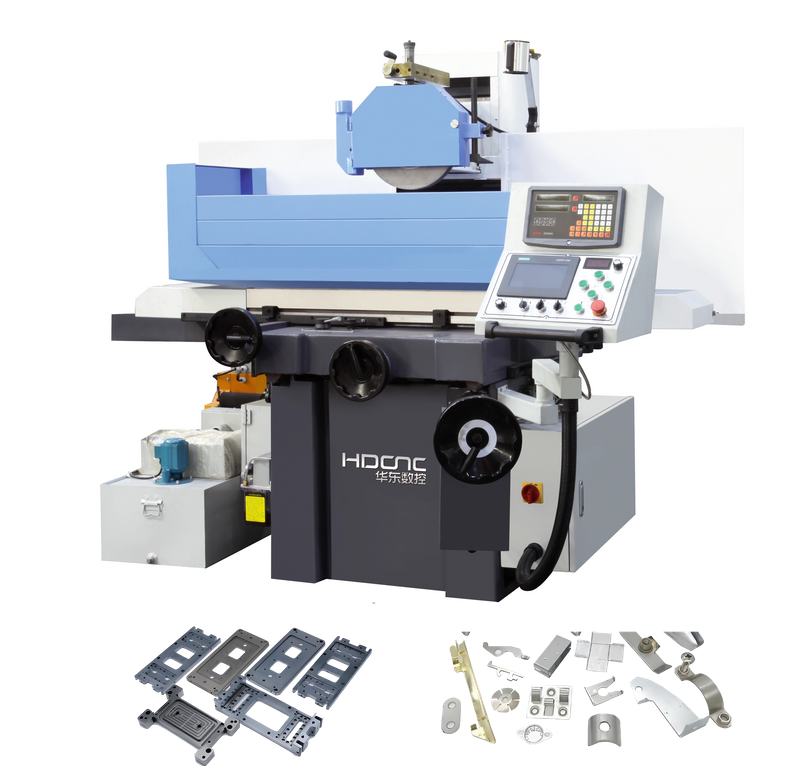

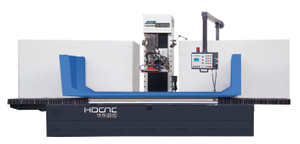

High strength cast iron foundation
Machine longitudinal moves hydraulically or manually;
Transverse moves manually or frequency motor drives;
Vertical drives by servo motor,PLC controller realizing auto feed(AHD model)
Vertical drives by rapid motor(AHR model)
Column adopts steel guide rail to improve rigidity
Grinding head adopts high precision rolling bearing spindle set, sleeve mounted, which can achieve high precision and high finish grinding
