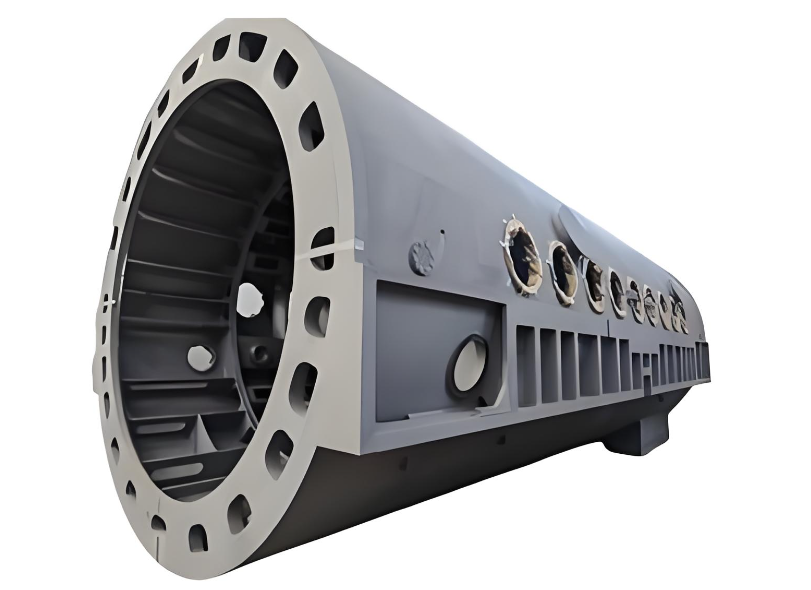

Petroleum machinery

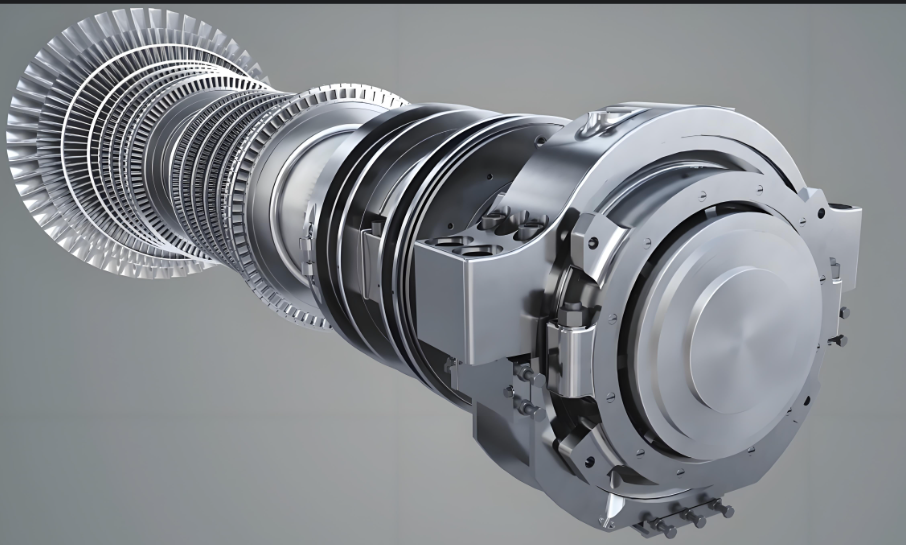

High voltage electrical
Heavy truck fittings
Construction machinery
No | Item | QTY | Remark |
1 | Control system | 1 | FANUC Oi-MF Plus/SINUMERIK 828D |
2 | X/Y/Z axis full closed loop control | 1 | |
3 | Handheld operating unit | 1 | |
4 | Electrical box air conditioner | 1 | |
5 | automatic lubrication system | 1 | |
6 | Spindle oil cooling system | 1 | |
7 | Three-color light | 1 | |
8 | Spindle blower | 1 | |
9 | Rail guard | ||
10 | Chip removal system | 1 | |
11 | lighting device | 1 | |
12 | Tool external cooling system | ||
13 | Base adjustment shims and fasteners | 1 |
No | Item | Brand | Remark |
1 | Automatic 90° angle head | TAIWAN | |
2 | Automatic extension head | TAIWAN | |
3 | Automatic 90° universal head | TAIWAN | |
4 | Accessory head bracket | ||
5 | Spindle center water outlet | ||
6 | ATC | TAIWAN | |
9 | Tool measuring device | Renishaw | |
10 | Workpiece measuring device | Renishaw | |
11 | X/Y/Z axis full closed loop control |

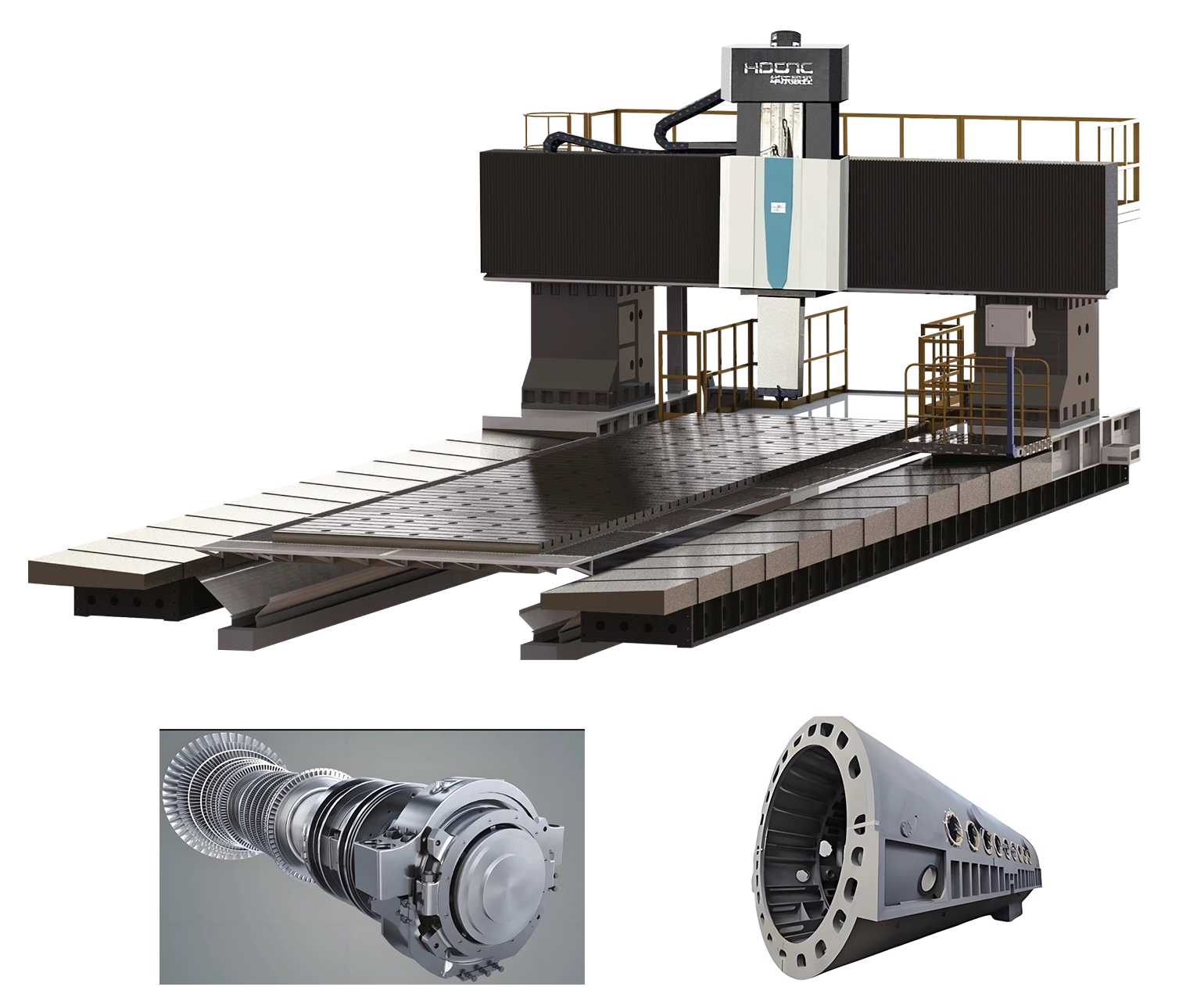

MODEL | Unit | XKW2642 | XKW2650 | XKW2663 | XKW2670 |
Spindle taper | BT50 | BT50 | BT50 | BT50 | |
Spindle speed | rpm | 4000/3500 | 3500/2500 | 3500/2500 | |
Spindle motor | kW | 30/36 | 30/36(44/54) | ||
Table size | mm | 3000×10000/12000/14000/ 16000/18000/20000 | 4000×10000/12000/14000/ 16000/18000/20000 | 5000×10000/12000/14000/ 16000/18000/20000 | 6000*10000/12000/14000/16000/18000/20000 |
Table travels (X,Y,Z) | mm | 10800/12800/14800/16800/18800/20800 | |||
Gantry effective width | mm | 4200 | 5000 | 6300 | 7000 |
Table load | Kg/㎡ | 10000 | 10000 | ||
Rapid feed (X,Y,Z) | m/min | 8/10/10 | |||
Tool station (ATC) | T | 24/32/40/60 | 24/32/40/60 | ||
Overall dimensions | cm | 1700/1900/2100/2300 /2500/2700x800x680 | 1700/1900/2100/2300 /2500/2700x900x680 | 1700/1900/2100 /2300/2500/2700x1050x750 | 1700/1900/2100/2300/ 2500/2700×1150*750 |
Weight | T | 125/140/155/170/185/200 | 140/160/180/200/220/240 | 160/180/200/220/240/260 | |
German technology!
Single side double pinion and rack electronic backlash elimination, gantry moving synchronization accuracy is high!
Spindle speed change adopts F gearbox and self-made gearbox combination, improve the output torque of machine tool spindle, suitable for heavy cutting.
Square pillow section 450mm×450mm/500mmx500mm, adopts double servo drive, stroke 1500mm/2000mm, good rigidity, with heavy load spindle unit, can be heavy cutting.
Petroleum machinery
High voltage electrical
Heavy truck fittings
Construction machinery
No | Item | QTY | Remark |
1 | Control system | 1 | FANUC Oi-MF Plus/SINUMERIK 828D |
2 | X/Y/Z axis full closed loop control | 1 | |
3 | Handheld operating unit | 1 | |
4 | Electrical box air conditioner | 1 | |
5 | automatic lubrication system | 1 | |
6 | Spindle oil cooling system | 1 | |
7 | Three-color light | 1 | |
8 | Spindle blower | 1 | |
9 | Rail guard | ||
10 | Chip removal system | 1 | |
11 | lighting device | 1 | |
12 | Tool external cooling system | ||
13 | Base adjustment shims and fasteners | 1 |
No | Item | Brand | Remark |
1 | Automatic 90° angle head | TAIWAN | |
2 | Automatic extension head | TAIWAN | |
3 | Automatic 90° universal head | TAIWAN | |
4 | Accessory head bracket | ||
5 | Spindle center water outlet | ||
6 | ATC | TAIWAN | |
9 | Tool measuring device | Renishaw | |
10 | Workpiece measuring device | Renishaw | |
11 | X/Y/Z axis full closed loop control |

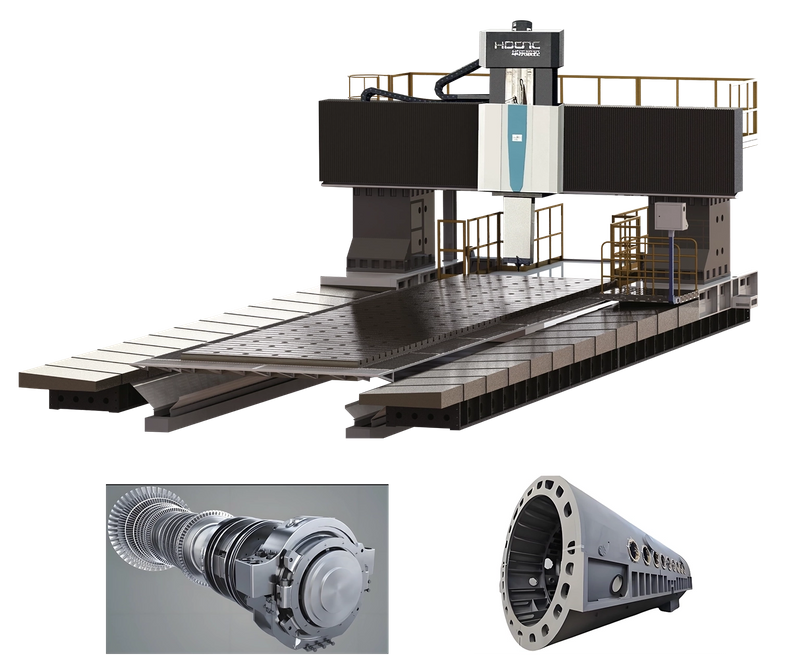

MODEL | Unit | XKW2642 | XKW2650 | XKW2663 | XKW2670 |
