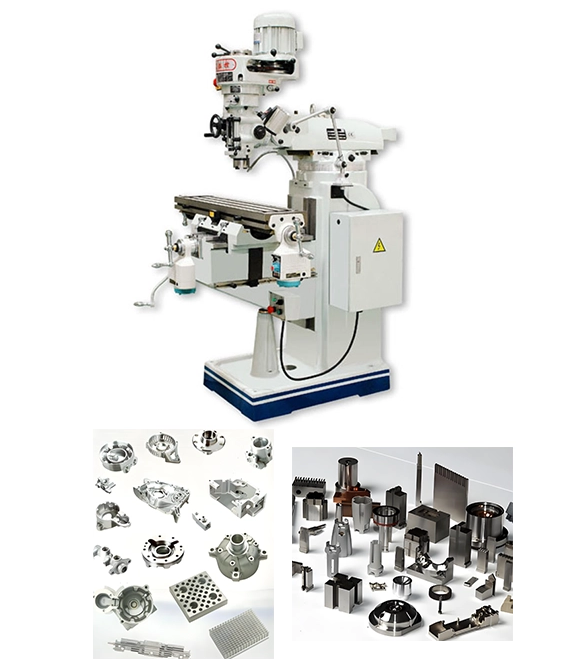

MODEL | X6323A | X6323B | |
Table size | 230×1067 (9"×42") 230×1246 (9"×49") | ||
Long travel | 650mm 840mm | ||
Cross travel | 305mm | ||
Vertical travel | 400mm | ||
T-slot No. and size | 3×16 | ||
Ram travel | 312mm | ||
Distance from spindle nose to table surface | 0~415mm | ||
Spindle hole taper | (standard): R8 (optional): ISO30 / ISO40 | ||
Spindle travel | 127mm | ||
Spindle speed | Standard: 16 Step Speed 50HZ: 65~4500 60HZ: 80~5440 | ||
Optional: Variable 65~4200 | |||
Auto. quill feed | Three steps: 0.04 ( 0.0015" ) / 0.08 ( 0.003" ) / 0.15 ( 0.006" ) mm/revolution | ||
Spindle motor | 2.25KW/3PH | ||
Head swivel | 90° | ||
Head tilting | 45° | ||
Package Dimension | One set package | 1400×1476×2030mm | |
Two sets package | 1450×1570×2080 mm | ||
Three sets package | 1450×2180×2080 mm | ||
Gross Weight | 1000Kg | ||
MODEL | X6325A | X6325 | X6325D | |
Table size | 254×1270 (10"×50") 254×1370 (10"×54") | |||
Long travel | 810mm 910mm | 840mm 940mm | ||
Cross travel | 380mm | 400mm | ||
Vertical travel | 400mm | |||
T-slot No. and size | 3×16 | |||
Ram travel | 470mm | |||
Distance from spindle nose to table surface | 0~400mm | |||
Spindle hole taper | (standard): R8 (optional): ISO30 / ISO40 | (standard): ISO40 | ||
Spindle travel | 127mm | |||
Spindle speed | Standard: 16 Step Speed 50HZ: 65~4540 60HZ: 80~5440 | |||
Optional: Variable 65~4200 | ||||
Auto. quill feed | Three steps: 0.04 ( 0.0015" ) / 0.08 ( 0.003" ) / 0.15 ( 0.006" ) mm/revolution | |||
Spindle motor | 2.25KW/3PH | 3.75KW/5HP | ||
Head swivel | 90° | |||
Head tilting | 45° | |||
Package Dimension | One set package | 1516×1550×2080mm | ||
Two sets package | 1650×1750×2170mm | |||
Three sets package | 1650×2285×2235mm | |||
Gross Weight | 1250Kg | 1400kg | ||
MODEL | X6330A | X6330 | |
Table size | 305×1370 (12"×54") 305×1500 (12"×59") | ||
Long travel | 870mm 1000mm | ||
Cross travel | 360mm | ||
Vertical travel | 380mm | ||
T-slot No. and size | 3×16 | ||
Ram travel | 500mm | ||
Distance from spindle nose to table surface | 0~350mm | ||
Spindle hole taper | (standard): ISO40 | ||
Spindle travel | 127mm | ||
Spindle speed | Standard: 16 Step Speed 50HZ: 65~4540 60HZ: 80~5440 | ||
Optional: Variable 60~3600 | |||
Auto. quill feed | Three steps: 0.04 ( 0.0015" ) / 0.08 ( 0.003" ) / 0.15 ( 0.006" ) mm/revolution | ||
Spindle motor | 3.75KW/3PH | ||
Head swivel | 90° | ||
Head tilting | 45° | ||
Package Dimension | One set package | 1566×1650×2080mm | |
Two sets package | 1720×1800×2175mm | ||
Gross Weight | 1500Kg | ||
MODEL | X6333 | |
Table size | 330×1370 (13"×54") 330×1500 (13"×59") | |
Long travel | 820mm 950mm | |
Cross travel | 360mm | |
Vertical travel | 460mm | |
T-slot No. and size | 3×16 | |
Ram travel | 500mm | |
Distance from spindle nose to table surface | 0~450mm | |
Spindle hole taper | (standard): ISO40 | |
Spindle travel | 127mm | |
Spindle speed | Standard: 16 Step Speed 50HZ: 65~4540 60HZ: 80~5440 | |
Optional: Variable 60~3600 | ||
Auto. quill feed | Three steps: 0.04 ( 0.0015" ) / 0.08 ( 0.003" ) / 0.15 ( 0.006" ) mm/revolution | |
Spindle motor | 3.75KW/3PH | |
Head swivel | 90° | |
Head tilting | 45° | |
Package Dimension | One set package | 1516×1550×2080mm |
Two sets package | 1650×1750×2170mm | |
Gross Weight | 1800Kg | |
| manual pump | draw bar | tools and toolbox | electric box | working lamp |
Oil collecting plate
DRO
Power feed
clamping kits
Cooltant system
plastic splash guard
gear type power feed
machine vise
lifting motor
variable speed head
auto pump
slotting head
All the slide way and table surface have been hardened
The slide way on the saddle is lined with TF wearable material both X axis and Y axis
The slide way have been precision scraped by hand，Which could keep high precision and smooth moving
XYZ axis screws are made in Taiwan by best manufacturer.
Milling head is imported from Taiwan
