1. ZF gear box is standard for direct spindle,automatic constant temperature cooling circulation system.The spindle has two gears, with high speed and torque up to 770/910nm;;
2. The machine foundation parts after optimization design,bed,column, saddle, spindle box, worktable and other key componentsusinghigh quality high strength casting, the machine has good rigidity and Vibration resistance;
3. Adopt 8 Sided Quenched Fully Surrounded Square Ram to ensure Z feed rigidity,suitable for strong cutting;
4. Z axis standard with 1000mm/1250mm ultra long travel,wide processing range;.
5. X and Y axis adopt imported 55 specification heavy-duty roller guide with high precision,and cross beam linear quide is vertically orthogonal arrangement,with strong loading capacity
6. Three axis adopts imported large diameter precision ball screw, with strong feed rigidity and high positioning accuracy
7. Z-axis adopts an independent lubricating oil recovery systemwithout manual oil discharge.
8. Ram with balance cylinder Make higher Z axis speed..

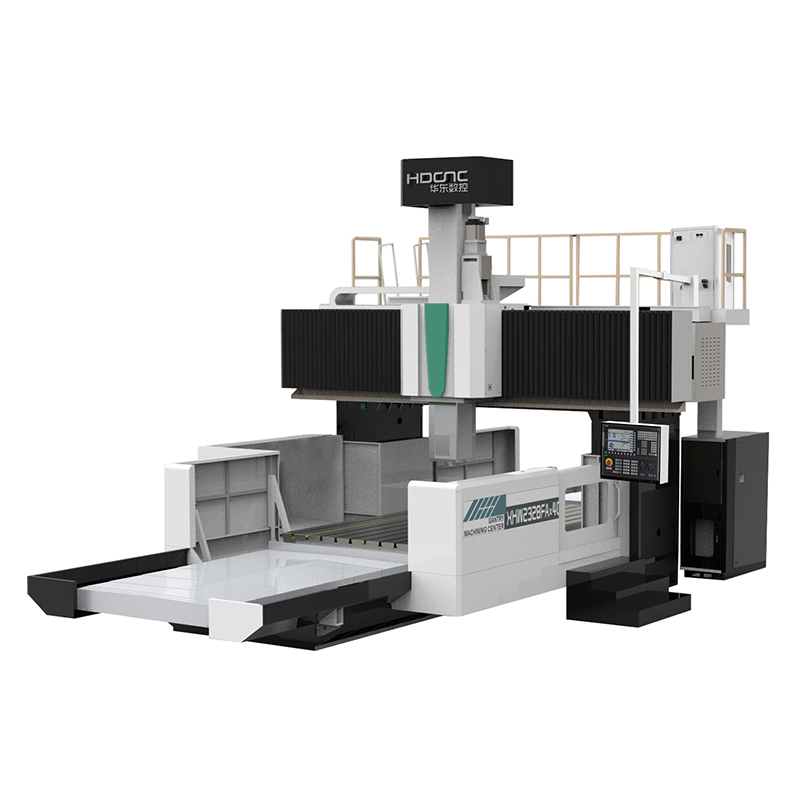

The machine is mainly used for flat grinding, surface and hole processing. It is widely used in the rough and finish machining of various plate, box, frame and other complex parts in machinery manufacturing industry. The machine can realize the vertical boring and milling head transverse (Y axis), vertical movement (Z axis) and vertical movement of the table (X axis) three-axis linkage. Can be milling, boring, drilling, rigid tapping, reamed hole, Huo hole and other multi-process processing.
Direct spindle with gearbox ,simple cover, square ram, auto chip conveyor, LED light and warning light, workpiece clean and air gun, machine bed integral chip conveyor,spindle cooling.
ATC
Tool setting gauge
Linear scale
Spindle center water cooling
Description | Unit | XKW2322FA*30 | XKW2328FA*40 | XKW2328FA*60 |
Gantry width | mm | 2200 | 2800 | |
X axis travel | mm | 3000 | 4200 | 6200 |
Y axis travel | mm | 2400 | 3000 | |
Z axis travel | mm | 1000 | 1250 | |
Spindle nose to table surface | mm | 250-1250 | 250-1500 | |
Table size(w*L) | mm | 1800*3000 | 2300*4000 | 2300*6000 |
Table loading weight | kg | 6000 | 14000 | 18000 |
Table T slot(No.-width*distance) | mm | 9-22*180 | 11-28*200 | |
Ram type | Square ram 400*400 | |||
Spindle speed | rpm | 6000 | 4000 | |
Spindle power | kw | 22/26 | ||
Spindle drive form | ZF gear box | |||
Spindle taper | BT50 | |||
ATC(Optional) | ||||
ATC capacity | 24/32/40/60 | |||
Max. tool diameter (Full/empty) | mm | φ115/φ200 | ||
Max. tool length | mm | 300 | ||
Max. tool weight | kg | 18 | ||
Power capacity | kw | 60 | ||
Machine weight | kg | 35000 | 45000 | 50000 |
Machine overall size(L*W*H) | cm | 900*600*550 | 1100*650*550 | 1500*650*550 |
CNC control system | Fanuc/Siemens | |||
