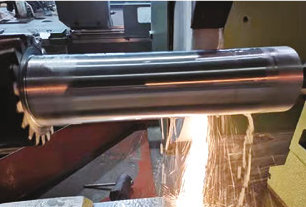

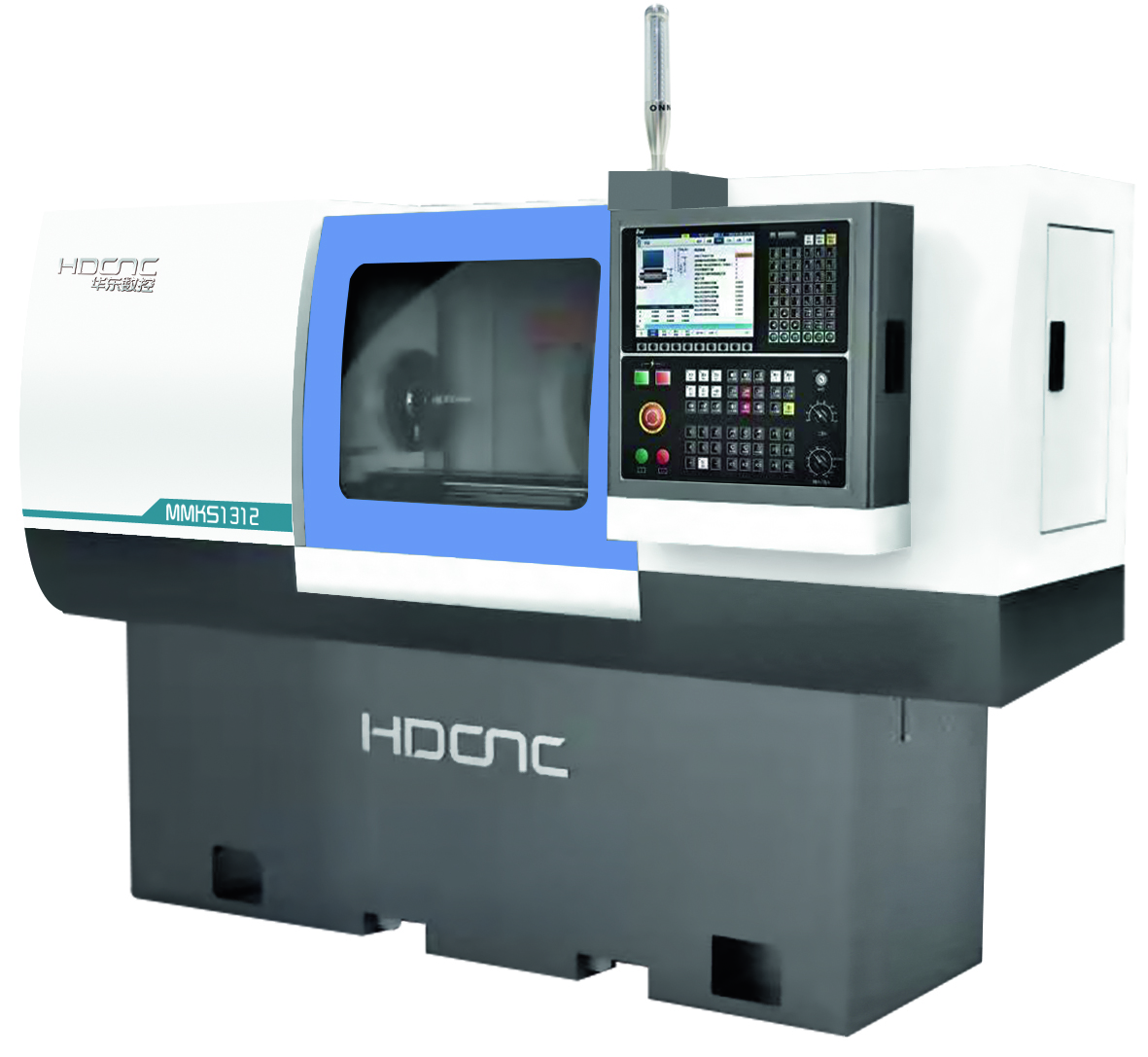

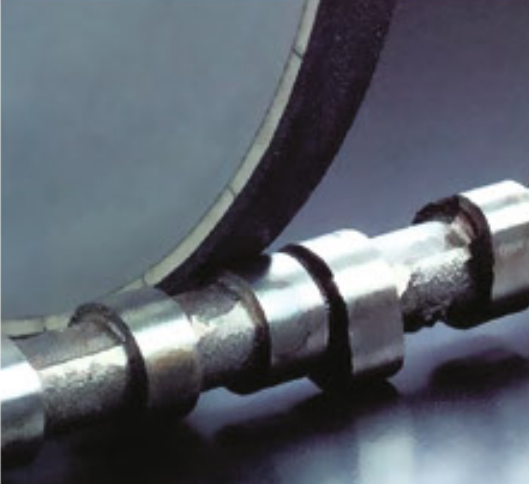

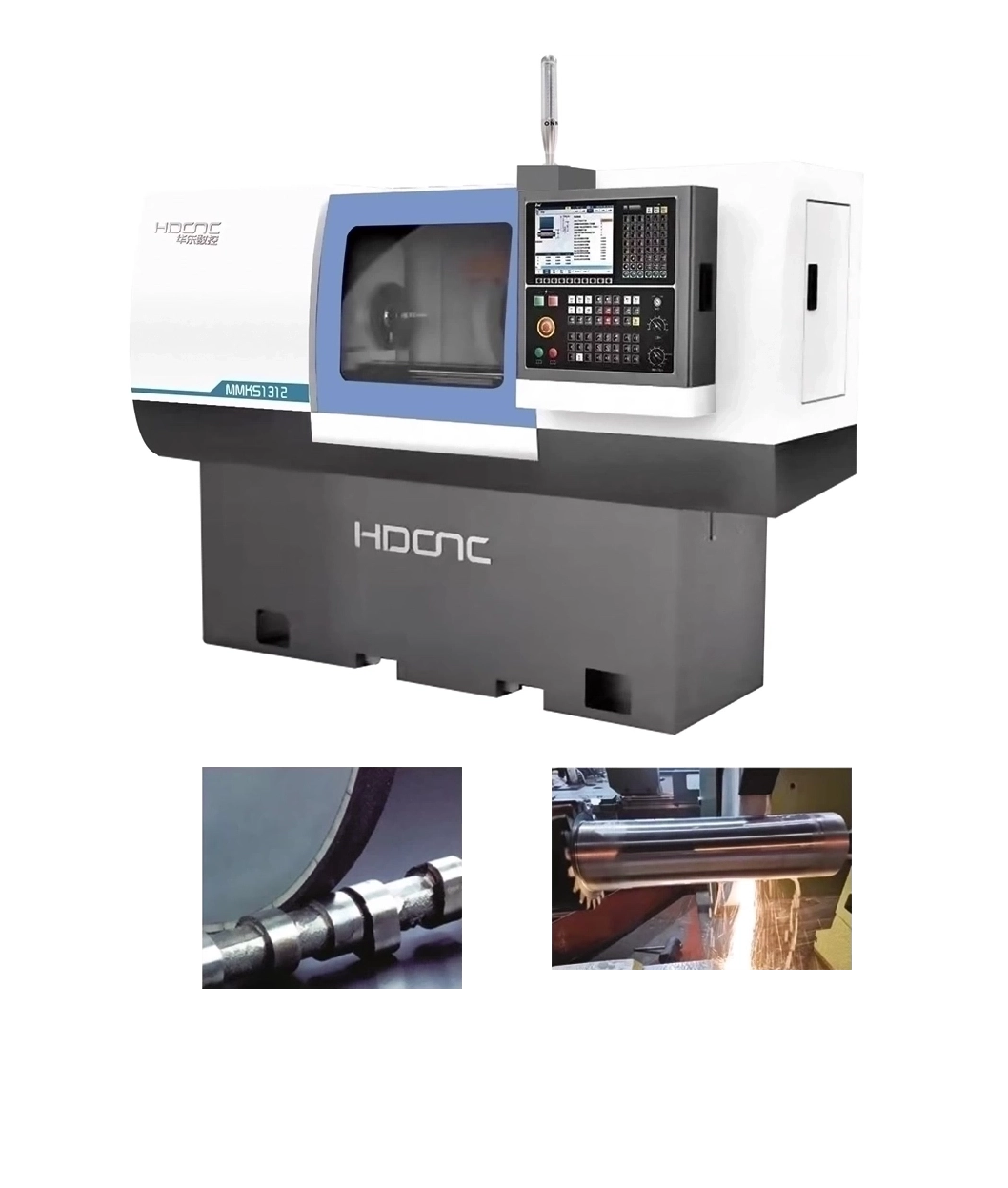

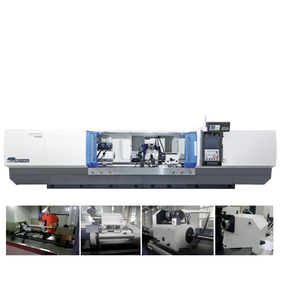

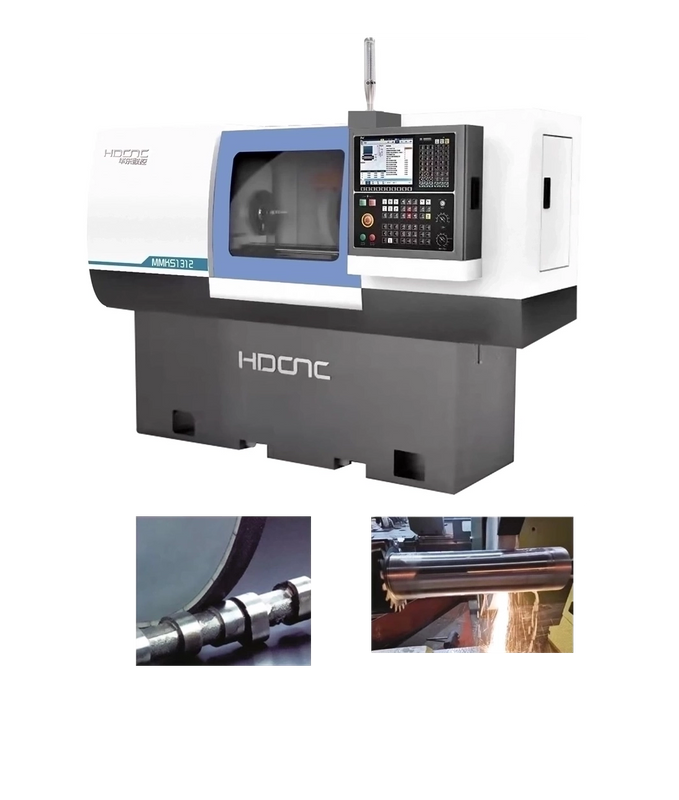

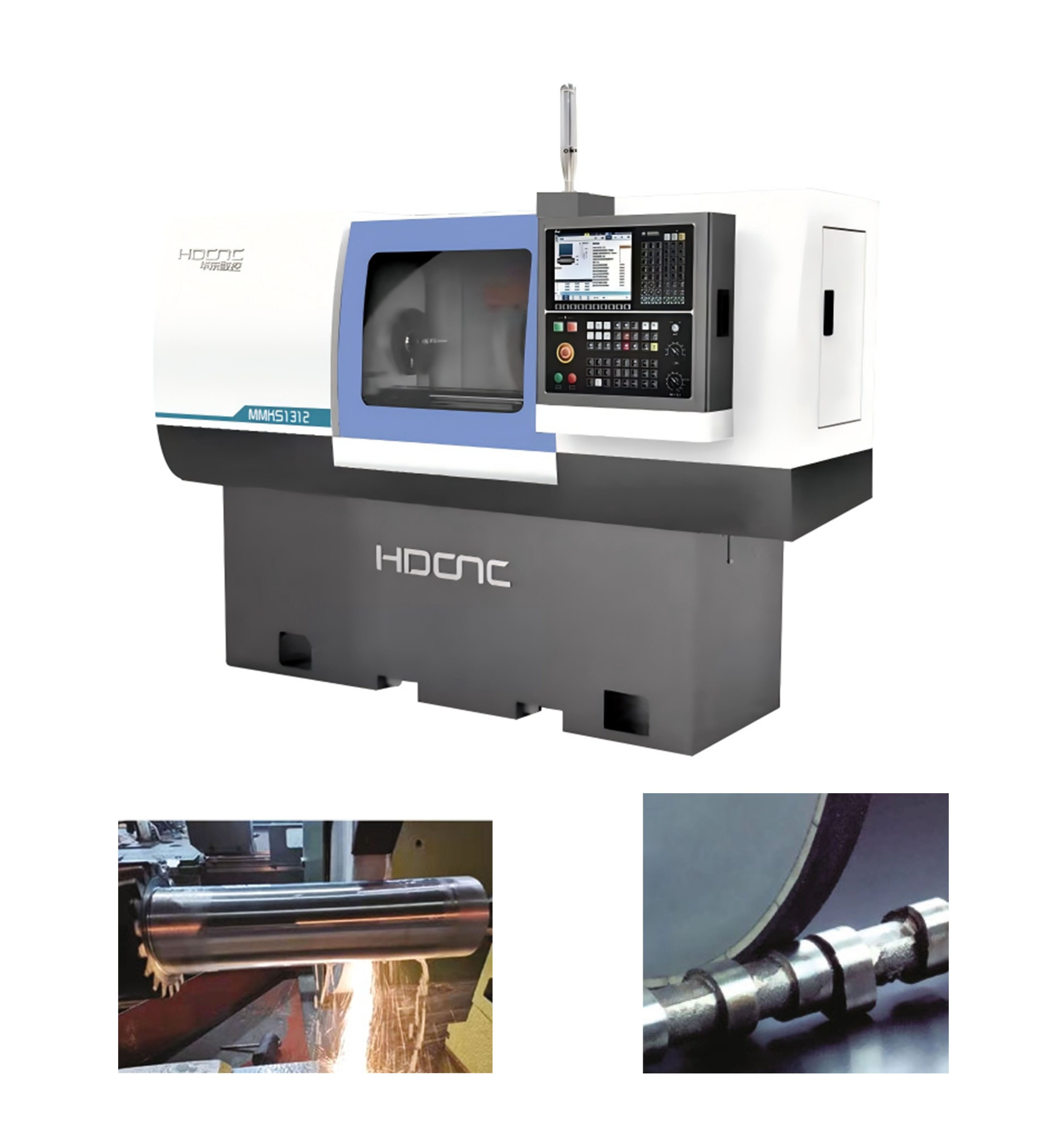

ITEM | MMKS1312*350 |
Center Height | 100mm |
Min. External Dia. | 5 mm |
Max. External Dia. | 125mm |
Max. Length | 350 mm |
Distance Between Centers | 370mm |
Max. Loading Weight | 50kg |
X axis Min Feed | 0.5μm |
X axis Resolution | 0.1μm |
X axis Max Feed | 5000mm/min |
Z axis Min Feed | 0.001mm |
Z axis Resolution | 0.1μm |
Z axis Max Feed | 5000mm/min |
Workhead | Standard With Strong Workhead，MT 4#，0-1000RPM |
Tailstock | Standard With Strong Tailstock，MT 3#，Air Cylinder Drive , Travel 30mm |
Wheel Size | Φ400mm×40mm×Φ203mm（Corundum Grinding Wheel） |
Wheel Circular Linear Speed | ≤60m/s（Corundum Wheel） ≤80 m/s（CBN Wheel） |
CNC SYSTEM | HNC 808DG（Standard） Siemens 828D（Optional） Fanuc Oi-TF/G（Optional） |
The grinding wheel spindle adopts self-developed hydrostatic fluid bearing, which has high rigidity and good rotary accuracy. The grinding wheel linear speed: CBN grinding wheel ≤80M/S, corundum grinding wheel ≤60M/S.，Accuracy ≤0.0015mm
The worktable and cross feed drive screw are made of grinding C3 grade ball screw, and pre-stretched quantitatively, with good transmission rigidity and small reverse empty stroke.
X axis adopts imported THK precision linear guide way, and applies preload, low friction coefficient, good dynamic response.
Using electric spindle diamond roller forming dressing technology, or diamond pen single point forming dressing technology
Using imported or domestic CNC system, human-machine grinding interface researched by the enterprise, reliable work, easy operation and programming.
With end face locator, axial positioning accuracy≤0.005mm
Equipped with radial automatic measuring instrument, realize full closed-loop automatic control, the external circle accuracy is stable at ≤0.003mm
