Coal driving machine
Construction machinery

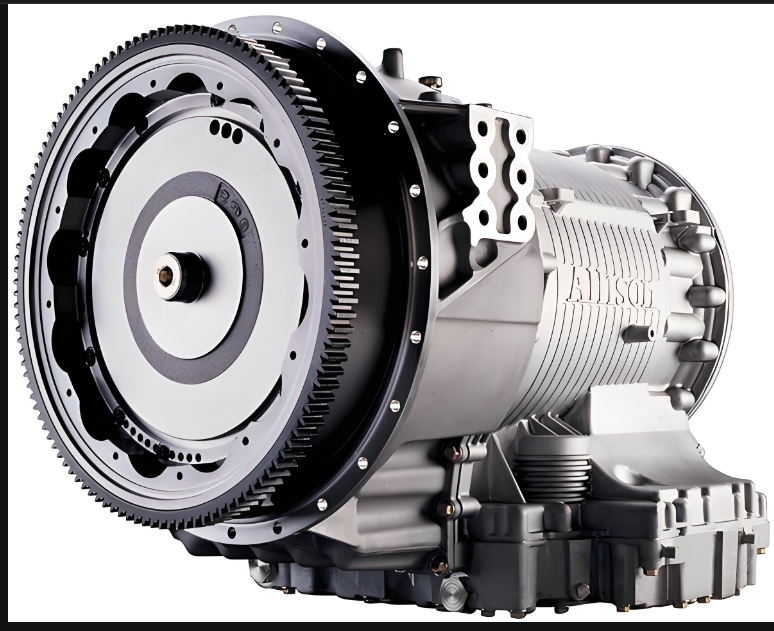

Heavy truck fittings
High voltage electrical
High voltage electrical
Petroleum machinery
24 T ATC | Spindle air curtain dust control system | Workpiece cooling system | Equal division CNC rotary table | Automatic lubrication system |
Spiral chip removal device | Chain plate type chip remover | Integral cover | Tool and toolbox | Foundation screw and leveling wedges |
| Siemens828D system | 30/32/40 T ATC | three axes grating ruler | Oil Separator device |
| Tool setting Device | ZF gear box | Workpiece measuring device | 0.001° rotary table |

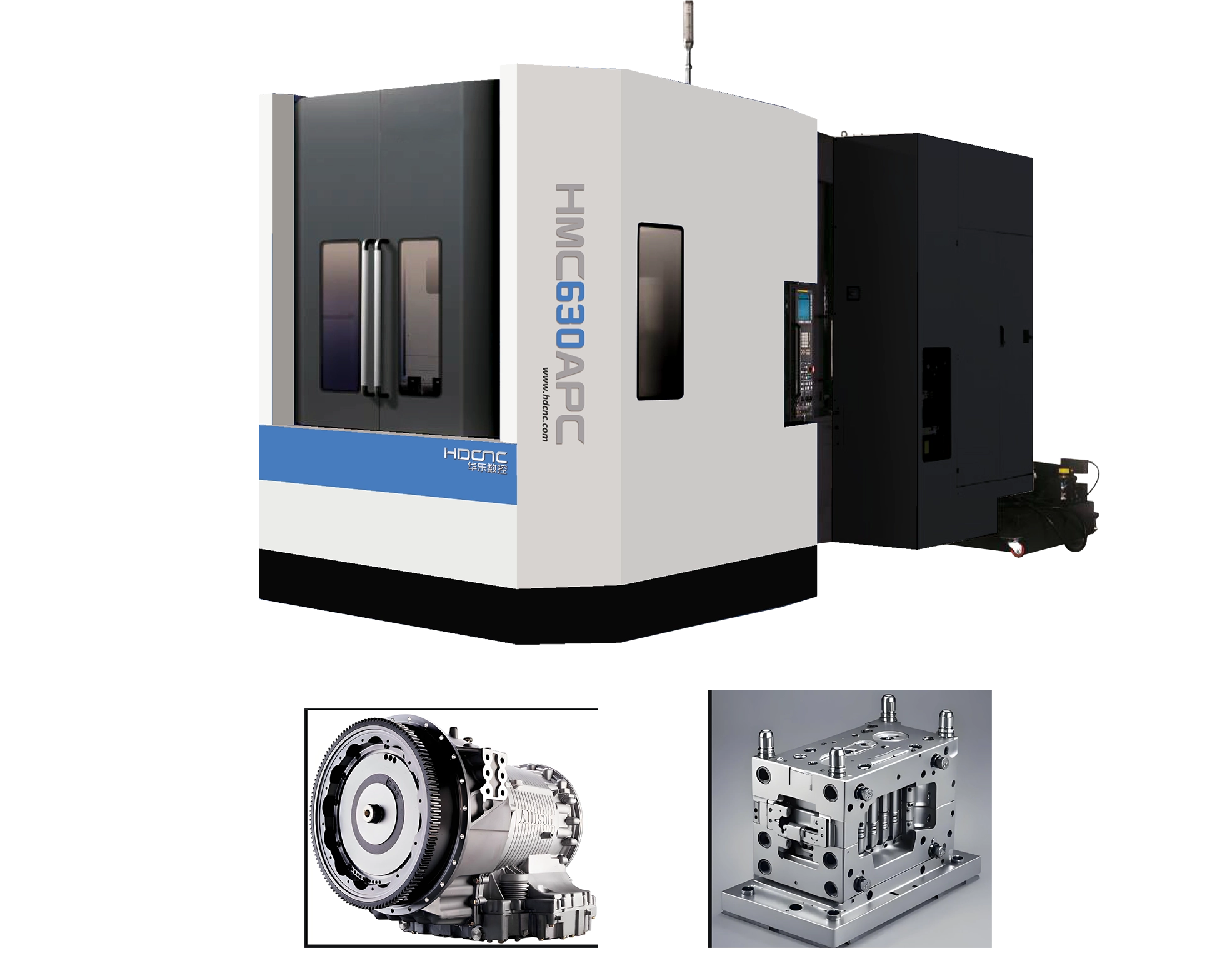

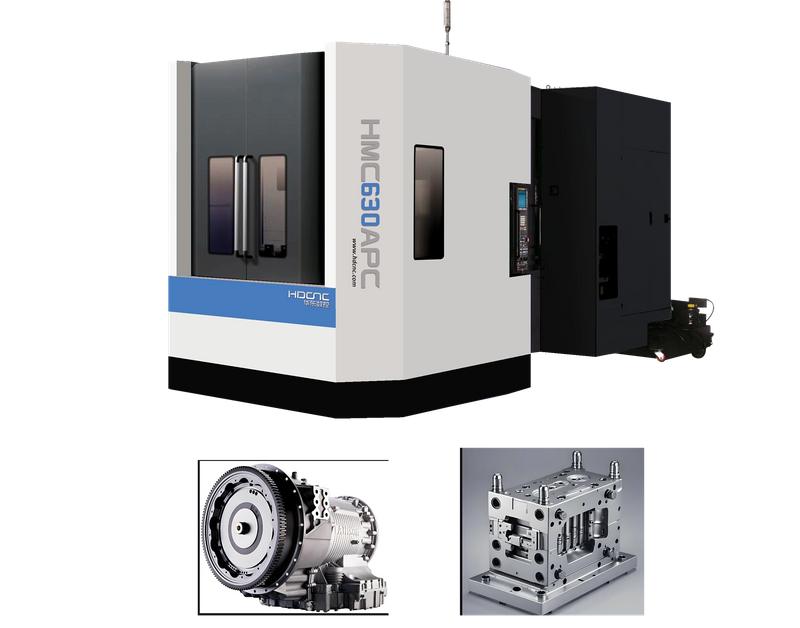

| model | Unit | HMC630APC | HLC630SAPC | HMC800APC | HMC800SAPC | HMC1000SAPC |
| Column travel(X axis) | mm | 1050 | 1050 | 1400 | 1600 | 1600 |
| spindle travel(Y axis) | mm | 900 | 750 | 1000 | 1000 | 1000 |
| table travel(Z axis) | mm | 1020 | 900 | 1300 | 1000 | 1000 |
| spindle taper to table | mm | 140-1160 | 130-1030 | 215-1515 | 200-1200 | 200-1200 |
| spindle center to table surface | mm | 100-1000 | 0-750 | 105-1105 | 40-1040 | 40-1040 |
| X axis rapid speed | mm/mim | 36000 | 20000 | 36000 | 20000 | 20000 |
| Y axis rapid speed | mm/mim | 36000 | 20000 | 36000 | 20000 | 20000 |
| Z axis rapid speed | mm/mim | 20000 | 20000 | 20000 | 20000 | 20000 |
| XYZ axis cutting speed | mm/mim | 20000 | 10000 | 20000 | 10000 | 10000 |
| table size | mm | 630*630 | 630*700 | 800*800 | 800*1000 | 1000*1000 |
| table no | 2 | 2 | 2 | 2 | 2 | |
| table deviding type | ° | 1（0.001） | 1(0.001) | 1(0.001) | 1(0.001) | 1(0.001) |
| table max loading weight | kg | 1200 | 950 | 2000 | 1500 | 1500 |
| T slot no*width*distance | mm | 18*5*125 | 18*5*125 | 22*5*160 | 22*5*200 | 22*5*200 |
| change time | s | 16 | 20 | 18 | 40 | 40 |
| spindle taper to table | ISO50 | ISO50 | ISO50 | ISO50 | ISO50 | |
| spindle motor | kw | 15/18.5 | 15/18.5 | 18.5/22 | 15/18.5 | 15/18.5 |
| spindle speed | rpm | 20-6000 | 20-6000 | 20-6000 | 20-6000 | 20-6000 |
| spindle max torque(continous/30min) | Nm | 249/307 | 249/307 | 520/619 | 249/307 | 249/307 |
| pull stud | MAS403 P50T-1 | MAS403 P50T-1 | MAS403 P50T-1 | MAS403 P50T-1 | MAS403 P50T-1 | |
| XYZ positioning accuracy | mm | 0.01 | 0.018 | 0.01 | 0.018 | 0.018 |
| XYZ repeatability positioning accuracy | mm | 0.008 | 0.01 | 0.008 | 0.01 | 0.01 |
| B positioning accuracy | " | 4(15) | 15 | 4(15) | 15 | 15 |
| B repeatability positioning accuracy | " | 1(6) | 4 | 1(6) | 4 | 4 |
| capacity | T | 40/60 | 32/40 | 40/60 | 30/32/40 | 30/32/40 |
| max tool diameter | mm | Φ125/250 | Φ125/Φ250 | Φ125/Φ250 | Φ125/Φ250 | Φ125/Φ250 |
| max tool length | mm | 400 | 300 | 400 | 300 | 300 |
| max tool weight | kg | 25 | 18 | 25 | 18 | 18 |
| change time | s | 3.5 | 4.5 | 3.5 | 4.5 | 4.5 |
| power | KW | 50 | 45 | 50 | 50 | 60 |
| machine over size | mm | 7600*4200*3650 | 6500*4100*3450 | 8400*5000*3850 | 8000*5100*3550 | 8500*5600*3550 |
| machine weight | kg | 22000 | 16000 | 28000 | 25000 | 26000 |
Column door type frame, double wall box type mechanism, good rigidity, spindle center line and column two guide rail center linen the same plane, spindle system deformation is small, high processing accuracy.
Long span guide rail design, strong bearing capacity, machine overall rigidity good
Equipped with a high precision rotary table suitable tor box ,machine base ,column and other polyhedral parts processing ,a clamping can complete milling, boring, drilling
