Auto parts
Machine manufacturer
Mould
| Cooltant system | hydraulic station | lubrication system | working light | leveling wedges |
| foundation screw | wheel flange | wheel balance arbor | tool and tool box | magnetic chuck |
| standard wheel | PLC controller | operation manual | touched screen |
dust collection device | paper filter | magetic separator | wheel balance stand | Y Z axis DRO |

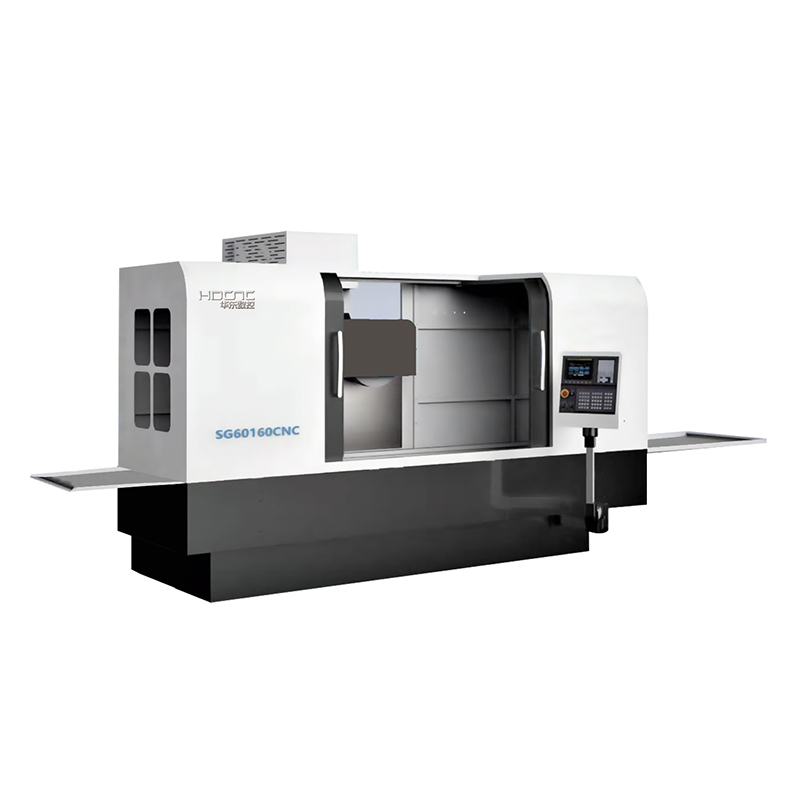

Description | Unit | SG60160LNC2 SG60160LNC3 | SG60220LNC2 SG60220LNC3 | SG60600LNC2 SG60600LNC3 | |
Table size(L*W) | mm | 1600*610 | 2200*610 | 6000*610 | |
Max.grinding size of workpiece(L*W) | mm | 1600*610 | 2200*610 | 6000*610 | |
Distance from spindle center to table surface | mm | 820/1050 | 820/1050 | 800/1050 | |
Magnetic chuck size | mm | 600*800*2 | 600*1000*2 | 600*1000*6 | |
Table longitudinal speed | mm | 5-25 | |||
Max. loading of table(including magentic chuck) | kg | 1230 | 1690 | 6000 | |
Wheelhead Transverse moving | Auto intermittent feed rate | m/t | 1-30 | ||
Rapid speed feed | m/min | 0.05-2 | |||
Handwheel feed per gra. | mm/gra. | 0.02 | |||
Wheel vertical moving | Auto intermittent speed | mm/t | 0.005-0.05 | ||
Rapid speed feed | m/min. | 0.05-2 | |||
Handwheel feed per gra. | mm/gra. | 0.001 | |||
Wheel size(OD*Width*ID) | mm | 500*75*305 | 500*100*305 | ||
Total rated power | KW | 28.5 | 38.5 | ||
Surface roughness | μm | Ra0.63 | |||
Gross weight | kg | 8500 | 9500 | 25000 | |
Package dimension(L*W*H) | cm | 480*220*172 260*227*255 | 600*220*172 260*227*255 | ||

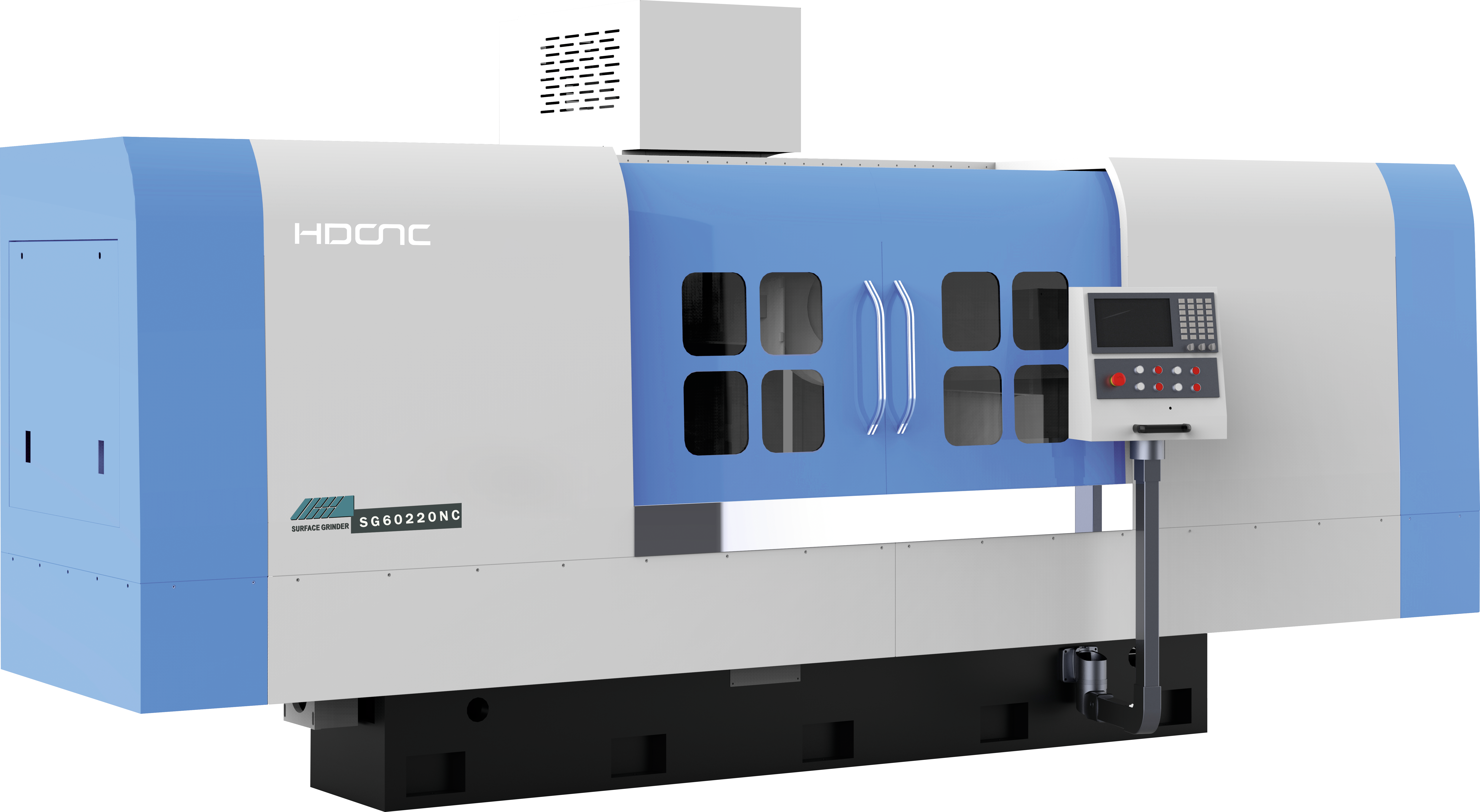

Description | Unit | SG80160LNC2 SG80160LNC3 | SG80220LNC2 SG80220LNC3 | SG80300LNC2 SG80300LNC2 | |
Table size(L*W) | mm | 1600*810 | 2200*810 | 3000*810 | |
Max.grinding size of workpiece(L*W) | mm | 1600*810 | 2200*810 | 3000*810 | |
Distance from spindle center to table surface | mm | 820/1050 | |||
Magnetic chuck size | mm | 800*800*2 | 800*1000*2 | 800*1000*3 | |
Table longitudinal speed | mm | 5-25 | |||
Max. loading of table(including magentic chuck) | kg | 1230 | 1690 | 6000 | |
Wheelhead Transverse moving | Auto intermittent feed rate | m/t | 1-30 | ||
Rapid speed feed | m/min | 0.05-2 | |||
Handwheel feed per gra. | mm/gra. | 0.05(0.02) | |||
Wheel vertical moving | Auto intermittent speed | mm/t | 0.005-0.05 | ||
Rapid speed feed | m/min. | 0.05-2 | |||
Handwheel feed per gra. | mm/gra. | 0.005(0.001) | |||
Spindle speed | rpm | 960 | |||
Wheel size(OD*Width*ID) | mm | 500*75*305 | |||
Total rated power | KW | 28.5 | 31 | ||
Surface roughness | μm | Ra0.63 | |||
Gross weight | kg | 10000 | 11500 | 14000 | |
Package dimension(L*W*H) | cm | 480*220*172 280*227*255 | 600*220*172 280*227*255 | 830*220*172 280*227*255 | |

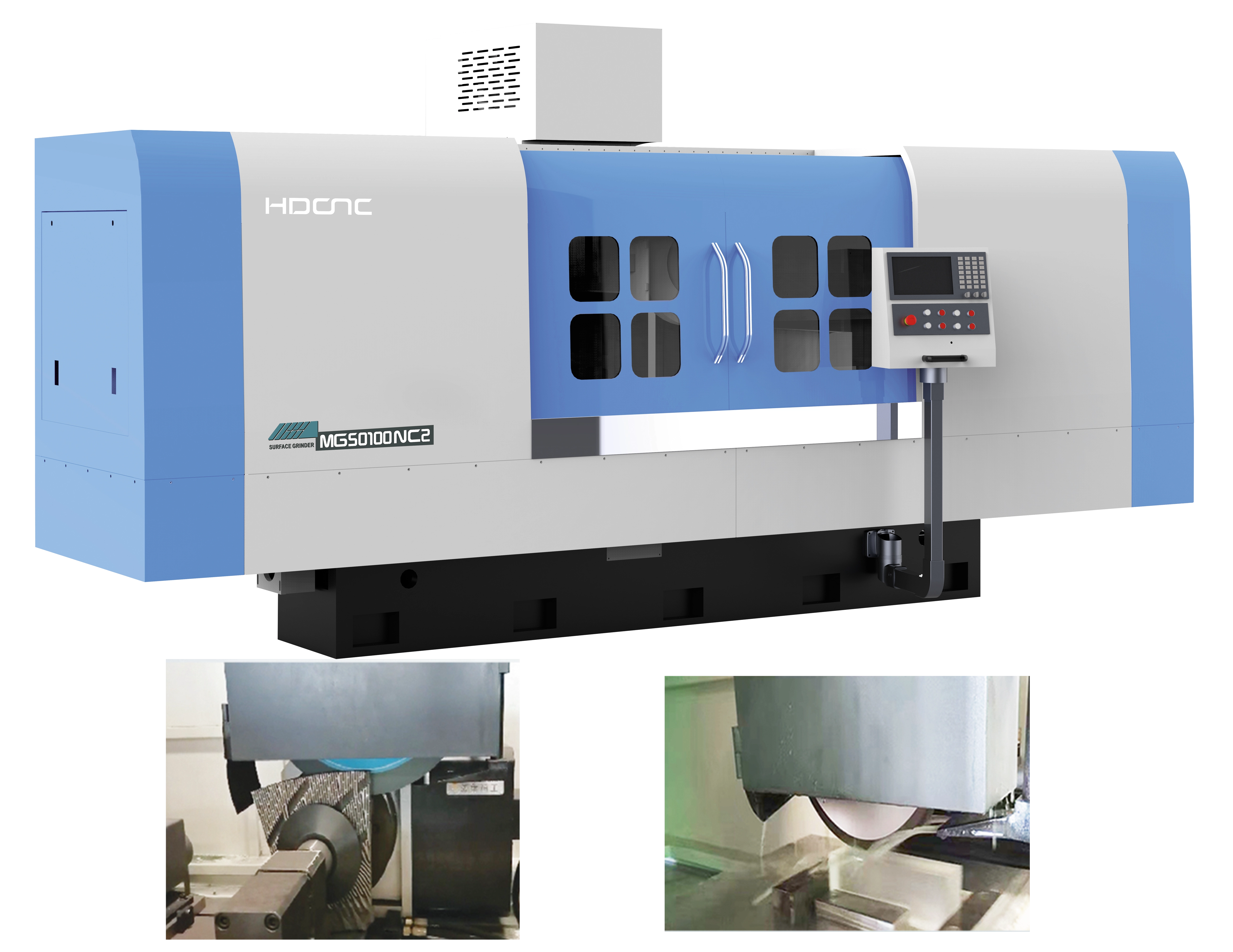

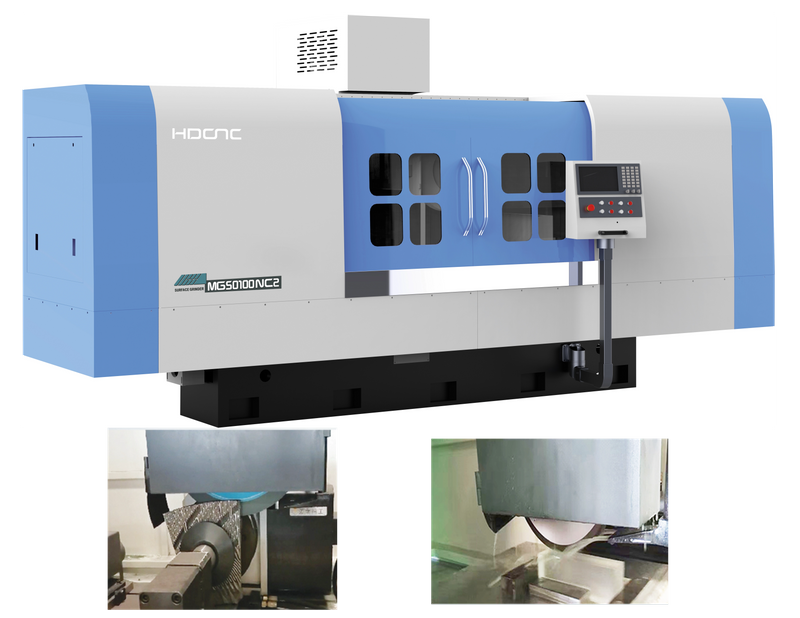

Forced lubrication guideway, prolong the service life of machine
High strength cast iron foundation
Longitudinal moves hydraulically with variable speed with 2 axis CNC or servo driven with 3 axis CNC
The transverse and Vertical moves by servo motor and PLC controller realizing auto feed

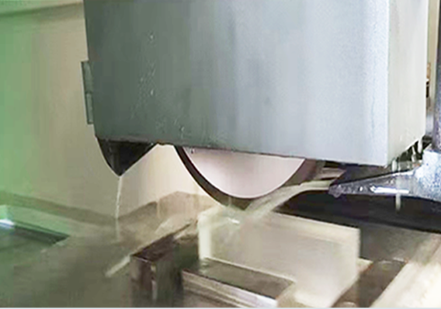

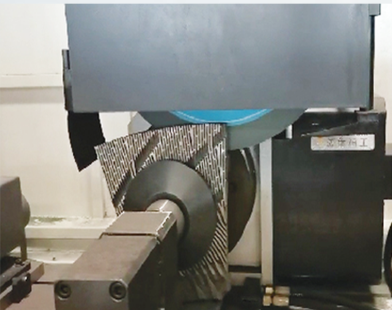

The machine is suitable for heavy duty grinding with high grinding efficiency
