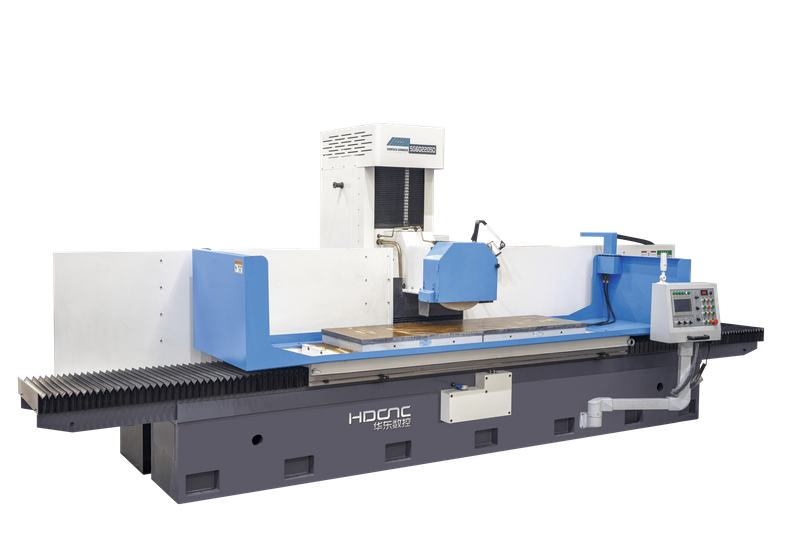

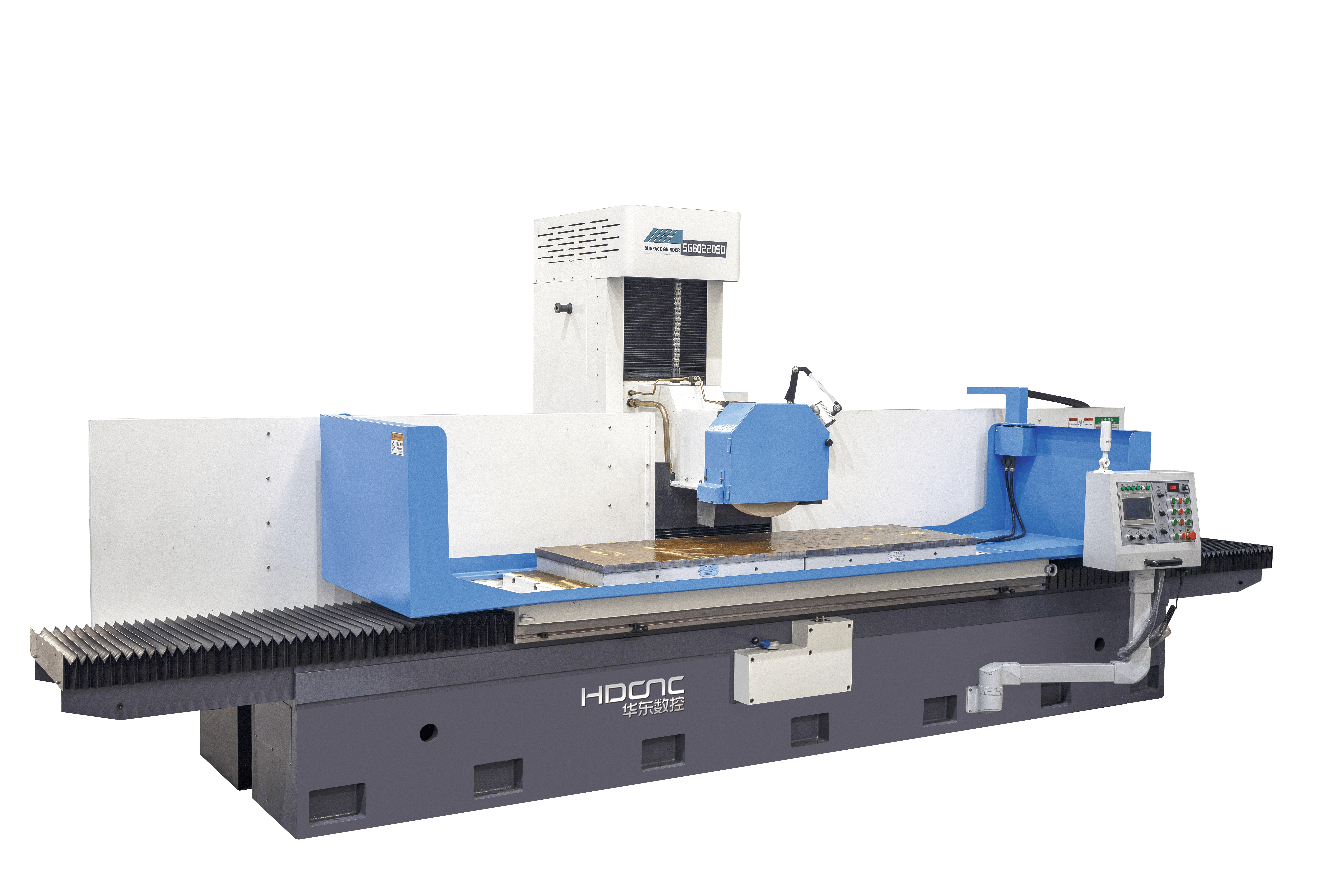

| Cooltant system | working light | leveling wedges | foundation screw | wheel flange |
| wheel balance arbor | magnetic chuck | standard wheel | operation manual | wheel dressing base |
| PLC controller | touched screen |
diamond pen | magnetic separator | wheel balance stand | DRO | dust collection |
Description | Unit | SG50100PC2 | SG50120PC2 | ||
Table size(L*W) | mm | 1000*500 | 500*1200 | ||
Max.grinding size of workpiece(L*W) | mm | 1000*500 | 500*1200 | ||
Distance from spindle center to table surface | mm | 820 | 850 | ||
Magnetic chuck size | mm | 500*1000 | 500*1200* | ||
Table longitudinal speed | mm | 5-25 | |||
Max. loading of table(including magentic chuck) | kg | 800 | 1200 | ||
Wheelhead Transverse moving | Auto intermittent feed rate | m/t | 1-20 | ||
Rapid speed feed | m/min | 0.05-2 | |||
Handwheel feed per gra. | mm/gra. | 0.005 | |||
Wheel vertical moving | Auto intermittent speed | mm/t | 0.005-0.045 | ||
Rapid speed feed | m/min. | 0.05-2 | |||
Handwheel feed per gra. | mm/gra. | 0.005 | |||
Wheel size(OD*Width*ID) | mm | 355*50*127 | |||
Surface roughness | μm | Ra0.63 | |||
Gross weight | kg | 6000 | 6500 | ||
Package dimension(L*W*H) | cm | 400*220*172 260*227*255 | 480*220*172 260*227*255 | ||
Description | Unit | SG60160SD (SG60160LPC2) | SG60220SD (SG60220LPC2) | SG60600SD (SG60600LPC2) | |
Table size(L*W) | mm | 1600*610 | 2200*610 | 6000*610 | |
Max.grinding size of workpiece(L*W) | mm | 1600*610 | 2200*610 | 6000*610 | |
Distance from spindle center to table surface | mm | 820/1050 | 820/1050 | 800/1050 | |
Magnetic chuck size | mm | 600*800*2 | 600*1000*2 | 600*1000*6 | |
Table longitudinal speed | mm | 5-25 | |||
Max. loading of table(including magentic chuck) | kg | 1230 | 1690 | 6000 | |
Wheelhead Transverse moving | Auto intermittent feed rate | m/t | 1-30 | ||
Rapid speed feed | m/min | 0.05-2 | |||
Handwheel feed per gra. | mm/gra. | 0.005(0.002) | |||
Wheel vertical moving | Auto intermittent speed | mm/t | 0.005-0.05 | ||
Rapid speed feed | m/min. | 0.05-2 | |||
Handwheel feed per gra. | mm/gra. | 0.005(0.001) | |||
Wheel size(OD*Width*ID) | mm | 500*75*305 | 500*100*305 | ||
Total rated power | KW | 28.5 | 38.5 | ||
Surface roughness | μm | Ra0.63 | |||
Gross weight | kg | 8500 | 9500 | 25000 | |
Package dimension(L*W*H) | cm | 480*220*172 260*227*255 | 600*220*172 260*227*255 | ||
Description | Unit | SG80160SD (SG80160LPC2) | SG80220SD (SG80220LPC2) | SG80300SD (SG80300LPC2) | |
Table size(L*W) | mm | 1600*810 | 2200*810 | 3000*810 | |
Max.grinding size of workpiece(L*W) | mm | 1600*810 | 2200*810 | 3000*810 | |
Distance from spindle center to table surface | mm | 820/1050 | |||
Magnetic chuck size | mm | 800*800*2 | 800*1000*2 | 800*1000*3 | |
Table longitudinal speed | mm | 5-25 | |||
Max. loading of table(including magentic chuck) | kg | 1230 | 1690 | 6000 | |
Wheelhead Transverse moving | Auto intermittent feed rate | m/t | 1-30 | ||
Rapid speed feed | m/min | 0.05-2 | |||
Handwheel feed per gra. | mm/gra. | 0.005(0.002) | |||
Wheel vertical moving | Auto intermittent speed | mm/t | 0.005-0.05 | ||
Rapid speed feed | m/min. | 0.05-2 | |||
Handwheel feed per gra. | mm/gra. | 0.005(0.001) | |||
Spindle speed | rpm | 960 | |||
Wheel size(OD*Width*ID) | mm | 500*75*305 | |||
Total rated power | KW | 28.5 | 31 | ||
Surface roughness | μm | Ra0.63 | |||
Gross weight | kg | 10000 | 11500 | 14000 | |
Package dimension(L*W*H) | cm | 480*220*172 280*227*255 | 600*220*172 280*227*255 | 830*220*172 280*227*255 | |

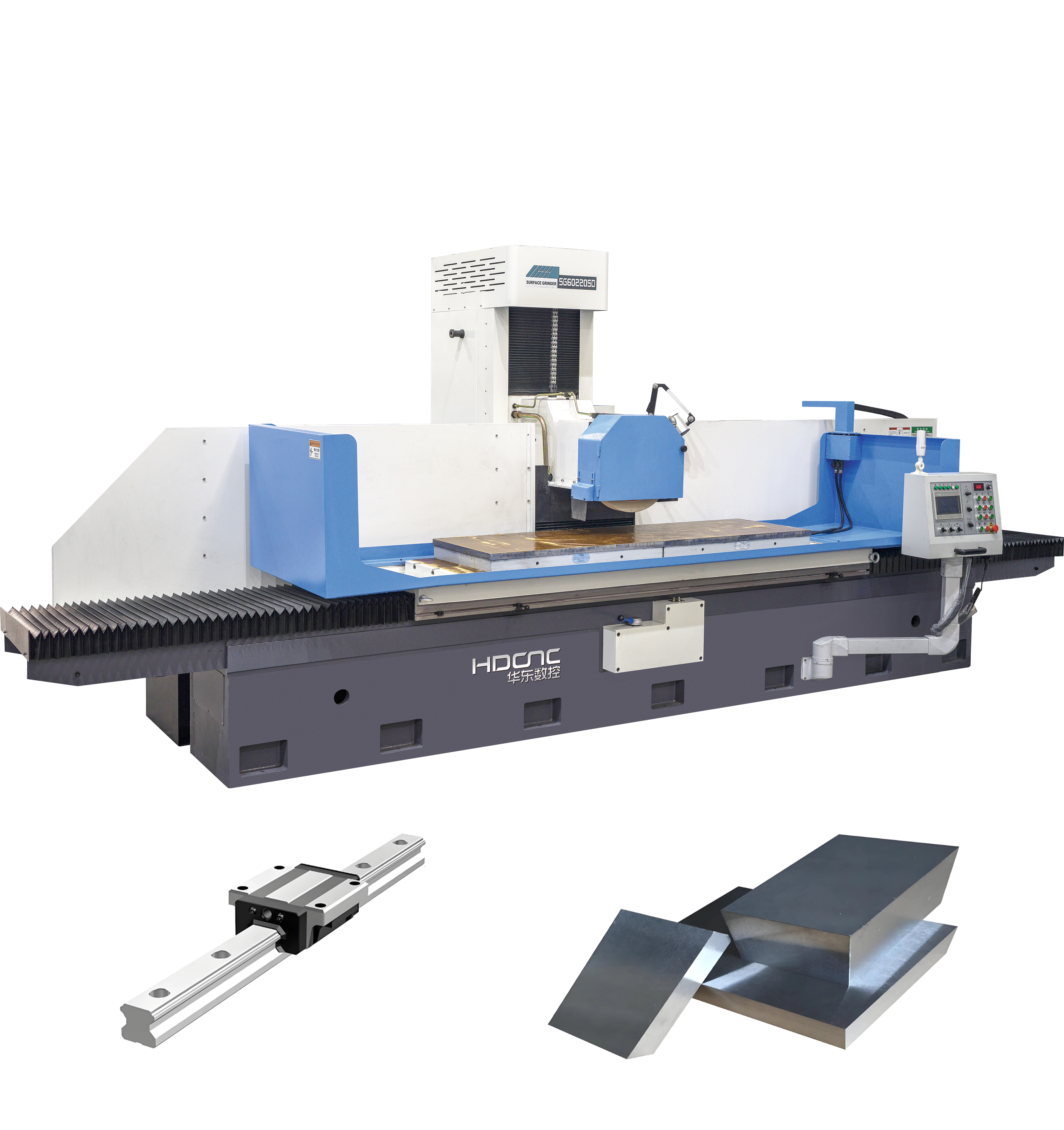

High strength cast iron foundation
Longitudinal moves hydraulically with variable speed
The transverse and Vertical moves by servo motor and PLC controller realizing auto feed
The machine is suitable for heavy duty grinding with high grinding efficiency
Forced lubrication guideway, prolong the service life of machine.
The machine can be configured with the CNC system to expand to 2 axis CNC or 3 axis CNC machine.

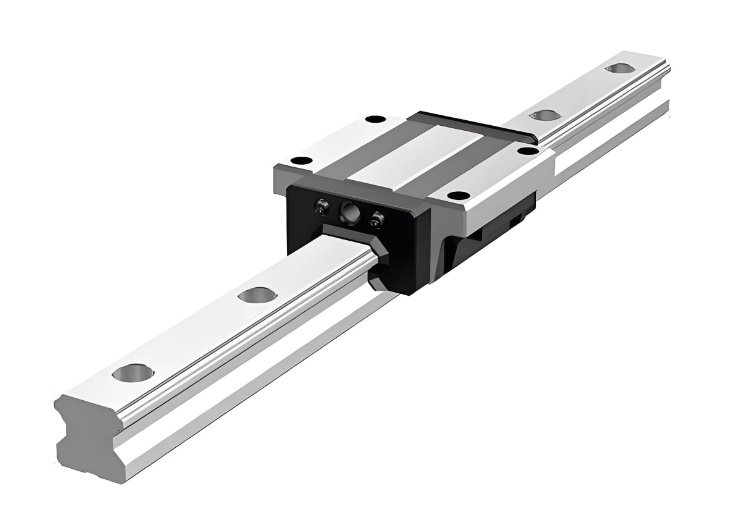

SGLXXXPC2 means PLC controlled machine is with linear guideway .
SGXXXSD means PLC controlled machine is with box way.
