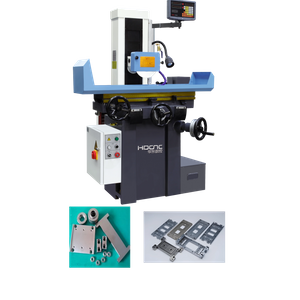

Features
High strength cast iron foundation
Machine longitudinal moves hydraulically or manually;
Transverse moves manually or frequency motor drives;
Vertical moves manually or motor drives,AHD model is with PLC controller on vertical movement.
Column adopts steel guide rail to improve rigidity
Grinding head adopts high precision rolling bearing spindle set, sleeve mounted, which can achieve high precision and high finish grinding
Application
This machine can grind steel, cast iron, non-ferrous metal and other materials, suitable for machining shop maintenance shop and tool shop use; The machine tool mainly uses the circumference of the grinding wheel to grind the workpiece or uses the end face of the grinding wheel to grind the workpiece vertically.
Standard Accessories
Cooltant system, hydraulic station,lubrication system, working light, leveling wedges, foundation screw, wheel flange, wheel balance arbor, tool and tool box, magnetic chuck, standard wheel, operation manual.
Optional Accessories
dust collection device
paper filter
magetic separator
wheel balance stand
Y Z axis DRO
Specifications
Description | Unit | SG2050AHR/AHD |
Table size(L*W) | mm | 460*200 |
Max.grinding size of workpiece(L*W) | mm | 460*200*350 |
T-slot of table(No.*width) | mm | 1*14 |
Distance from spindle center to worktable | mm | 450 |
Max. loading of table(including magentic chuck) | 120 | |
Magnetic chuck size | mm | 460*200 |
Wheel size(OD*Width*ID) | mm | 200*13* 31.75 |
Spindle speed(stepless) | r/min | 2850 |
Worktable speed | m/min | 7-23 |
Vertical feed handwheel per revolution | mm | 1.25 |
Vertical feed handwheel per division | mm | 0.005 |
Vertical feed rapid speed (motor) | mm/min | 460 |
Transverse feed handwheel per revolution | mm | 5 |
Transverse feed handwheel per division | mm | 0.02 |
Transverse auto feed | mm/min | 0.1-8 |
Transverse rapid feed | mm/min | 990 |
Spindle motor | KW | 1.5 |
Hydraulic motor | KW | 0.75 |
Cooltant motor | KW | 0.04 |
Elevating motor | KW | 0.25 |
Transverse feed motor | KW | 0.04 |
Total rated power | KW | 3.3 |
Surface roughness | μm | Ra0.63 |
Gross weight | kg | 1000 |
Package dimension(L*W*H) | mm |
