| Quantity: | |
|---|---|
Coal driving machine
Construction machinery
Heavy truck fittings
High voltage electrical
High voltage electrical

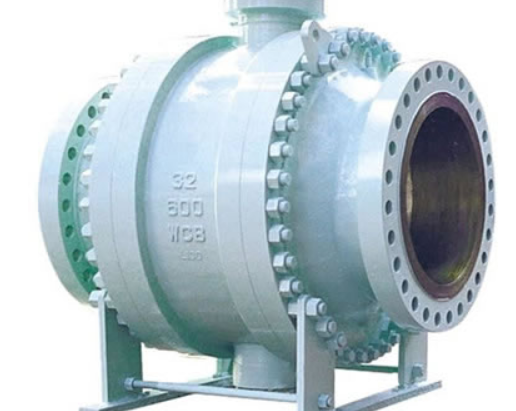

Petroleum machinery
24 T ATC | Spindle air curtain dust control system | Workpiece cooling system | Equal division CNC rotary table | Automatic lubrication system |
Spiral chip removal device | Chain plate type chip remover | Integral cover | Tool and toolbox | Foundation screw and leveling wedges |
| Siemens828D system | 30/32/40 T ATC | three axes grating ruler | Oil Separator device |
| Tool setting Device | ZF gear box | Workpiece measuring device | 0.001° rotary table |

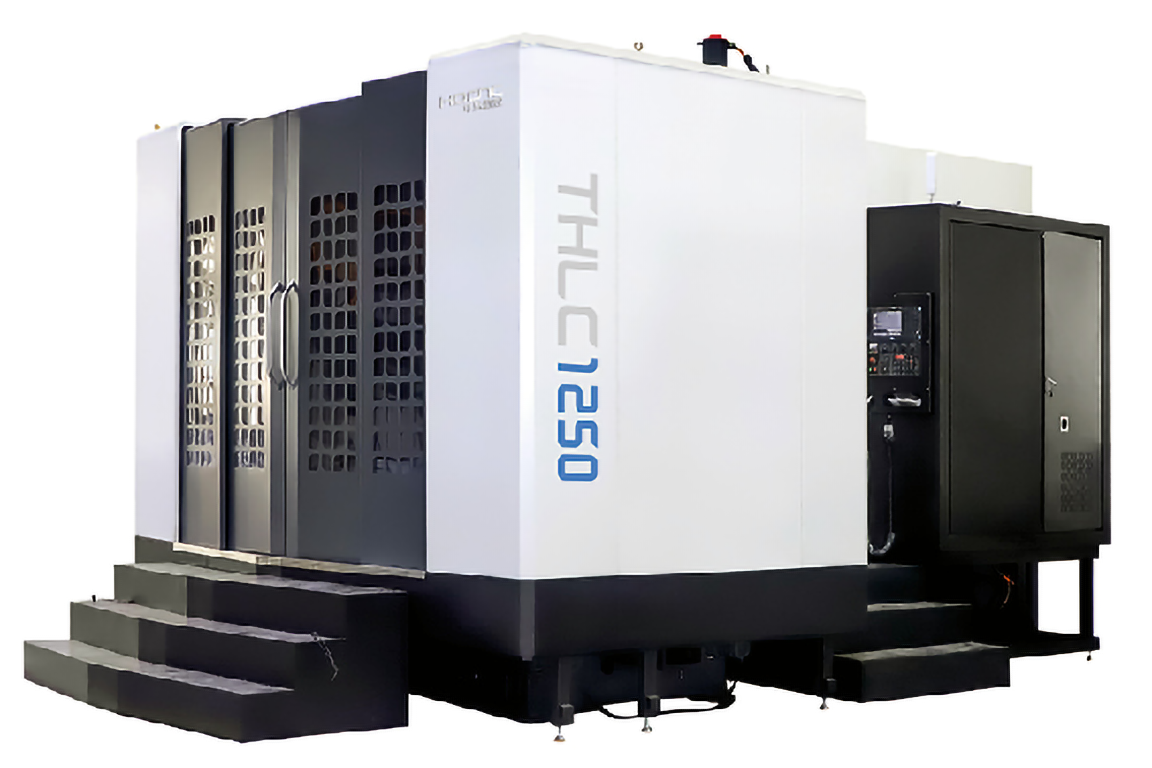

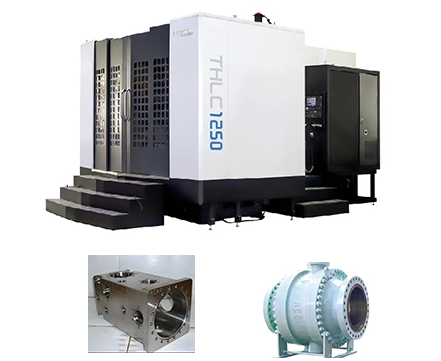

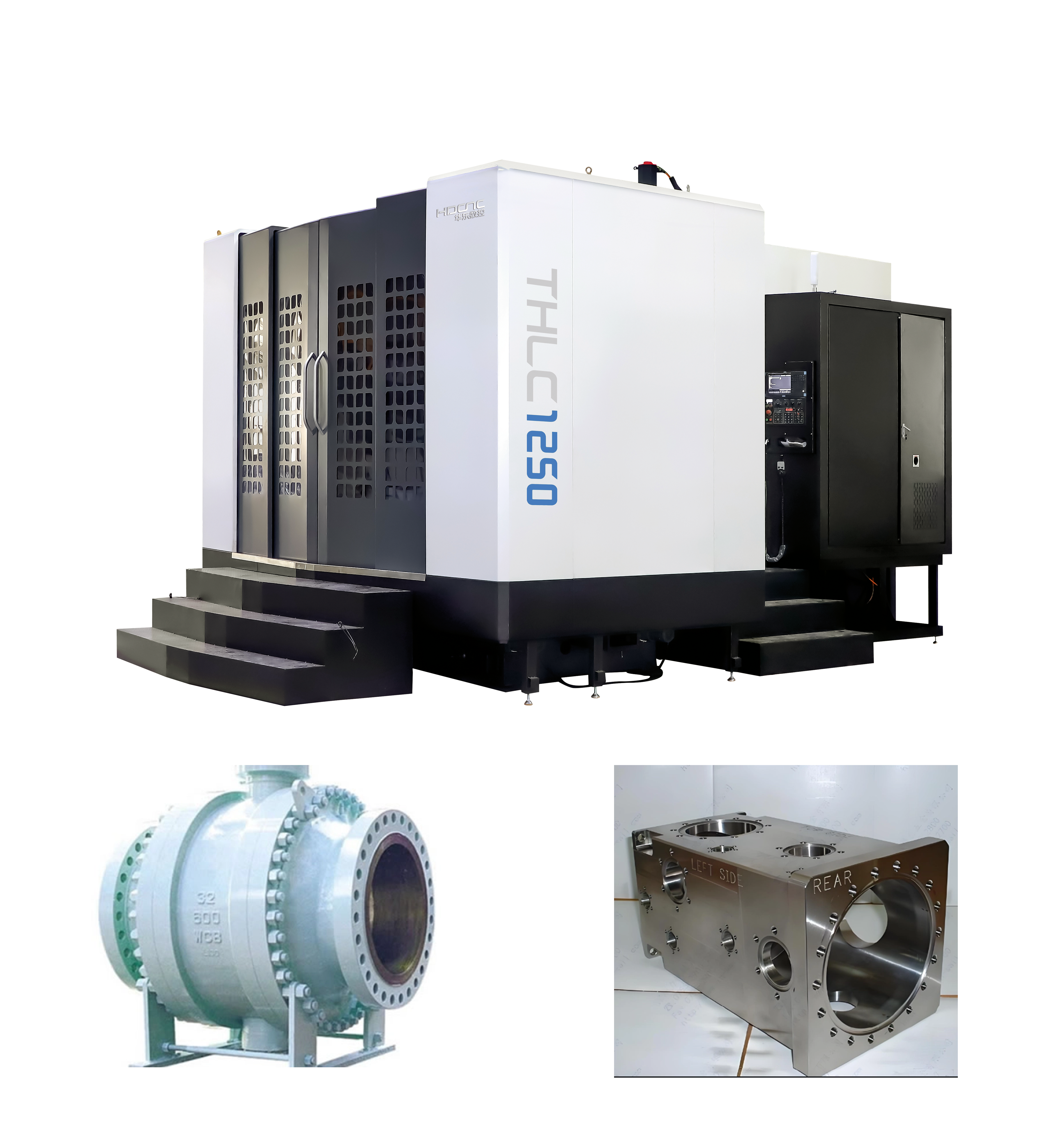

| Model | Unit | THLC1000 | THLC1250 | THLC1500 |
| Table size | mm | 1000*1000 | 1250*1250 | 1500*1500 |
| Max Loading Weight | kg | 3000/5000 | 3000/5000 | 80000 |
| T-slot(Number*width*distance) | mm | 7*22*130 | 5*22*200 | 5*28*275 |
| Travel(X/Y/Z/M) | mm | 1800/1400/1400 | 1800/1400/1400 | 2500/1400/2000 |
| Diameter/travel of W-axis boring shaft | mm | 110/500 | 110/500 | 110/500 |
| Rapid moving speed(X/Y/Z/W) | m/mim | 2012/12/12 | 10/10/12 | 9/9/9 |
| X/Y/Z Cutting speed | mm/mim | 1~5000 | 1~5000 | 1~5000 |
| Spindle center line to table surface | mm/mim | 160~1560 | 160~1560 | 60~1460 |
| Spindle nose to table center | mm/mim | 260~1660 | 260~1660 | 320~2320 |
| Spindle speed | rpm | 3500 | 3500 | 3500 |
| Spindle power | kw | 22/26 | 22/26 | 22/26 |
| Max spindle torque | 770 | 770 | 770 | |
| Tool holder type | BT50 | BT50 | BT50 | |
| Pull stud | BT50-45 | BT50-45 | BT50-45 | |
| ATC capacity | 30 | 30 | 30 | |
| Tool change time | S | 7.5(tool to tool) | 7.5(tool to tool) | 7.5(tool to tool) |
| Max tool weight | kg | 15 | 15 | 15 |
| Max diameter of tool | mm | 112/200(Empty) | 112/200(Empty) | 112/200(Empty) |
| Air pressure | mpa | 0.6~0.8 | 20-6000 | 0.6~0.8 |
| Machine weight(about) | kg | 28000 | 30000 | 34000 |
| Machine overall size(L*W*H) | mm | 7400*5900*3820 | 7400*5900*3820 | 8200*6900*5000 |
Column door type frame, double wall box type mechanism, good rigidity, spindle center line and column two guide rail center linen the same plane, spindle system deformation is small, high processing accuracy.
Long span guide rail design, strong bearing capacity, machine overall rigidity good

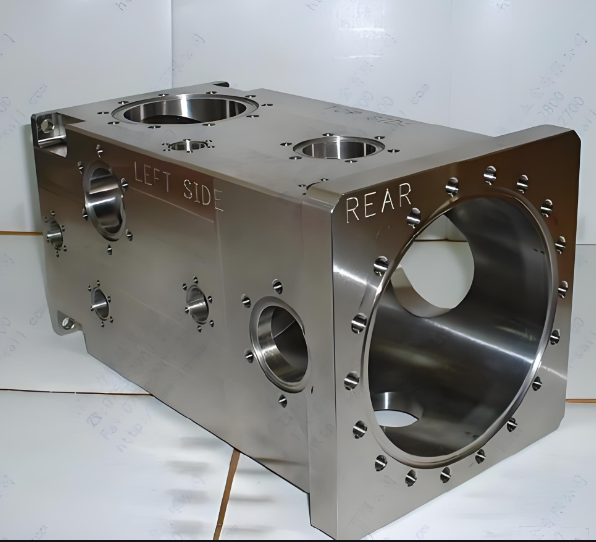

Equipped with a high precision rotary table suitable tor box ,machine base ,column and other polyhedral parts processing ,a clamping can complete milling, boring, drilling
