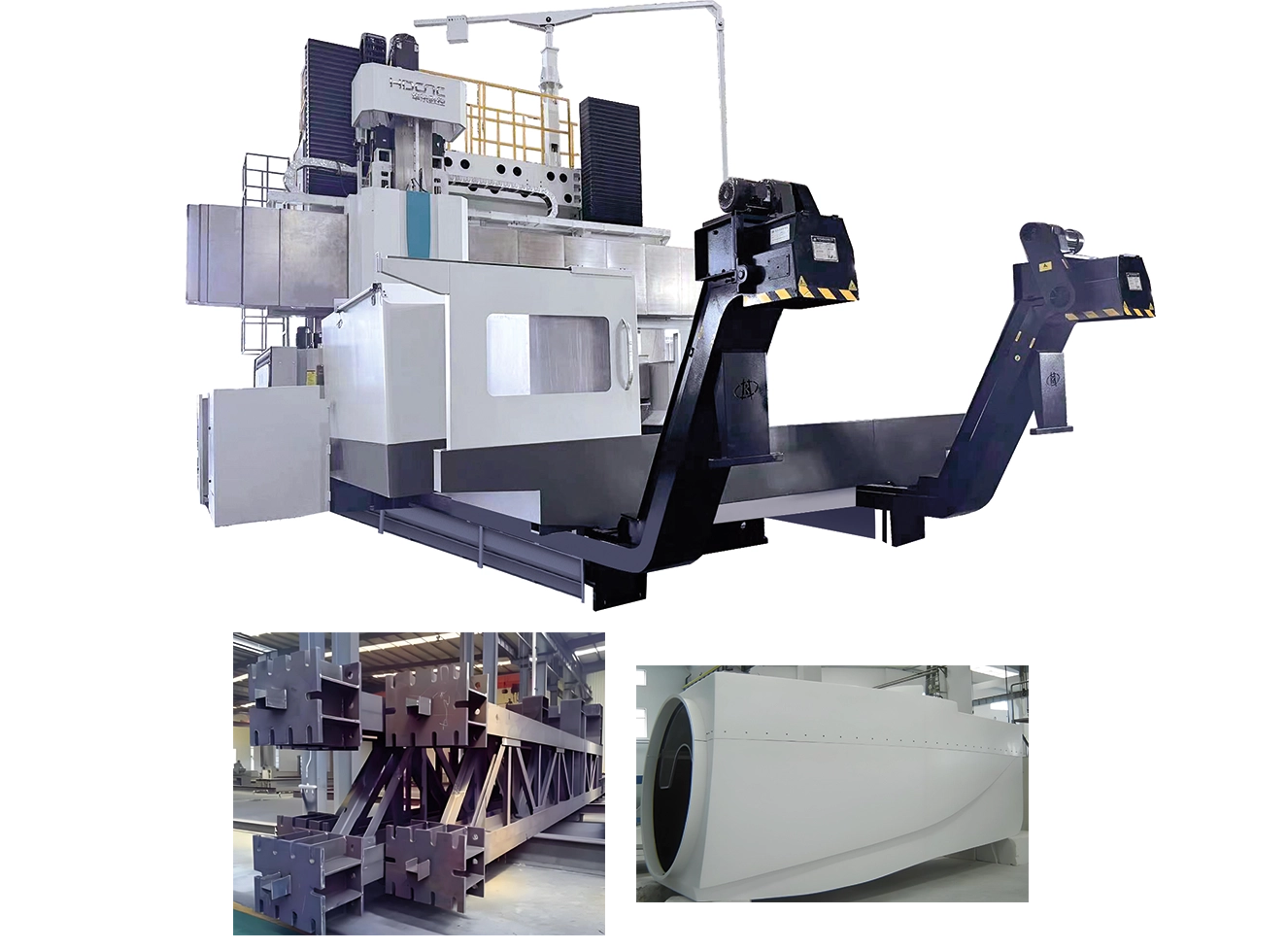

Siemens 828D system | Chain type chip conveyor. |
Spindle automatic constant temperature cooling circulation system | Automatic grease lubrication system or coordinate axes |
Machine pneumatic system | Spindle taper air seal |
Automatic chip converyor on both sides of the worktable | Cutting tool cooling system and large capacity water tank |
| Semi-closed cover | Door open switch |
MPG | Tricolor working light |
Electric cabinet air conditioner | Standard accessories and documents |
ATC
measuring gauge
Grating ruler
Optional mill head
Cooltant through spindle
fourth rotary table
| Model Item | Unit | XKW2132×40 | XKW2132×60 | XKW2132×80 | XKW2137×60 | XKW2137×80 |
| X axis stroke | mm | 4200 | 6200 | 8200 | 6500 | 8500 |
| Y axis stroke | mm | 3800 | 3800 | 3800 | 4300 | 4300 |
| Z axis stroke | mm | 1250 | 1250 | 1250 | 1250 | 1250 |
| W-axis travel (5×250 multi-point positioning/continuous) | mm | 1250 | 1250 | 1250 | 1250/1600 | 1250/1600 |
| Effective width of gantry | mm | 3200 | 3200 | 3200 | 3700 | 3700 |
| Maximum distance from table to spindle endface | mm | 2450 | 2450 | 2450 | 2450/2750 | 2450/2750 |
| Table size | 2500×4000 | 2500×6000 | 2500×8000 | 3000×6000 | 3000×8000 | |
| Max. loading weight | 18 | 24 | 30 | 28 | 35 | |
| T-slot (W x spacing x No.) | 28×200×12 | 28×200×12 | 28×200×12 | 28×200×14 | 28×200×14 | |
| Max. cutting speed X/Y/Z | m/min | 6/6/6 | 6/6/6 | 6/6/6 | 6/6/6 | 6/6/6 |
| Rapid movement speed X/Y/Z | m/min | 10/10/10 | 10/10/10 | 10/10/10 | 10/10/10 | 10/10/10 |
| Max. spindle speed | rpm | 4000 | 4000 | 4000 | 4000 | 4000 |
| Spindle power (continuous/30min) | kW | 22/26 | 22/26 | 22/26 | 30/37 | 30/37 |
| Spindle torque | N.m | 770/910 | 770/910 | 770/910 | 1050/1260 | 1050/1260 |
| Spindle taper | mm | BT50 | BT50 | BT50 | BT50 | BT50 |
| Ram section | mm | 450×450 | 450×450 | 450×450 | 450×450 | 450×450 |
| ATC capacity | 24/32/40/60 | 24/32/40/60 | 24/32/40/60 | 24/32/40/60 | 24/32/40/60 | |
| Max. tool diameter (full/empty) | mm | Φ125/Φ250 | Φ125/Φ250 | Φ125/Φ250 | Φ125/Φ250 | Φ125/Φ250 |
| Max. tool length | mm | 400 | 400 | 400 | 400 | 400 |
| Max. tool weight | kg | 25 | 25 | 25 | 25 | 25 |
| Accuracy (implementation standard GB/T19362.1-2003) | ||||||
| Positioning accuracy X/Y/Z | mm | 0.025/0.030/0.020 | 0.028/0.030/0.020 | 0.03/0.030/0.020 | 0.028/0.035/0.020 | 0.03/0.035/0.020 |
| Repeat positioning accuracy X/Y/Z | mm | 0.018/0.020/0.015 | 0.018/0.020/0.015 | 0.018/0.020/0.015 | 0.018/0.020/0.015 | 0.018/0.020/0.015 |
| others | ||||||
| Total power capacity | KVA | 90 | 90 | 90 | 100 | 100 |
| Machine weight | t | 72 | 80 | 90 | 100 | 112 |
| Machine dimensions (L×W×H) | cm | 1300×880×800 | 1700×880×800 | 2100×880×800 | 1700×950×820 | 2100×950×820 |

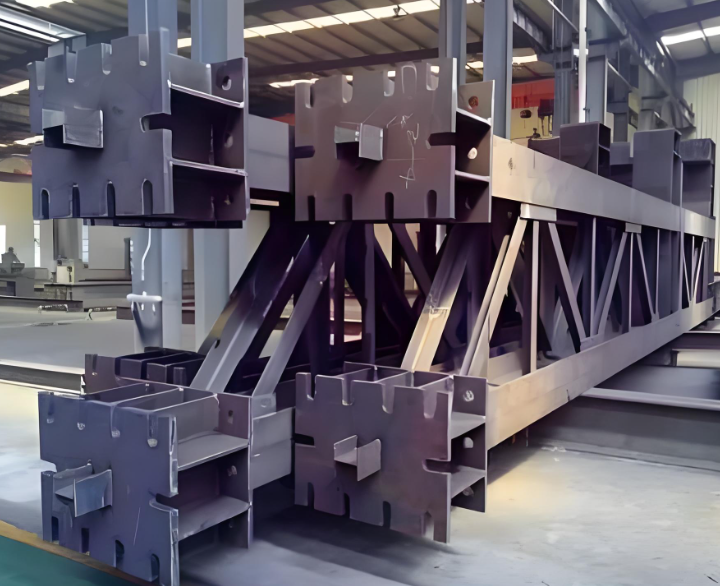

The machine tool is a mechanical processing equipment integrating advanced technology of machine, electricity and liquid, mainly used for the processing of plane, surface and hole. Widely used in machinery manufacturing industry, a variety of plates, boxes, racks and other complex parts of the rough and finish machining, the machine tool can achieve vertical boring and milling head transverse (Y axis), vertical movement (Z axis) and table longitudinal movement (X axis) of the three-axis linkage. Multi-process machining such as milling, boring, drilling, rigid tapping, reaming and countersinking can be performed.
