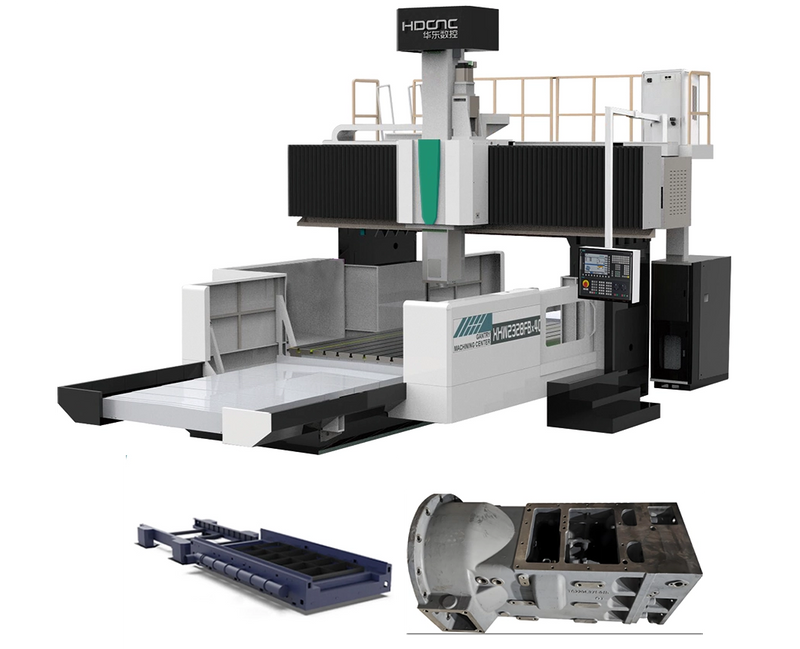

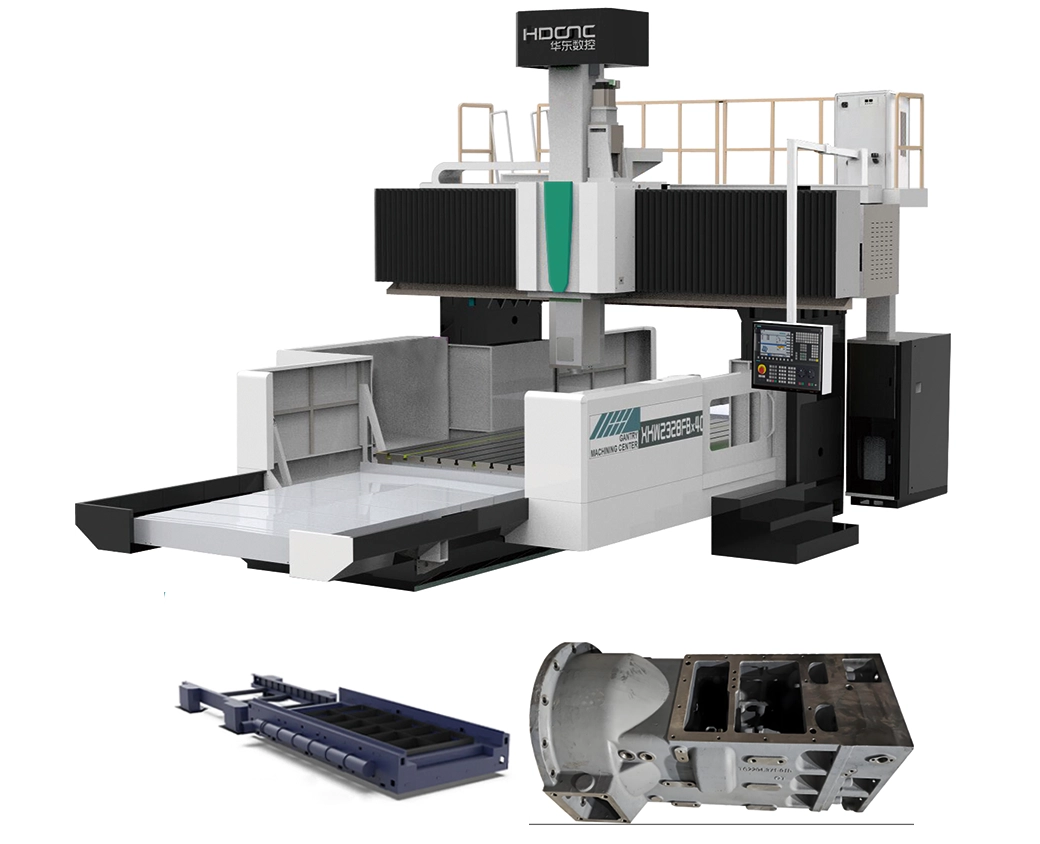

Features

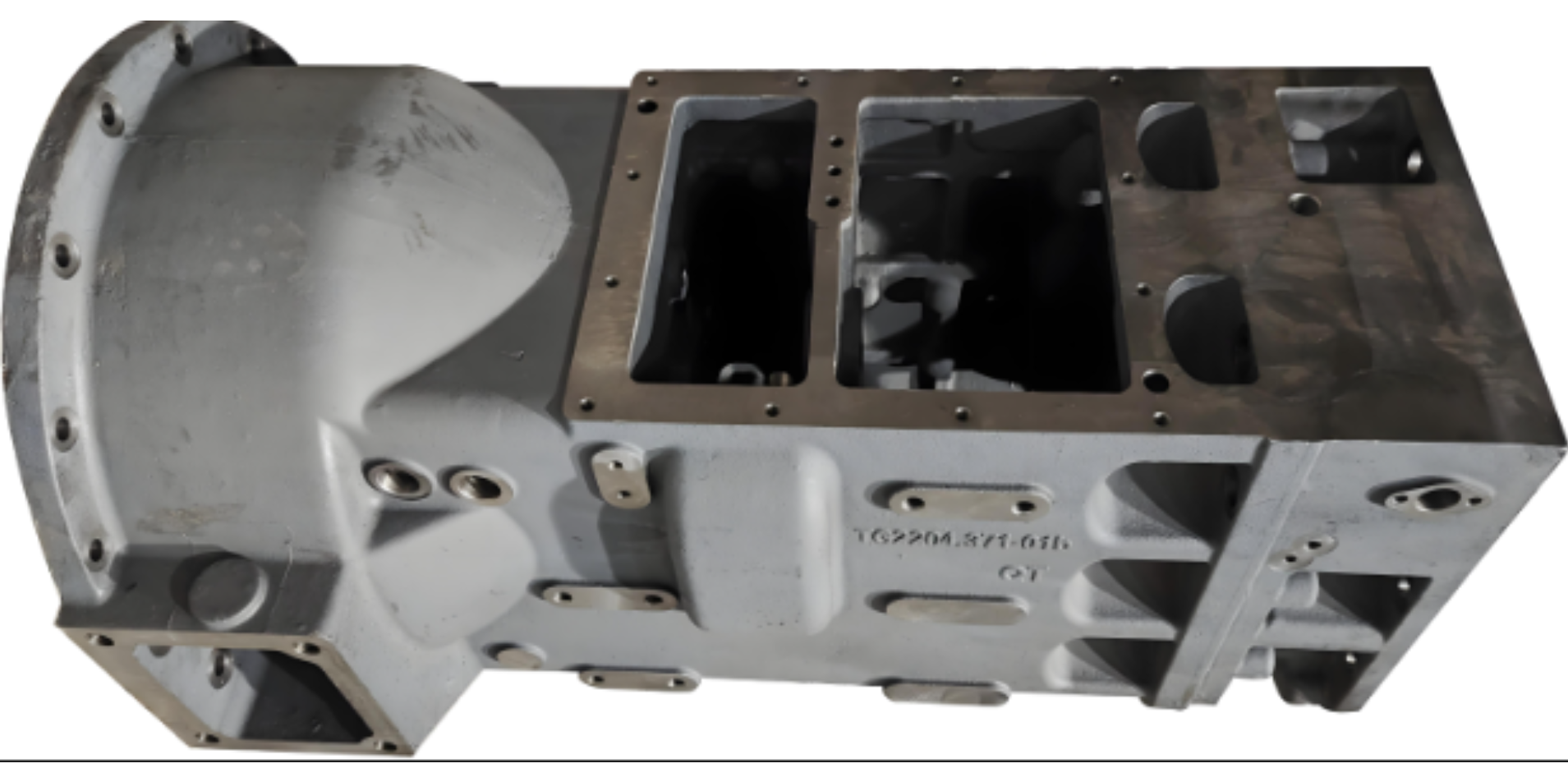

•The machine adopts high rigid gantry frame structure,and the important parts are resin sand castings, and through two artificial aging treatment, has enough static and dynamic rigidity and

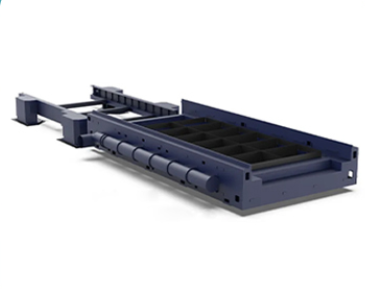

good precision retention. 产品图片 (2)

• All three shatts of the machine adopt high precision double nut pre-tightening ball screw, and pre-

stretching, driving rigidity is strong, the precision is stable and reliable.

• The X/Y axis adopts heavy-duty linear guide rail (ball ball) structure, the Z axis adopts rectangular

hard rail structure, and the Z axis is equipped with a diazo liquid balance cylinder, with small

motion inertia and tast response speed.

• Machine spindle adopts Taiwan high rigid spindle unit, long service life, high reliability, can choose

gear head drive or spindle motor direct drive structure.

Spindle drive with gearbox head Spindle drive with direct connection

spindle drive type

Horizontal beam linear guideway vertical orthogonal layout Linear Guideway installation

XKW23 series Optional milling head

Item	XKW2350FT×80	XKW2350FT×100	XKW2350FT×120	XKW2350FT×140	XKW2350FT×160	XKW2328B×30 XKW2328FB×30
Effective gantry width	5000	5000	5000	5000	5000	2800
X-axis stroke	8300	10300	12500	14500	16500	3200
Y-axis stoke	5600	5600	5600	5600	5600	3000
Z-axis stoke	1500	1500	1500	1500	1500	1000/1250
Distance from spindle end face to work surface	250~1750	250~1750	250~1750	250~1750	250~1750	190~1190/250~1250
Table size（W*L）	3500*8000	3500*10000	3500*12000	3500*1400	3500*16000	2000*3000
Table loading weight	40T	50T	60T	70T	80T	12T
T-Slot	13-36*250	36*250	36*250	36*250	36*250	13-22*150
Ram section size	450*450	450*450	450*450	450*450	450*450	T-type
Max spindle speed	3500rpm	3500rpm	3500rpm	3500rpm	3500rpm	6000/4000rpm
Spindle power	30/36	30/36（37）	30/36（37）	30/36（37）	30/36（37）	22/26
Spindle drive mode	Dual speed gearbox	Dual speed gearbox	Dual speed gearbox	Dual speed gearbox	Dual speed gearbox	Direct connection/gear head
Spindle taper	BT50	BT50	BT50	BT50	BT50	BT50
Tool storage capacity T	24/32/40/60	24/32/40/60	24/32/40/60	24/32/40/60	24/32/40/60	24/32/40/60
Total power supply capactiy	100	100	100	100	100	60
Machine dimension	2200090007500	2600090007500	3000090006200	3400090006200	3700090006200	900070006200
CNC system	SIEMENS 828D /FANUC 0i-MF	SIEMENS 828D /FANUC 0i-MF	SIEMENS 828D /FANUC 0i-MF	SIEMENS 828D /FANUC 0i-MF	SIEMENS 828D /FANUC 0i-MF	SIEMENS 828D /FANUC 0i-MF

Item	XKW2328B×40 XKW2328FB×40	XKW2328B×60 XKW2328FB×60	XKW2316A×20	XKW2317M*20	XKW2316A×30	XKW2316A×40
Effective gantry width	2800	2800	1600	1720	1600	1600
X-axis stroke	4200	6200	2000	2200	3000	4200
Y-axis stoke	3000	3000	1900	1700	1900	1900
Z-axis stoke	1000/1250	1000/1250	800	850	800	800
Distance from spindle end face to work surface	190~1190/250~1250	190~1190/250~1250	250~1050/190-990	340~1190	250~1050/190-990	250~1050/190-990
Table size（W*L）	2000*3000	2000*4000	1300*2000	1500*2200	1300*3000	1300*4000
Table loading weight	12T	16T	4T	4T	5T	6T
T-Slot	13-22*150	13-22*150	7-22×170	22×150	7-22×170	7-22×170
Ram section size	T-type	T-type	T-shaped guide rail	T-shaped guide rail/Square slide	T-shaped guide rail	T-shaped guide rail
Max spindle speed	6000/4000rpm	6000/4000rpm	6000rpm	6000rpm（1：1/1：1.5）	6000rpm	6000rpm
Spindle power	22/26	22/26	15/18.5	15/18.5	15/18.5	15/18.5
Spindle drive mode	Direct connection/gear head	Direct connection/gear head	Direct connection/gear head	Synchronous belt/BF box/gear head	Direct connection/gear head	Direct connection/gear head
Spindle taper	BT50	BT50	BT50	BT50	BT50	BT50
Tool storage capacity T	24/32/40/60	24/32/40/60	24/32/40/60	24/32/40/60	24/32/40/60	24/32/40/60
Total power supply capactiy	60	60	50	50	50	50
Machine dimension	1100070006200	1500070006200	6500×5500×4500	6500×5800×4500	8500×5500×4500	10500×5500×4500
CNC system	SIEMENS 828D /FANUC 0i-MF	SIEMENS 828D /FANUC 0i-MF	SIEMENS 828D /FANUC 0i-MF	SIEMENS 828D /FANUC 0i-MF	SIEMENS 828D /FANUC 0i-MF	SIEMENS 828D /FANUC 0i-MF

Item	XKW2322M*30	XKW2325M*40	XKW232440 XKW2332FT40	XKW2332FA40 XKW2332FT40	XKW2332FA60 XKW2332FT60	XKW2332FA×80 XKW2332FT×80	XKW2337FA×60 XKW2337FT×60
Effective gantry width	2200	2520	2400	3200	3200	3200	3700
X-axis stroke	3000	4200	4200	4200	6200	8300	6200
Y-axis stoke	2200(2400)	2520	2600	3400	3400	3400	3900
Z-axis stoke	1000	1000	1000	1250/1500	1250/1500	1250/1500	1250/1500
Distance from spindle end face to work surface	150~1150	175~1175	250~1250	250~1250/1750	250~1250/1750	250~1250/1750	250~1250/1750
Table size（W*L）	2000*3000	2000*4200	2000*4000	2500*4000	2500×6000	2500×8000	3000×6000
Table loading weight	9T	12T	16T	20T	24T	28T	24T
T-Slot	11-22×175	11-22×175	13-22*150	13-22*150	13-22*150	12-28×200	11-36×250
Ram section size	T-shaped guide rail/Square slide	T-shaped guide rail/Square slide	T-shaped guide rail/Square slide	400400/450450	400400/450450	400400/450450	400400/450450
Max spindle speed	6000rpm（1：1/1：1.5）	6000rpm（1：1/1：1.5）	6000/4000rpm	6000/4000rpm	6000/4000rpm	6000/4000rpm	3500rpm
Spindle power	15/18.5	15/18.5	22/26	22/26	22/26	22/26	22/26(30/37)
Spindle drive mode	Synchronous belt/BF box/gear head	Synchronous belt/BF box/gear head	Direct connection/gear head	Dual speed gearbox	Dual speed gearbox	Dual speed gearbox	Dual speed gearbox
Spindle taper	BT50	BT50	BT50	BT50	BT50	BT50	BT50
Tool storage capacity T	24/32/40/60	24/32/40/60	24/32/40/60	24/32/40/60	24/32/40/60	24/32/40/60	24/32/40/60
Total power supply capactiy	60	60	60	60	65	75	80
Machine dimension	9000×6000×5500	11000×6200×5500	1300065006000	1100070006200	15000×7000×6200	1900070006200	17000×7500×6800
CNC system	SIEMENS 828D /FANUC 0i-MF	SIEMENS 828D /FANUC 0i-MF	SIEMENS 828D /FANUC 0i-MF	SIEMENS 828D /FANUC 0i-MF	SIEMENS 828D /FANUC 0i-MF	SIEMENS 828D /FANUC 0i-MF	SIEMENS 828D /FANUC 0i-MF

Item	XKW2337FA×80 XKW2337FT×80	XKW2342FA×60 XKW2342FT×60	XKW2342FA×80 XKW2342FT×80	XKW2342FA×100 XKW2342FT×100
Effective gantry width	3700	4200	4200	4200
X-axis stroke	8300	6200	8300	10300
Y-axis stoke	3900	4400	4400	4400
Z-axis stoke	1250/1500	1250/1500	1250/1500	1250/1500
Distance from spindle end face to work surface	250~1250/1750	250~1250/1750	250~1250/1750	250~1250/1750
Table size（W*L）	3000×8000	3000×6000	3000×8000	3000×10000
Table loading weight	28T	32T	36T	40T
T-Slot	11-36×250	11-36×250	11-36×250	11-36×250
Ram section size	400400/450450	400400/450450	400400/450450	400400/450450
Max spindle speed	3500rpm	3500rpm	3500rpm	4000rpm
Spindle power	22/26(30/37)	22/26(30/37)	22/26(30/37)	22/26(30/37)
Spindle drive mode	Dual speed gearbox	Dual speed gearbox	Dual speed gearbox	Dual speed gearbox
Spindle taper	BT50	BT50	BT50	BT50
Tool storage capacity T	24/32/40/60	24/32/40/60	24/32/40/60	24/32/40/60
Total power supply capactiy	85	90	100	110
Machine dimension	19000×7500×6800	17000×8000×6800	19000×8000×6800	2100080006800
CNC system	SIEMENS 828D /FANUC 0i-MF	SIEMENS 828D /FANUC 0i-MF	SIEMENS 828D /FANUC 0i-MF	SIEMENS 828D /FANUC 0i-MF

Description	Unit	XKW2322*30	XKW2322*40	XKW2328*40	XKW2328*60		XKW2332*60	XKW2332*80
		XKW2322F*30	XKW2322F*40	XKW2328F*40	XKW2328F*60		XKW2332F*60	XKW2332F*80
Processing area
Gantry effective width	mm	2200	2200	2800	2800		3200	3200
X Travel	mm	3000	4000	4200	6200		6200	8300
Y Travel	mm	2400	2400	3000	3000		3400	3400
Z Travel	mm	1000	1000	1000/1250	1000/1250		1250/1500	1250/1500
Spindle nose to table face	mm	190-1190/250-1250					250-1250/1750
Table
Table size(W*L)	mm	2000*3000	1800*4000	2000*4000	2000*6000		2500*6000	2500*8000
Max loading	KG	6000	10000	16000	20000		24000	28000
Table T-slot	r/min	9-22*180	9-22*180	9-28*200	9-28*200		12-28*200	12-28*200
Spindle
Ram form and dimension	mm	T type guide
		Square Ram 400*400
Maximum spindle speed	rpm	6000/4000rpm
Spindle power	KW	22/26
Spindle form		Direct connecting/ZF /Gearbox
Spindle cone hole		BT50
ATC(options)
Cutter storage capacity	T	24/32/40/60
Maximum tool diameter	mm	Φ125/230
Maximum tool length	mm	300
Maximum tool weight	KG	15
Others
Total power supply capacity	VA	60
Machine too weight	t	35	40	45	55	65			75
Machine tool size	cm	900600550	1100600550	1100650550	1500650550	1500700620			1900700620
CNC system		SIEMENS 828D/Fanuc 0i-MF
