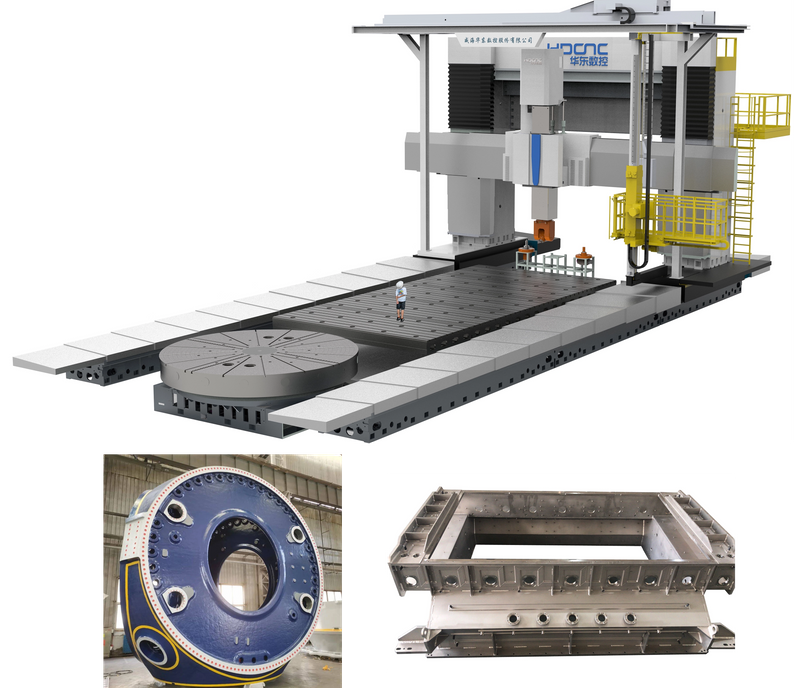

Features

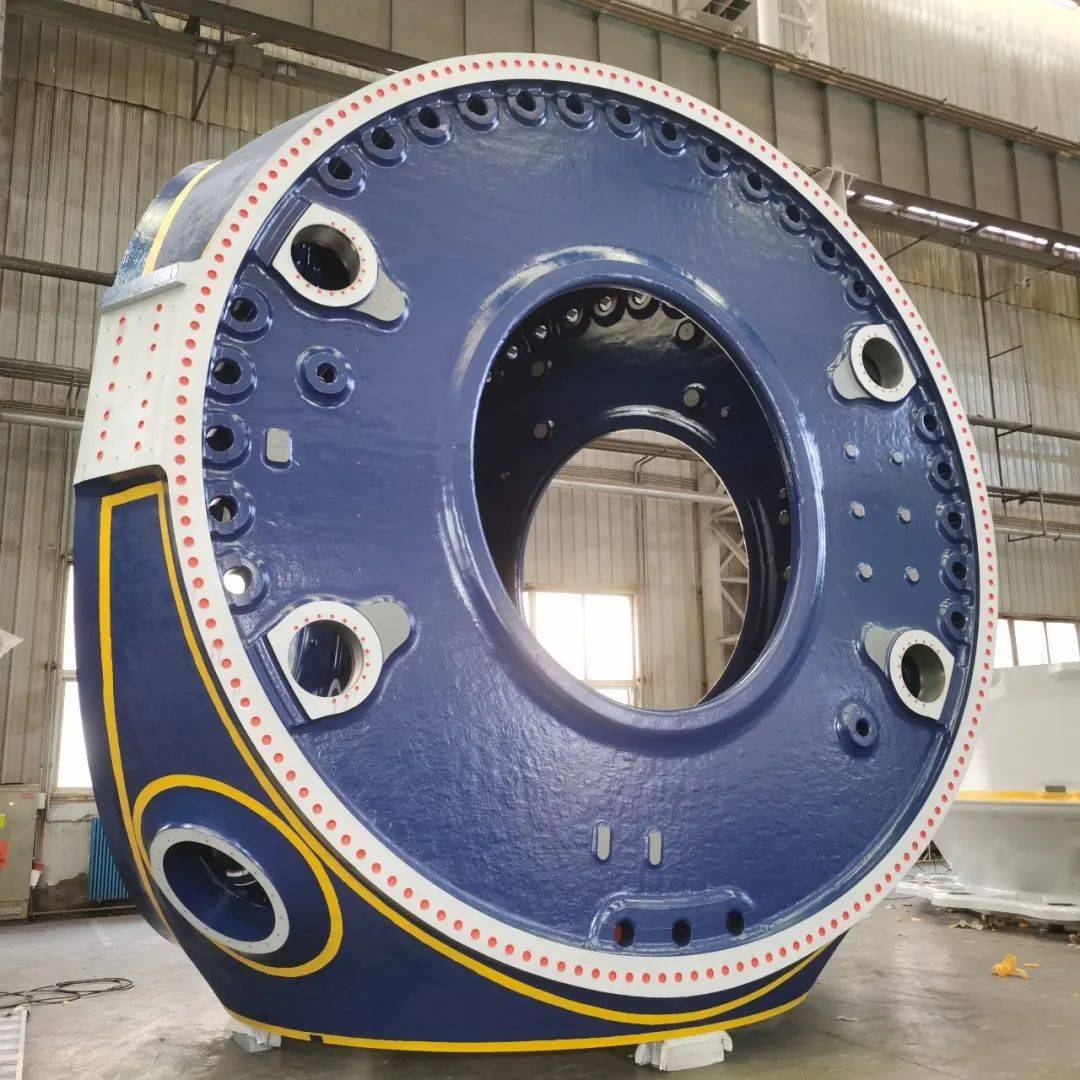

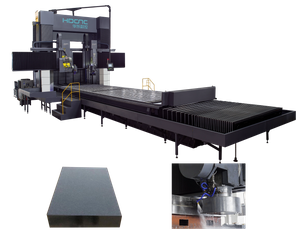

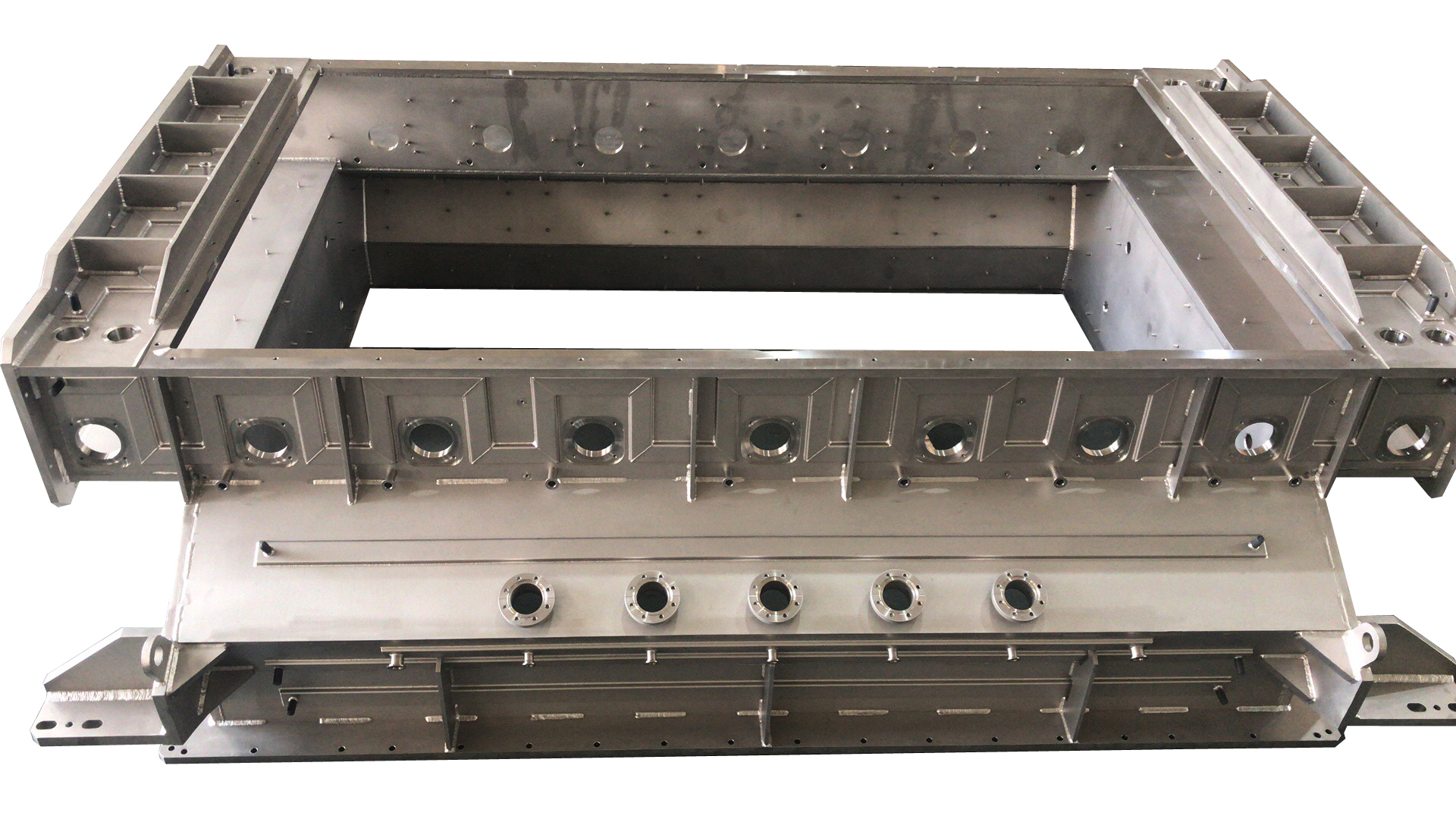

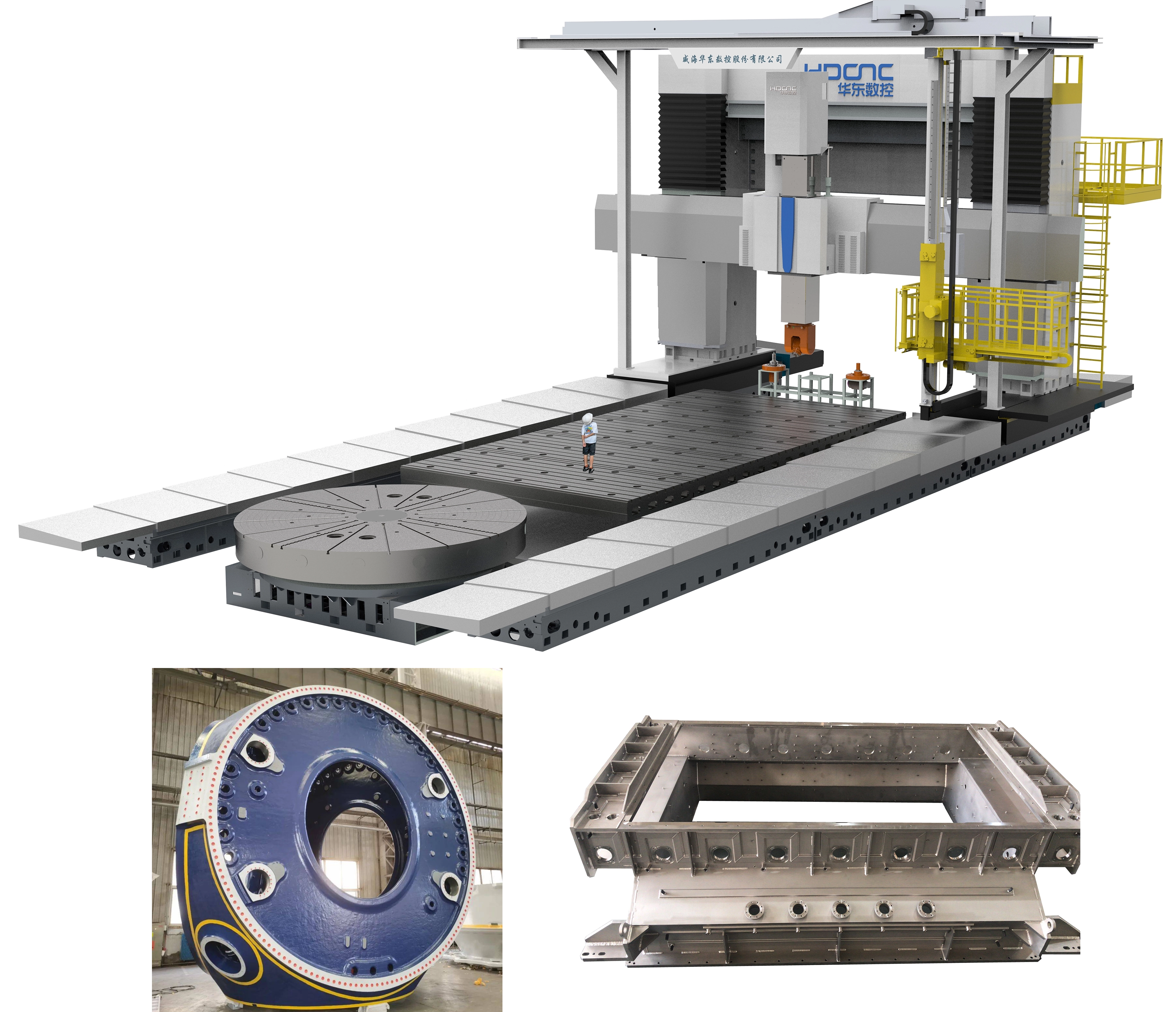

The machine structure layout is advanced and reasonable, beautiful appearance. The longitudinal guideadopts large size linear rolling guide, with high motion sensitivity. The horizontal guide rail adoptsvertical and horizontal staggered sliding guide rail structure with unloading device; Lifting guide raiadopts large tolerance structure; The large structure of the foundation is large, and the layout hasenough reinforcement plate; The machine has good rigidity, stability and bearing capacity. Millingboring, drilling and other processes, a high degree of automation. Applicable to aerospace, mold, shipautomobile and other large and medium-sized complex parts manufacturing fields.
Technical Parameters
Model Project | XKW2842 | XKW2850 | XKW2863 | |
Processing range | ||||
Effective width of the gantry mm | 4200 | 5000 | 6300 | |
X-axis Travel mm | 10800/12800/14800/16800/18800/20800 | |||
Y-axis Travelmm | 5000 | 5800 | 7100 | |
Z-axis Travelmm | 1250/1500 | 1500/2000 | ||
W-axis Travel | 2250/3250 | 2250/3250 | 4000 | |
Distance from the spindle end face to the worktable Surface mm | 200-3000/4000 | 200-5000 | ||
Worktable | ||||
Work surface size (width ×length)mm | 3000×10000/12000/14000/ 16000/18000/20000 | 4000×10000/12000/14000/ 16000/18000/20000 | 5000×10000/12000/14000/ 16000/18000/20000 | |
Worktable Load Bearing T/㎡ | 15T/㎡ | |||
Worktable T-slot (size × Spacing） | 36×250 | |||
Spindle | ||||
Ram form/crosssectional dimensions
| Square slide pillow 500×500 | Square slide pillow 610×610 | ||
Spindle maximum Speed rpm | 4000/3500 | 2000/1500 | ||
Spindle power kW | 44/54 | 44/54(51/68.4) | ||
Max spindle torque（continuous/30min）Nm | 1825/2242 | 1825/2242（3250/4358） | ||
Spindle drive form | Self-made gearbox + two-speed gearbox | |||
Spindle taper hole | BT50 | |||
Tool magazine（options） | ||||
Tool magazine capacity T | 24/32/40/60 | |||
Max tool diameter（full/empty）mm | Φ125/230 | |||
Max tool length mm | 350 | |||
Max tool length kg | 25 | |||
Other | ||||
Total power supply kVA | 120 | 120 | 140 | |
Machine weight（including clamping platform）t | 125/140/155/170/185/200 | 130/150/170/190/210/230 | 160/180/200/220/240/260 | |
Machine tool dimensions | 18000/20000/22000/24000/ 26000/28000×9000×8800 | 18000/20000/22000/24000/ 26000/28000×10000×8800 | 18000/20000/22000/24000/ 26000/28000×11500×1000 | |
（L×W×H）mm | ||||
CNC control | SIEMENS 828D/FANUC 31i-MF | SIEMENS 828D/FANUC 31i-MF | SIEMENS 828D/FANUC 31i-MF | |
