Main features:This series of products is a mobile structure with stable performance, easy operation, and complete functions. It has the characteristics of high precision, high efficiency, high automation, and high intelligence.
It has functions such as automatic compensation, power-off protection for roll center alignment, automatic balancing of grinding wheel, automatic dressing of grinding wheel, simulation grinding, short stroke grinding, chamfering grinding, constant linear velocity grinding, variable speed grinding, static pressure support grinding, fault alarm diagnosis, etc.
It can achieve high-precision complex machining of cylindrical, convex concave curves, CVC curves, arbitrary curves, etc.
Adaptation field:Suitable for high-precision, high surface quality, and high-efficiency grinding processing in the steel and non-ferrous industries such as cold-rolled thin plates, aluminum foils, and copper foils.
Grinding machine specifications and main technical parameters
Item | Unit | Parameters |
Maximum grinding diameter | mm | 1000/1250/1600 |
Minimum grinding diameter | mm | 100/200/250 |
Maximum workpiece processing length | mm | 4000/5000/6000/8000/10000/12000 |
Micro feed (maximum convexity and concavity) | mm | ±1.5mm |
Maximum workpiece weight (grinding) | T | 20 |
Center height | mm | 950 |
Workpiece rotate speed | rpm | 5-60 |
Grinding wheel feed resolution | mm | 0.001 |
Working speed of grinding wheel spindle | rpm | 320-1600 |
Maximum cutting line speed of grinding wheel | m/s | 45 |
Maximum diameter of grinding wheel | mm | 915 |
Minimum diameter of grinding wheel | mm | 480 |
Grinding wheel width | mm | 100 |
Diameter of the inner hole of the grinding wheel | mm | 304.8 |
Measuring range | mm | （100-1000）/200-1250/（250-1600） （Based on the specimen drawing） |
Power capacity | KW | 200 |
CNC system | SINUMERIK ONE |
Cylindrical surface grinding：
Roundness | ≤0.002 mm |
Cylindricity | ≤0.002 mm/m |
Roll shape error | ≤ 0.002mm/m |
Surface roughness | Ra: 0.1 μm |
Mid convex (concave) grinding：
Medium to high symmetry | 100:0.002 |
Roundness | ≤0.002 mm |
Roll shape error | ≤ 0.002 mm/m |
Surface roughness | Ra: 0.1 μm |
Arbitrary curve grinding：
Roll shape error | ±0.002 mm/m |
Coaxiality | ≤0.002 mm |
Surface roughness | Ra: 0.1 μm |

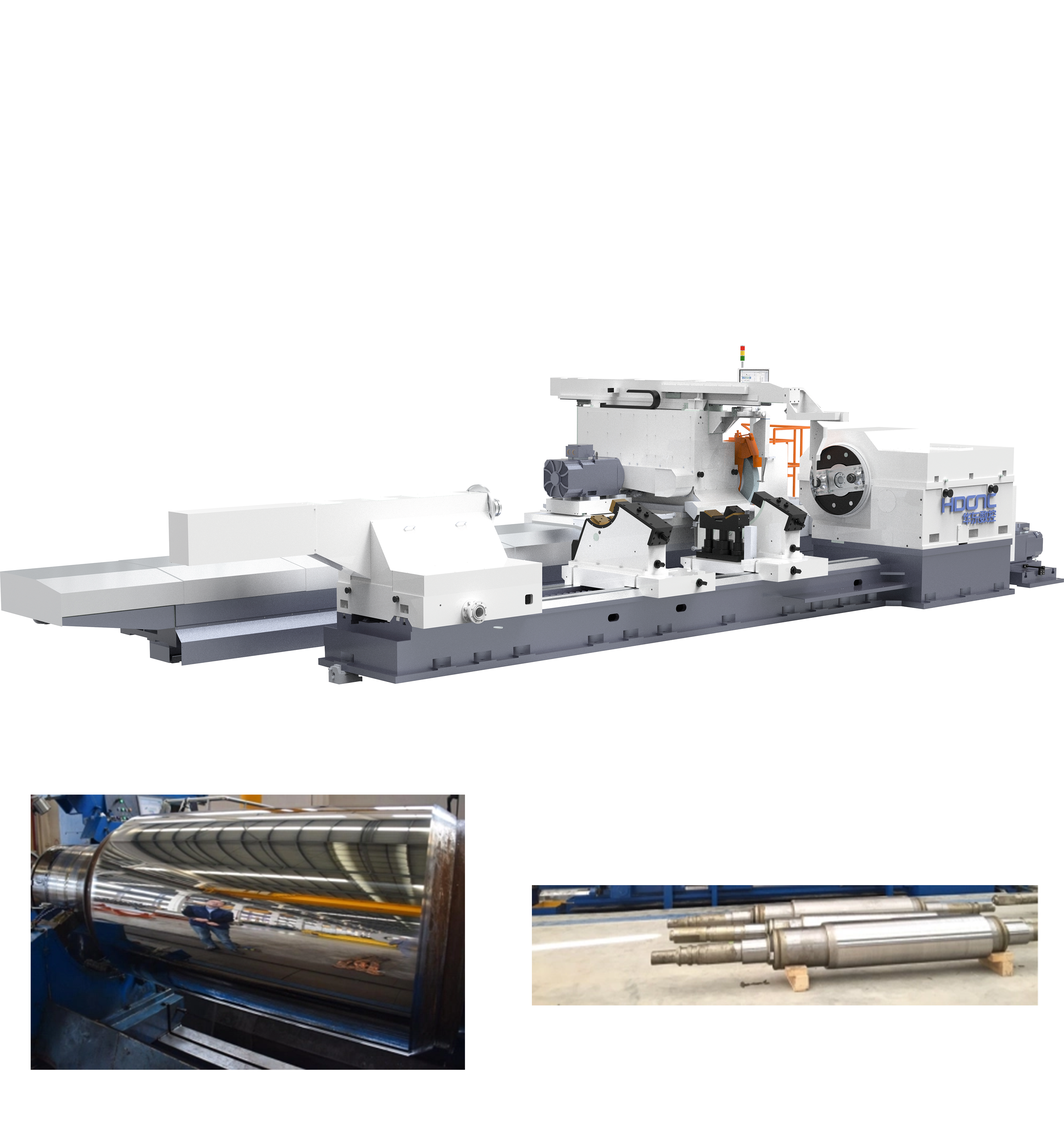

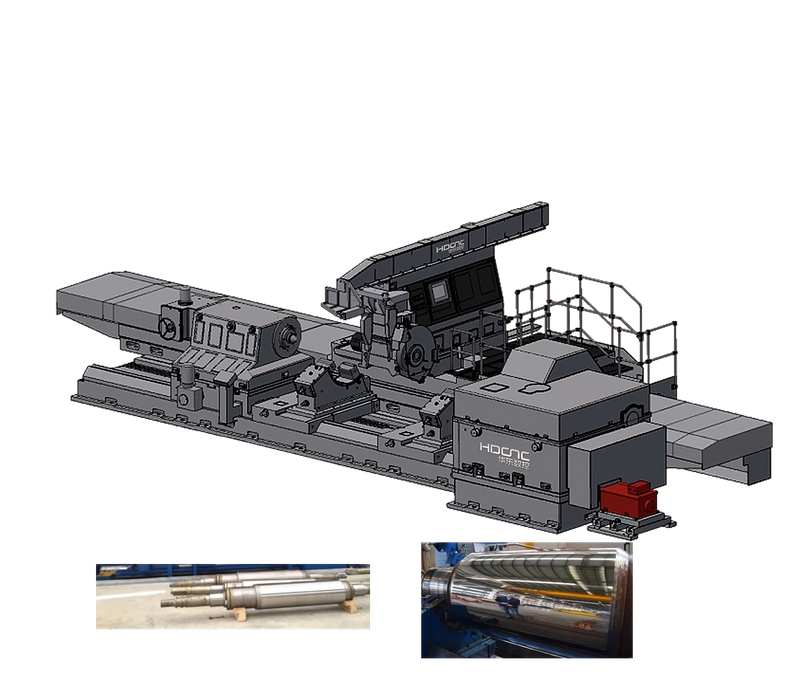

Overall schematic diagram of grinder

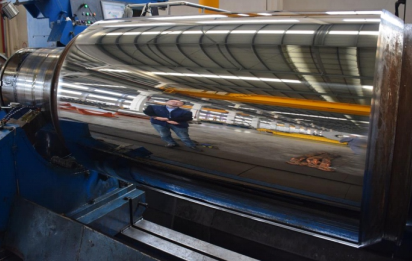

Processing case
Stainless steel industry
Ca rindustry
