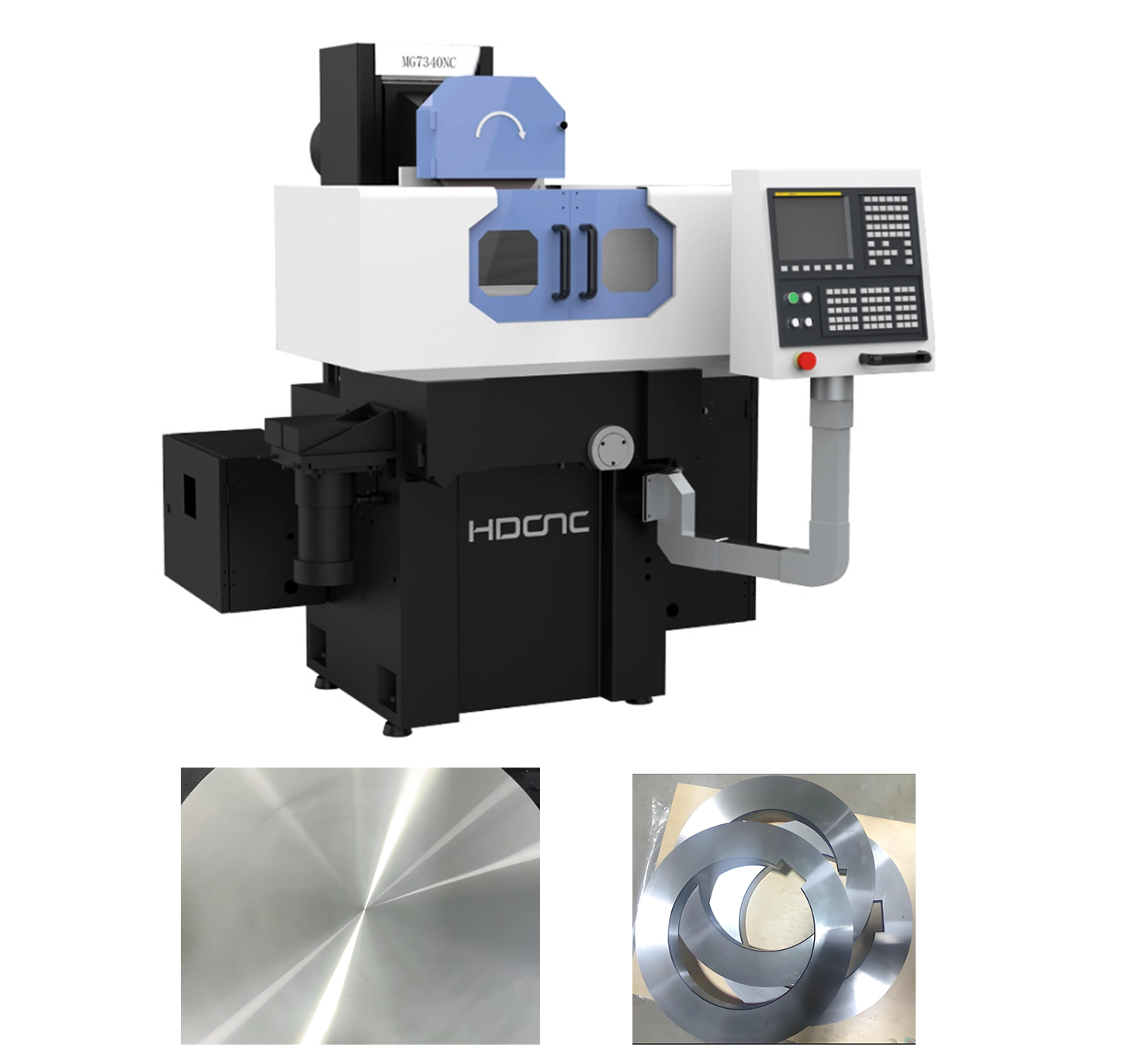

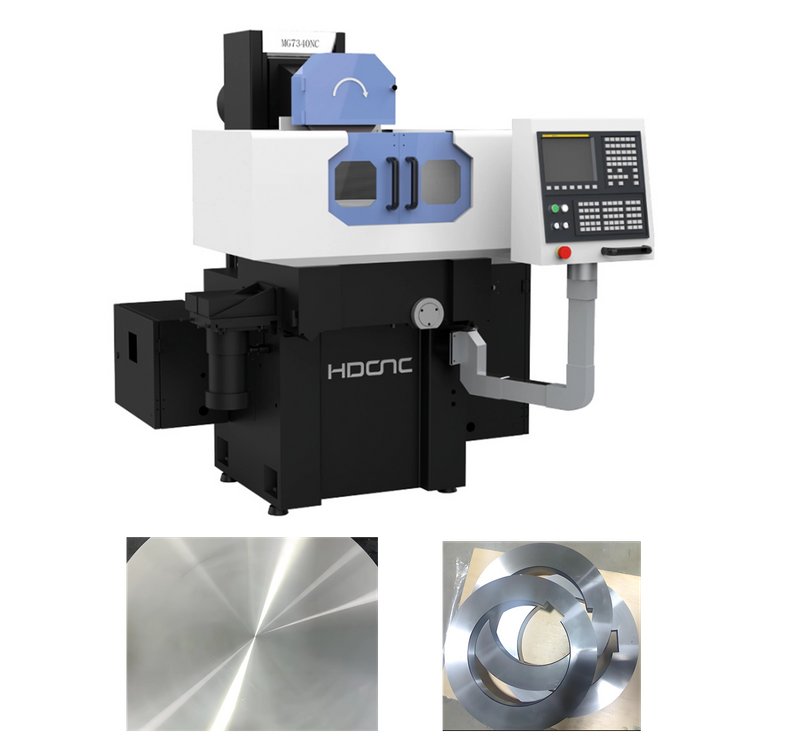

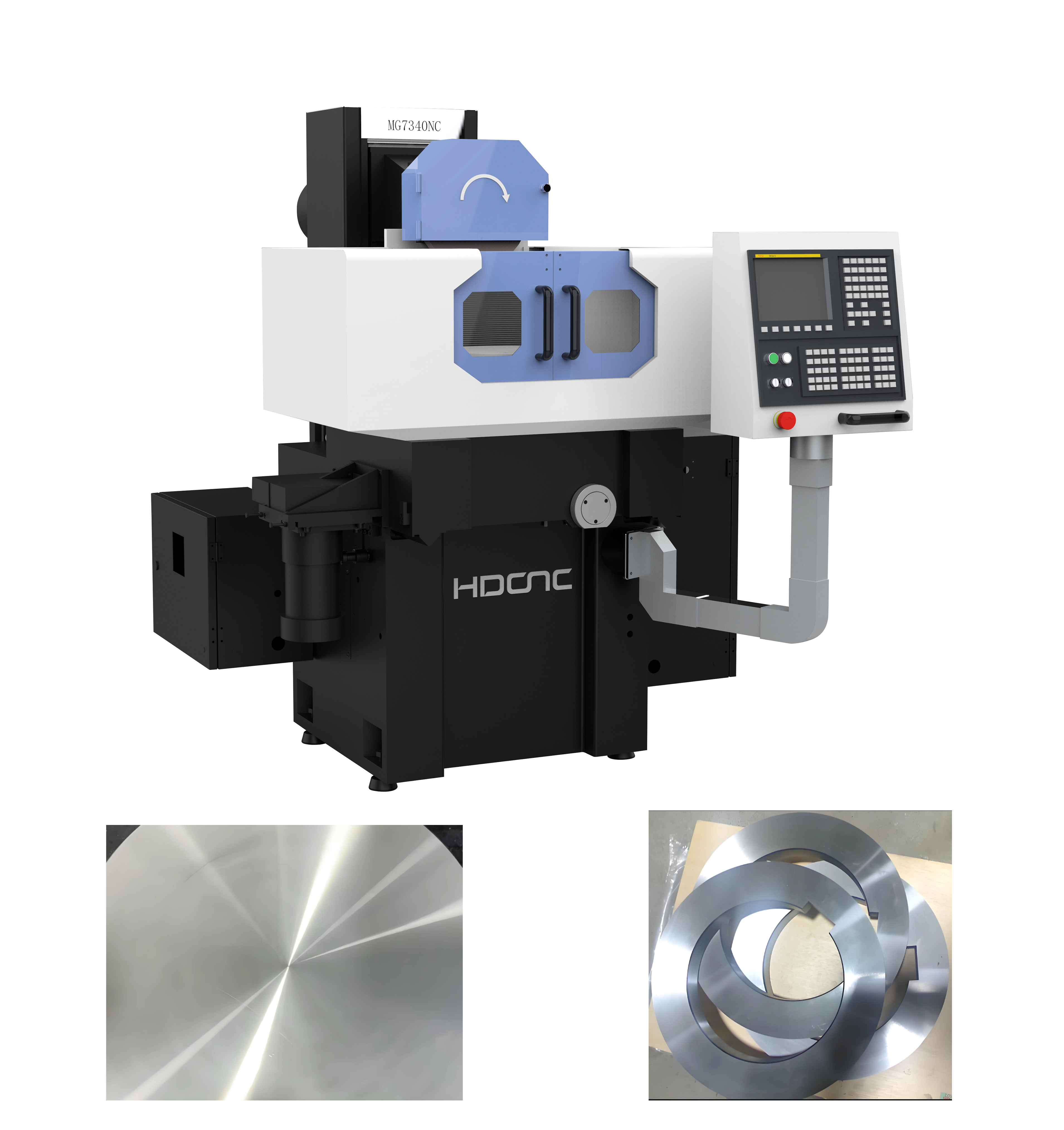

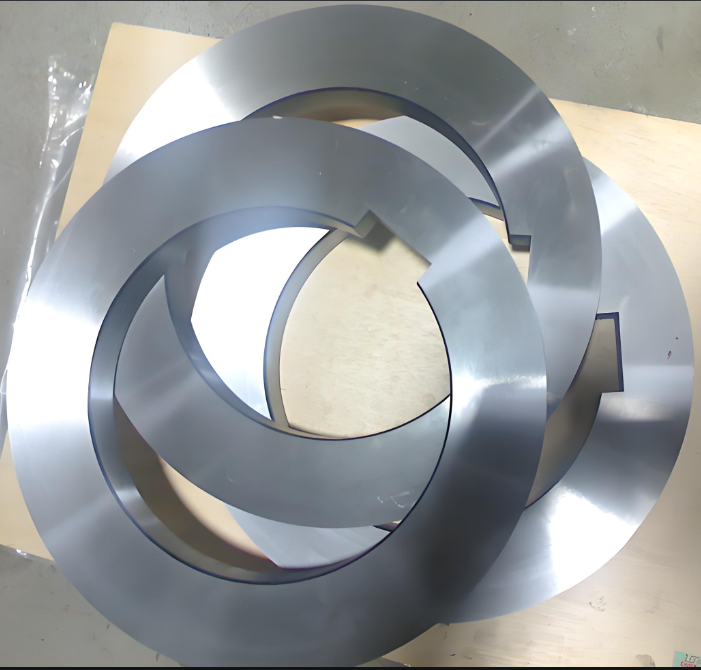

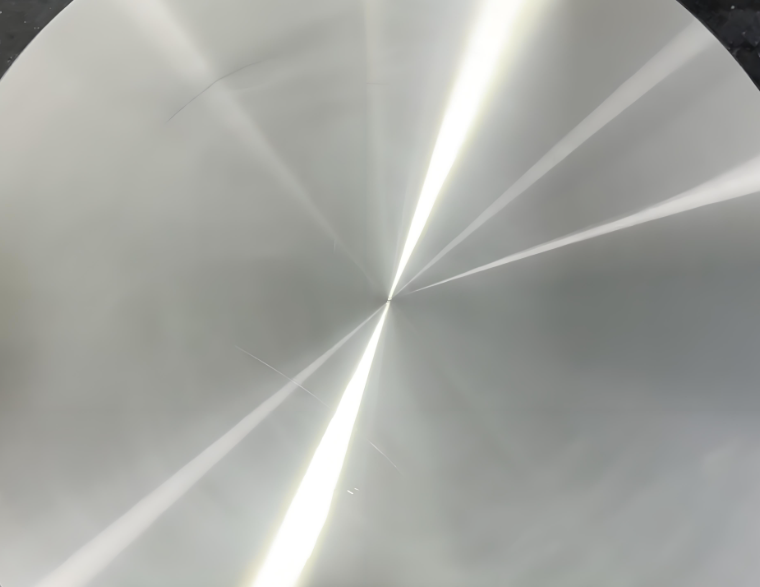

The machine tool adopts a cross drag layout, the table adopts high-precision hydrostatic rotary table, CNC control system, high feed sensitivity and high efficiency.
| Quantity: | |
|---|---|
MG7330NC 、MG7340NC、MG7350NC
HDCNC
Item/Parameters | Unit | MG7330NC | MG7340NC | MG7350NC | |
Worktable diameter | mm | 300 | 400 | 500 | |
Worktable speed | RPM/min | 60-160 | 40-140 | 20-120 | |
The maximum distance from the centerline of the grinding wheel spindle to the worktable | mm | 350 | 350 | 350 | |
Horizontal movement of worktable | Automatic feed rate | mm/stork | 0.005～12 | 0.005～12 | 0.005～12 |
Motion speed | m/min | 0～1 | 0～1 | 0～1 | |
Micro feed rate of electronic handwheel | mm/div | 0.005 | 0.005 | 0.005 | |
Grinding wheel | Grinding wheel size (outer diameter * thickness * inner diameter) | mm | 350*40*127 | 350*40*127 | 350*40*127 |
Spindle frequency conversion speed | rpm | 1000-1500 | 1000-1500 | 1000-1500 | |
Vertical movement of grinding head | Motion speed | m/min | 0～1 | 0～1 | 0～1 |
Automatic feed rate | mm/stork | 0.001～0.05 | 0.001～0.05 | 0.001～0.05 | |
Micro feed rate of electronic handwheel | mm/div | 0.001 | 0.001 | 0.001 | |
Spindle motor | kW | 5.5 | 5.5 | 5.5 | |
Hydraulic pump motor | kW | 2.2 | 2.2 | 2.2 | |
Worktable rotary motor | kW | 1.5 | 1.5 | 1.5 | |
Gross weight | kg | 2500 | 3000 | 4000 | |
Structural characteristics
This machine tool adopts a cross drag layout, with polytetrafluoroethylene soft tapes attached to the forward guide rails and forced lubrication by intermittent lubrication pumps.
The grinding head spindle uses high-precision angular contact bearings and a high rigidity spindle sleeve structure, with high rotation accuracy and easy use and maintenance. The column adopts a double-layer wall structure, and the axis of the grinding head spindle is parallel to the worktable, installed horizontally.

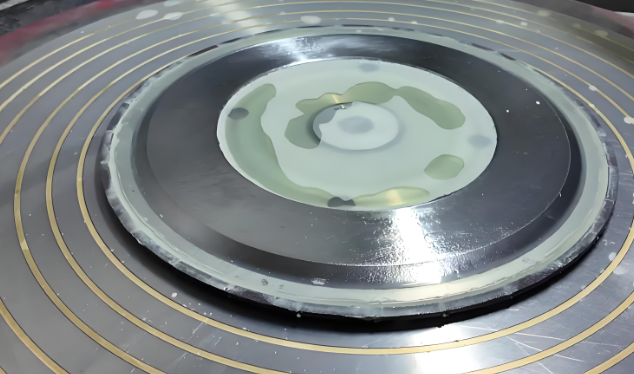

The worktable adopts a high-precision static pressure turntable with high rotation accuracy, and the rotation motion is driven by an AC variable frequency motor through a toothed belt; High precision ball screws, AC servo motors, and CNC systems are used for the feed of the front, rear, upper, and lower axes, with high feed sensitivity, easy operation, and high efficiency.
Item/Parameters | Unit | MG7330NC | MG7340NC | MG7350NC | |
Worktable diameter | mm | 300 | 400 | 500 | |
Worktable speed | RPM/min | 60-160 | 40-140 | 20-120 | |
The maximum distance from the centerline of the grinding wheel spindle to the worktable | mm | 350 | 350 | 350 | |
Horizontal movement of worktable | Automatic feed rate | mm/stork | 0.005～12 | 0.005～12 | 0.005～12 |
Motion speed | m/min | 0～1 | 0～1 | 0～1 | |
Micro feed rate of electronic handwheel | mm/div | 0.005 | 0.005 | 0.005 | |
Grinding wheel | Grinding wheel size (outer diameter * thickness * inner diameter) | mm | 350*40*127 | 350*40*127 | 350*40*127 |
Spindle frequency conversion speed | rpm | 1000-1500 | 1000-1500 | 1000-1500 | |
Vertical movement of grinding head | Motion speed | m/min | 0～1 | 0～1 | 0～1 |
Automatic feed rate | mm/stork | 0.001～0.05 | 0.001～0.05 | 0.001～0.05 | |
Micro feed rate of electronic handwheel | mm/div | 0.001 | 0.001 | 0.001 | |
Spindle motor | kW | 5.5 | 5.5 | 5.5 | |
Hydraulic pump motor | kW | 2.2 | 2.2 | 2.2 | |
Worktable rotary motor | kW | 1.5 | 1.5 | 1.5 | |
Gross weight | kg | 2500 | 3000 | 4000 | |
Structural characteristics
This machine tool adopts a cross drag layout, with polytetrafluoroethylene soft tapes attached to the forward guide rails and forced lubrication by intermittent lubrication pumps.
The grinding head spindle uses high-precision angular contact bearings and a high rigidity spindle sleeve structure, with high rotation accuracy and easy use and maintenance. The column adopts a double-layer wall structure, and the axis of the grinding head spindle is parallel to the worktable, installed horizontally.
The worktable adopts a high-precision static pressure turntable with high rotation accuracy, and the rotation motion is driven by an AC variable frequency motor through a toothed belt; High precision ball screws, AC servo motors, and CNC systems are used for the feed of the front, rear, upper, and lower axes, with high feed sensitivity, easy operation, and high efficiency.
