一、Instroduction

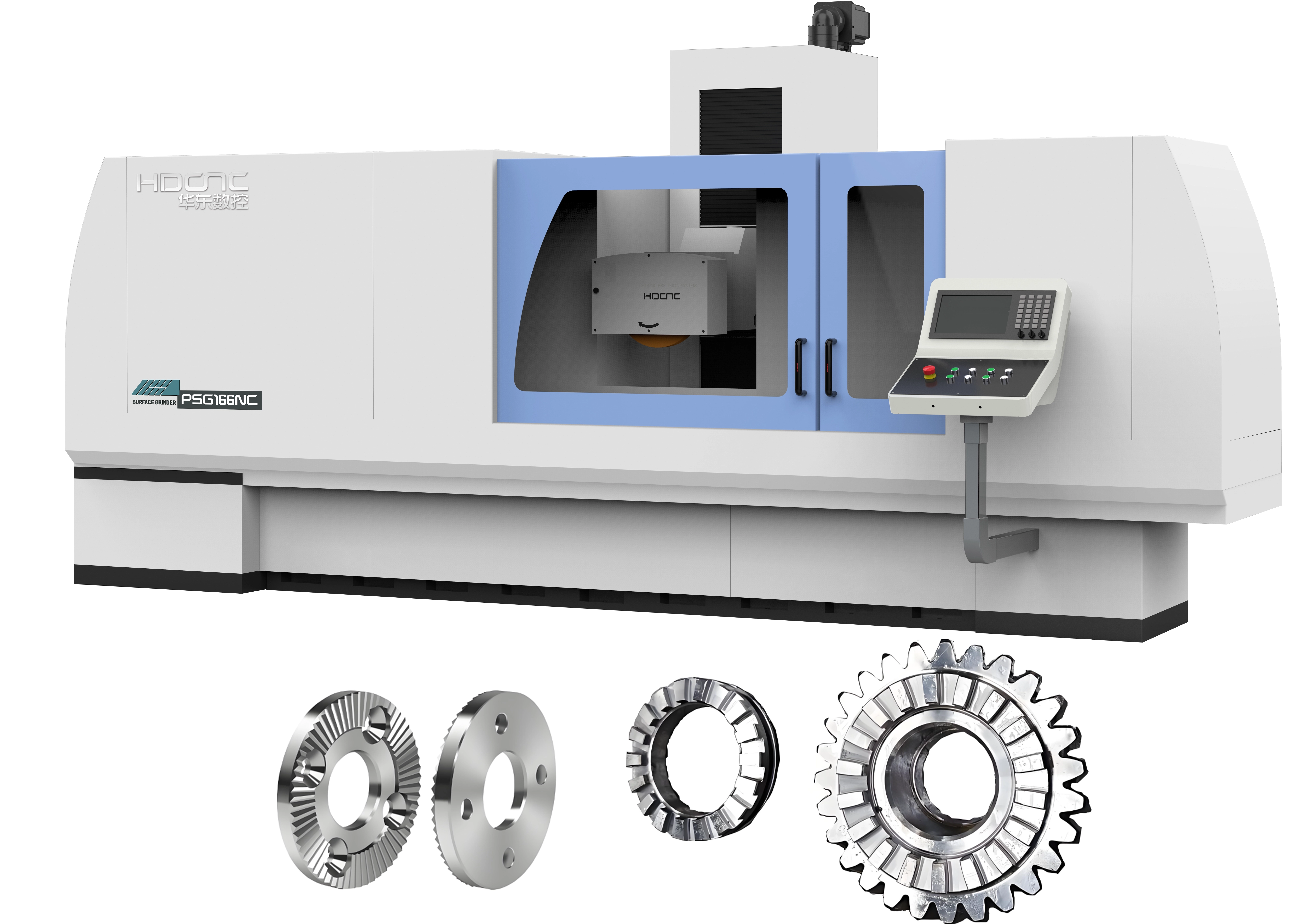

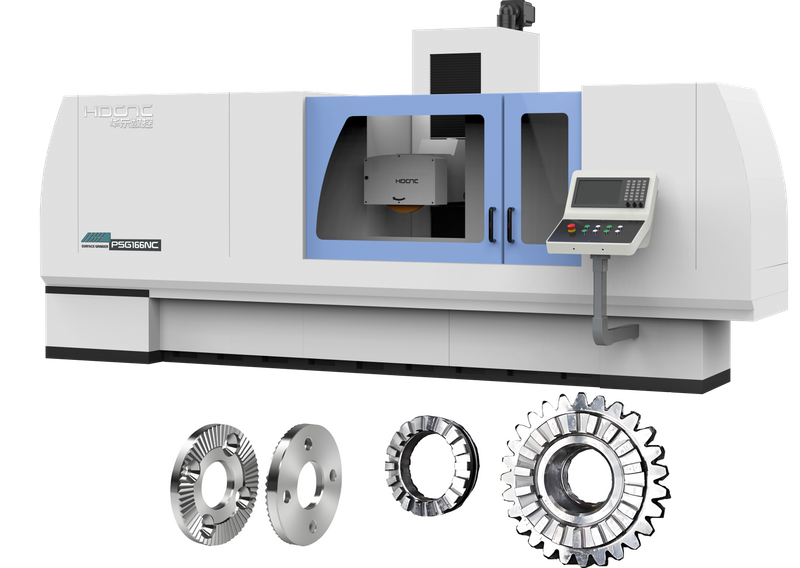

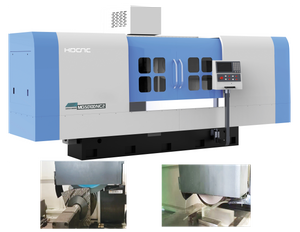

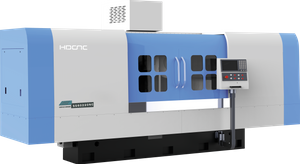

1. This product is a column-moving, precision CNC surface grinder with a T-shaped layout. The machine is designed with a rational structure, providing sufficient static, dynamic, and thermal rigidity for stable output. Advanced technology ensures the system maintains high dynamic performance. The selected servo drive system features high accuracy, reliability, and fast response speed.
2. The grinding head moves vertically along the column guideway (Y-axis), the column moves horizontally along the rear guideway of the bed (Z-axis), and the worktable moves laterally along the bed guideway (X-axis). Controlled by the CNC system, Y and Z axes can operate in tandem with a roller dresser to perform special-shaped wheel dressing, achieving profile surface grinding.
The X and Z axes can also operate in tandem to enable the grinding of curved surfaces, such as arcs.
3. The column has a box frame structure with a double-wall design, enhancing structural rigidity. Its base movement guideway uses a high-precision linear guide with pre-loaded, gap-free movement.
The forward and backward motion is driven by a servo motor paired with a high-precision linear encoder, which drives a precision ball screw for accurate feed.
4. The worktable is equipped with a high-precision linear guide with pre-loaded, gap-free movement, moving laterally along the bed guideway.
Its motion is driven by a servo motor, which drives a precision ball screw for rapid movement and precise feed.

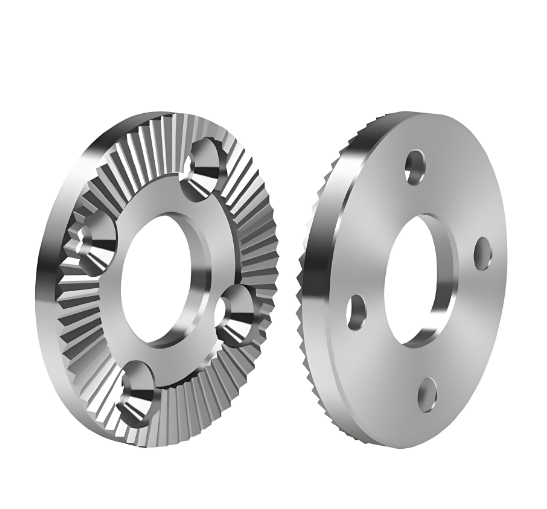

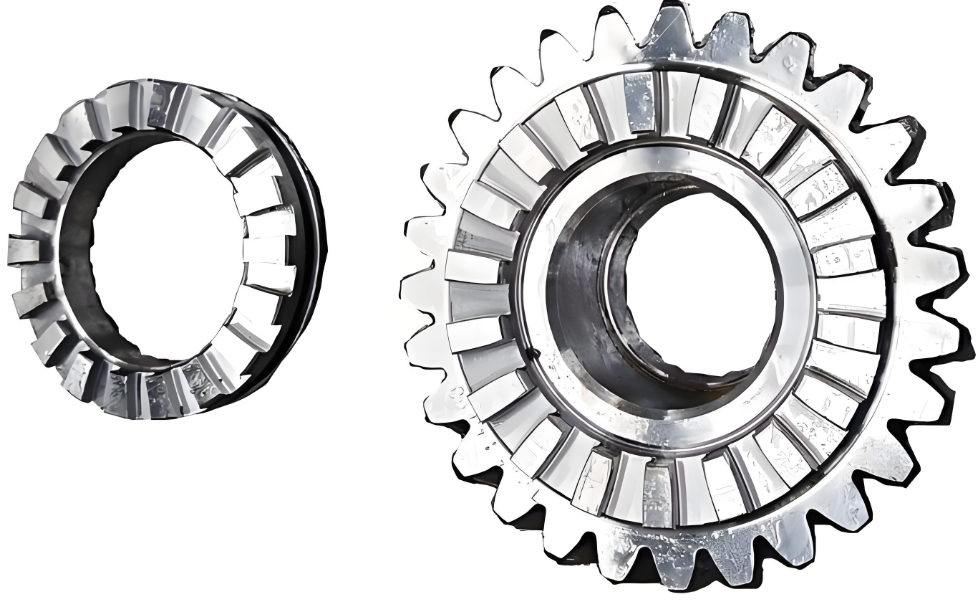

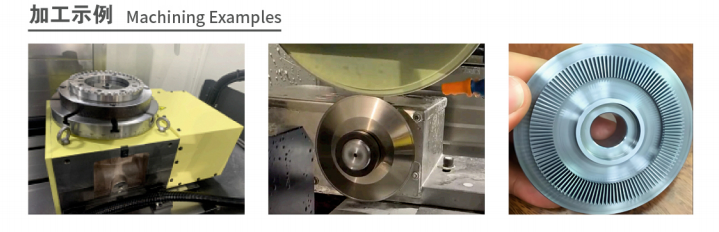

5. A CNC rotary table is installed on the worktable as the fourth axis of the main machine, enabling precise indexing and rotation for the grinding of gear shafts and gear profiles.
6. The machine is equipped with a diamond roller dressing device, specifically designed for dressing the wheel’s gear profile.
二、 Main Technical Specifications of the Machine Tool
Item | Unit | PSG166NC | |
Worktable Area | mm | 1600×600 | |
Maximum Grinding Dimensions (Length × Width) | mm | 1600×600 | |
Maximum Distance from Spindle Axis to Worktable Surface | mm | 820 | |
Maximum Allowable Workpiece Height | mm | 570 | |
Number of T-slots | 3 | ||
T-slot Width | mm | 18 | |
Worktable Longitudinal Movement Speed | Rapid Traverse Rate | m/min | 0.1-25 |
Electronic Handwheel Feed Rate | mm/gra | 0.005 | |
Horizontal Movement of the Grinding Head | Rapid Traverse Rate | m/min | 0.03-3 |
Electronic Handwheel Feed Rate | mm/gra | 0.001 | |
Vertical Movement of the Grinding Head | Rapid Traverse Rate | m/min | 0.03-3 |
Electronic Handwheel Feed Rate | mm/gra | 0.001 | |
Grinding Wheel | Rotational Speed | Rpm | 1450 |
Dimensions | mm | ∅350 Ø350 profiling grinding wheel | |
Spindle Motor | kw | 11KW | |
Longitudinal Servo Motor Torque | N*m | 36 | |
Transverse Servo Motor Torque | N*m | 21 | |
Vertical Servo Motor Torque | N*m | 36 | |
CNC rotary table | Spindle Positioning Outer Diameter | mm | ∅160 |
Indexing Accuracy | 〞 | 30〞 | |
Repeatability Accuracy | 〞 | 6〞 | |
Lubrication Motor | kw | 0.06 | |
Coolant Pump Motor | kw | 0.25 | |
Maximum Load Capacity of the Worktable | kg | 1230 | |
Machine Height | mm | 2900 | |
Floor Area | mm | 4900×3000 | |
Gross Weight | kg | About 10,000 | |
