1、Structural characteristics of machine tools

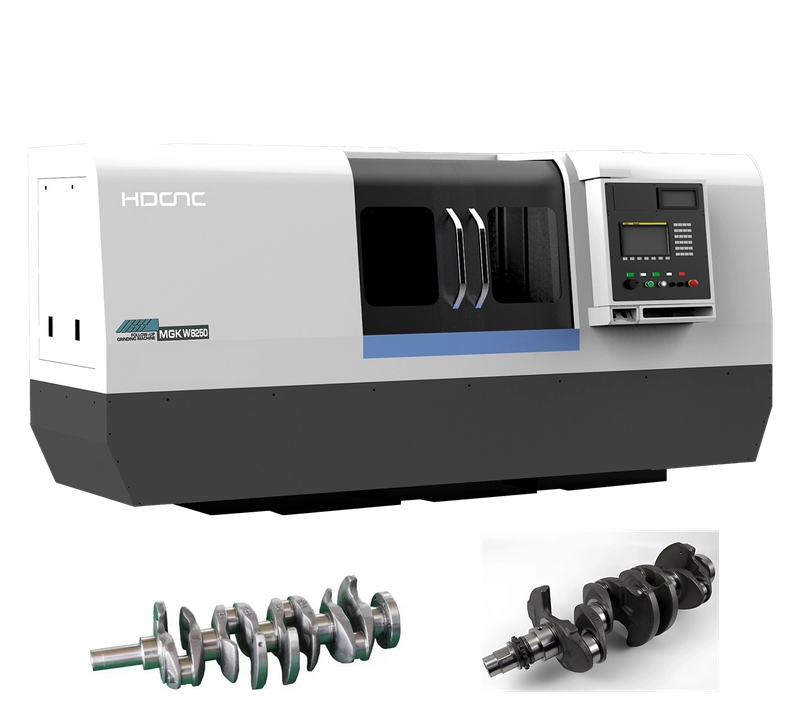

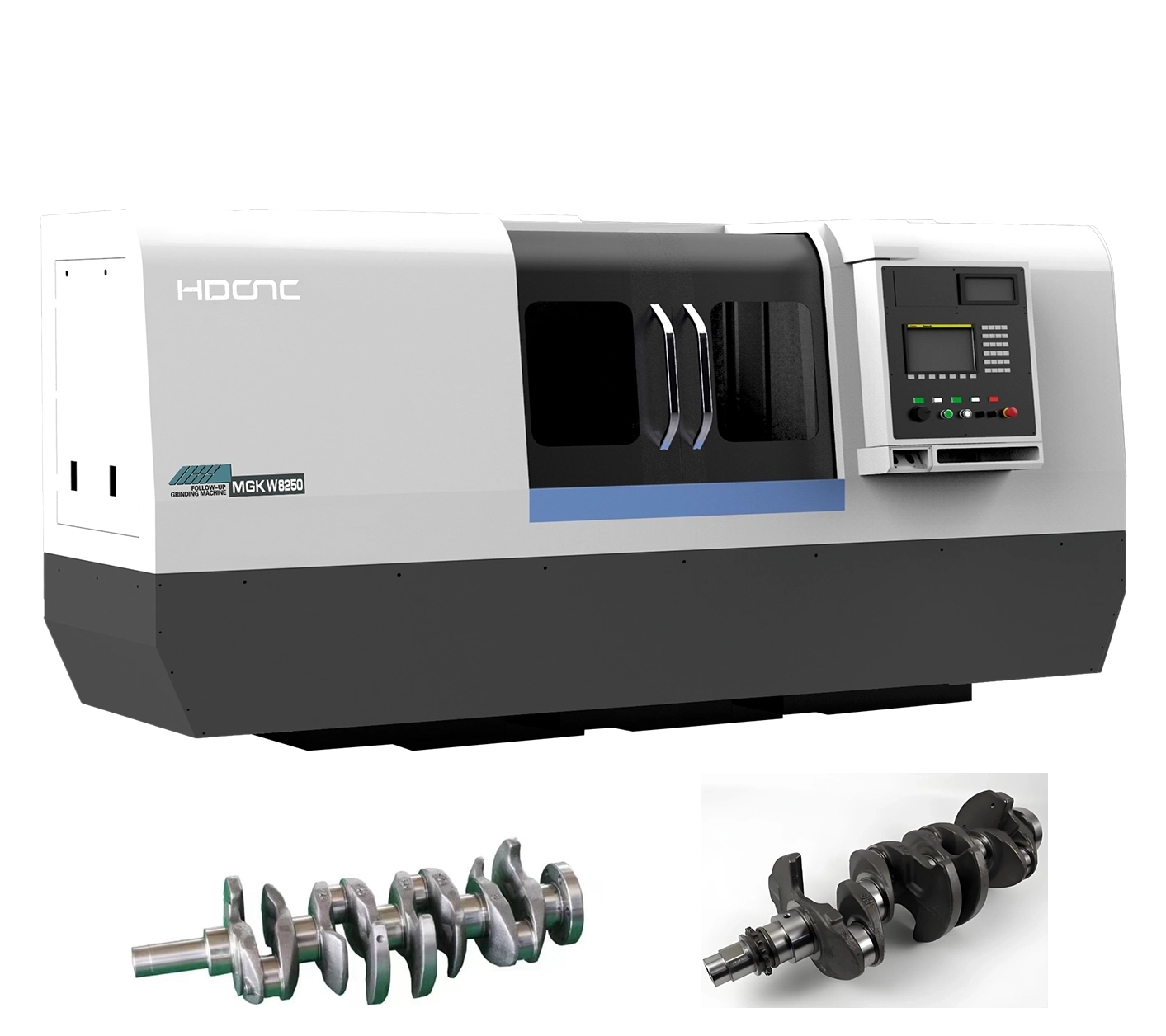

This machine tool is a five axis three linkage precision CNC follow-up crankshaft cylindrical grinding machine. The control system design uses advanced and reliable devices as the machine tool control platform, with built-in follow-up grinding function modules, user-friendly human-machine interface, and complete equipment fault alarm and diagnostic functions.
The CNC system controls the movement of the X-axis (transverse feed axis of the grinding wheel) and Z-axis (longitudinal feed axis of the grinding wheel), as well as the C1 axis movement of the workpiece rotation grinding feed, and can achieve the linkage of the X and C1 axes. For large-scale crankshaft follow-up grinding, C1 and C2 (tailstock spindle, special attachment) linkage can be achieved according to the requirements of the grinding process when necessary. Equipped with PMC controller and LCD display.
The operator can set grinding parameters and edit the grinding process cycle through the display screen in a human-machine conversation, achieving automatic grinding of the machine tool. Automatic cutting in and periodic feeding can be achieved through program control, and electronic handwheel feeding can also be used.
1、Main specifications
Description | Unit | Specifications | ||
Center height | mm | 350 | ||
Distance between centers | mm | 1000、1500、2000、3000 | ||
External diameter | mm | Ø8～Ø320 | ||
Max. Rotation diameter | mm | Ø500 | ||
Maximum grinding length | mm | 1000、1500、2000、3000 | ||
Maximum loading capacity（type test） | kg | 500 | ||
Max. Swiveling angle of table | clockwise | ° | 2° | |
Anticlockwise | 3° | |||
Max. Dimension of wheel | mm | CBN wheel：750×40×305 | ||
Wheel peripheral velocity | m/s | ≤80 | ||
Possible rotation of the grinding wheel shell | Non rotatable | |||
Workhead taper | MT#6 | |||
Workhead speed | rpm | 50HZ：0～200 | ||
Possible rotation of the workhead spindle | Rotatable | |||
Workhead spindle drive mode | DDR direct-drive | |||
Possible rotation of the workhead shell | Non rotatable | |||
Top taper of tailstock | MT#6 | |||
Quill travel | mm | 30 | ||
Z-axis (longitudinal) driving mode | Servo drive | |||
Z-axis (longitudinal) feed stroke | mm | 1200 | ||
Z-axis (longitudinal) movement speed range | mm/min | 0～6000 | ||
Z-axis (longitudinal) minimum CNC resolution | mm | 0.001 | ||
Opened static pressure guide rail | ||||
X-axis (lateral) driving mode | DDL direct-drive | |||
X-axis (lateral) feed stroke | mm | 400 | ||
mm/min | 0～20000 | |||
X-axis (lateral) minimum CNC resolution | mm | 0.001 | ||
X-axis (lateral) closed-loop control | Standard configuration (grating ruler) | |||
X-axis (lateral) guide rail form | Closed static pressure guide rail | |||
Concentric axis roundness | mm | ≤ 0.002 | ||
Consistency of concentric axis diameter | mm | ≤ 0.003 | ||
Eccentric axis follow-up grinding for true roundness | mm | ≤ 0.003 | ||
Consistency of eccentric shaft follow-up grinding diameter | mm | ≤ 0.008 | ||
Roughness | μm | ≤ Ra0.32 | ||
Parallelism | mm | ≤ 0.015 | ||
2. Application scope

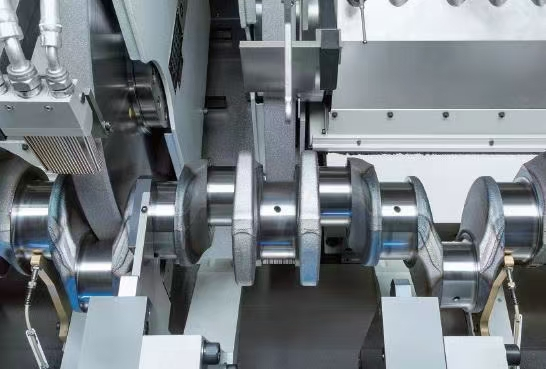

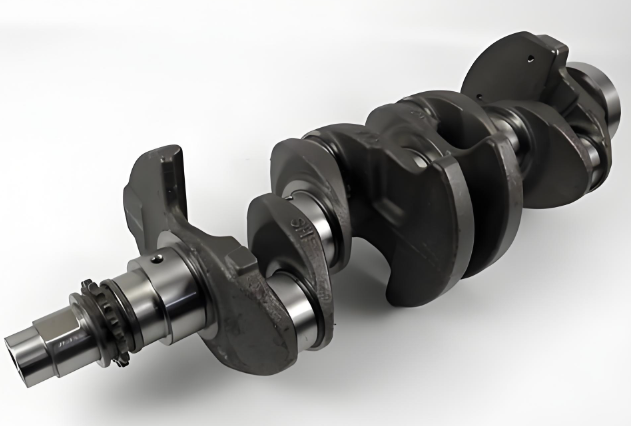

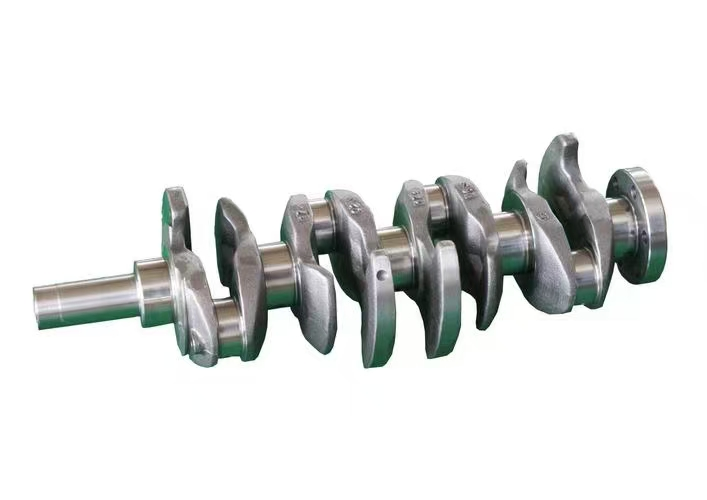

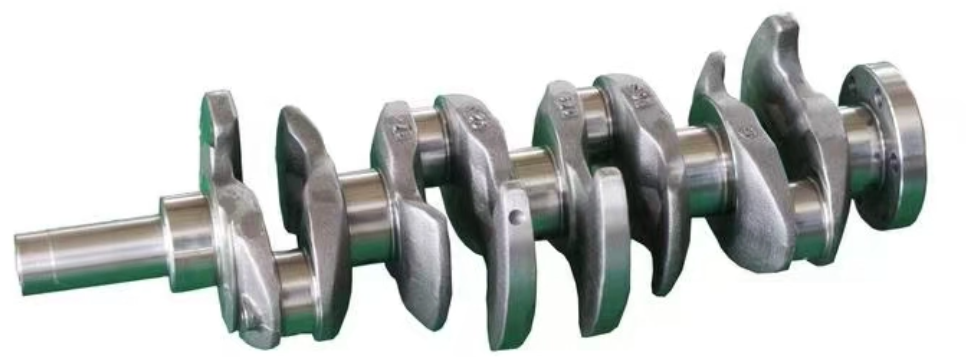

This machine tool is suitable for follow-up CNC grinding of eccentric outer circles of camshafts, crankshafts, etc. in industries such as aviation, automobiles, compressors, and shipbuilding and so on.
It can also be used for precision grinding of standard outer circles of conventional shaft parts. This machine tools are mainly used for grinding of metal materials (such as steel, cast iron, non-ferrous metals, etc.), and can also process non-metallic and other materials.
